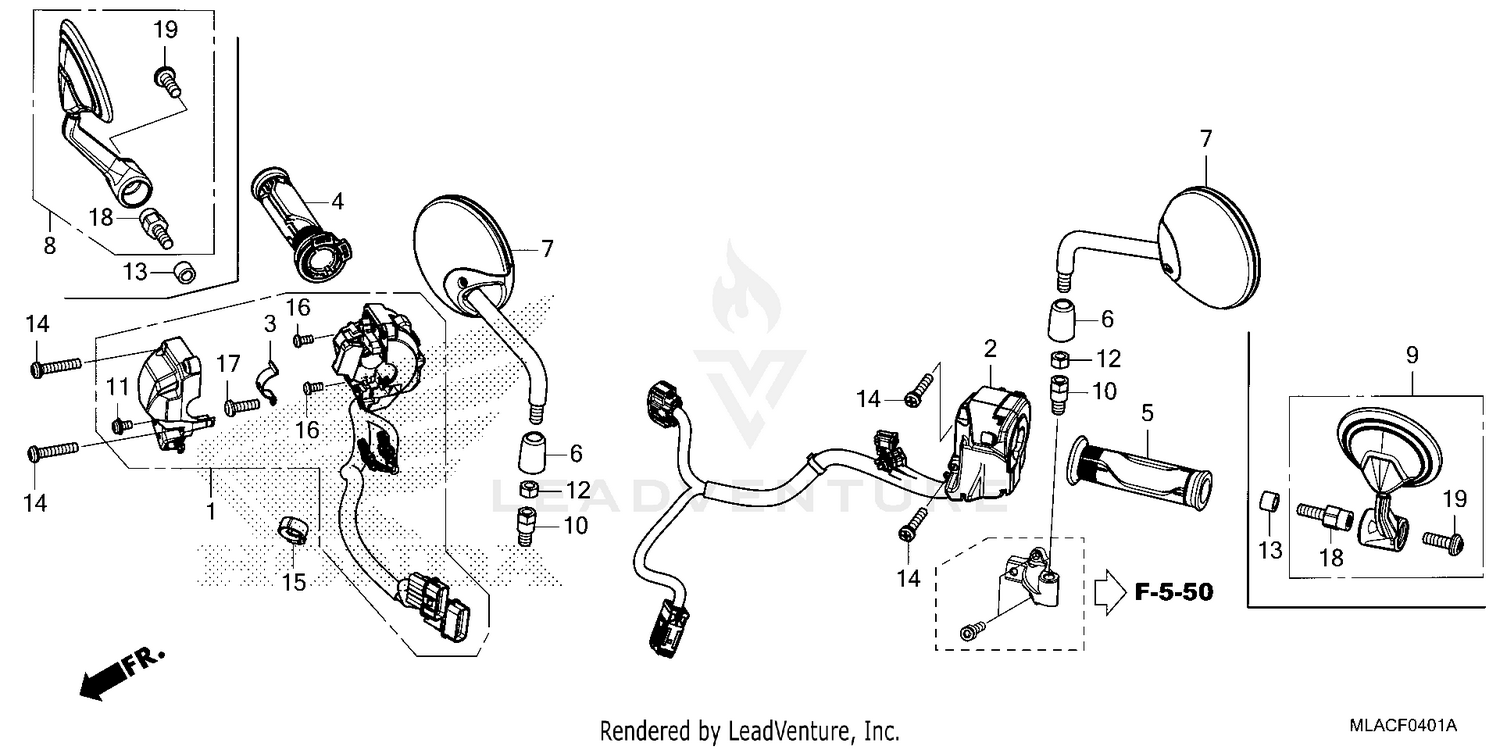

HANDLE SWITCH@MIRROR (CMX1100D/D2/D3)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35135-MLA-AF1 | SWITCH UNIT Price: $356.51 |
| 2 | 35200-MLA-AF1 | SWITCH ASSY. Price: $289.36 |
| 3 | 37971-MLA-AF0 | PLATE A, SETTING Price: $3.45 |
| 4 | 53140-MKK-D01 | GRIP ASSY., THROTTLE Price: $40.45 |
| 5 | 53166-MGE-000 | GRIP, L. HANDLE Price: $21.49 |
| 8 | 88210-MLA-AH0 | MIRROR, R. Price: $149.31 |
| 9 | 88220-MLA-AH0 | MIRROR, L. Price: $149.31 |
| 11 | 90110-MKS-E20 | SCREW-WASHER (4X8) Price: $1.65 |
| 13 | 90507-MLA-AH0 | COLOR Price: $5.60 |
| 14 | 90508-MGE-D00 | SCREW-WASHER (5X25) Price: $1.47 |
| 15 | 90683-KJ2-003 | CLIP, WIRE HARNESS Price: $4.47 |
| 16 | 93892-04008-08 | SCREW-WASHER (4X8) Price: $1.20 |
| 17 | 93892-05008-08 | SCREW-WASHER (5X8) Price: $1.10 |
| 18 | 90116-MLA-AH1 | BOLT, ADAPTER (10MM) Price: $6.64 |
