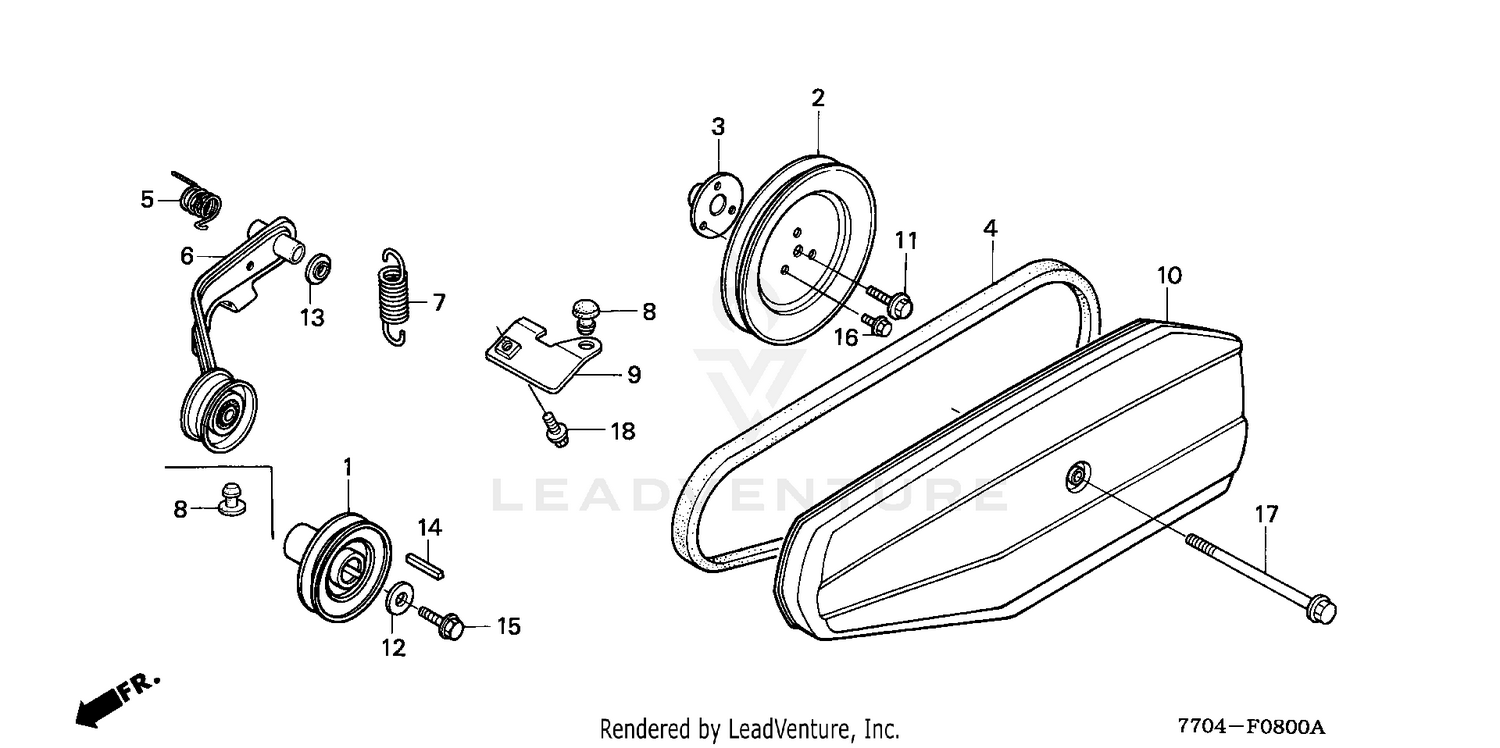

| Ref | Part Number | Description |
|---|
| 1 |
22411-734-700 |
PULLEY, DRIVE (80MM) Price: $50.84 |
| 2 |
22415-733-000 |
PULLEY, DRIVEN (156MM) Price: $48.84 |
| 3 |
22426-733-000 |
BOSS, DRIVEN PULLEY Price: $13.18 |
| 4 |
22431-734-013 |
V-BELT (40) Price: $43.46 |
| 5 |
22512-734-800 |
SPRING, TENSION ARM RETURN Price: $5.78 |
| 6 |
22520-734-000 |
ARM, TENSION Price: $61.92 |
| 7 |
22531-734-630 |
SPRING, BELT TENSIONER Price: $6.50 |
| 8 |
61112-727-000 |
RUBBER, TENSIONER ARM Price: $4.00 |
| 9 |
61112-770-000 |
STOPPER, TENSIONER ARM Price: $10.84 |
| 10 |
63610-734-000ZD |
COVER, BELT *R280* (POWER RED) Price: $86.66 |
| 11 |
90101-733-000 |
BOLT, FLANGE (8X18) Price: $4.36 |
| 12 |
90428-844-650 |
WASHER (8MM) Price: $4.70 |
| 13 |
90563-045-000 |
WASHER, NUMBER BRACKET MOUNTING Price: $4.30 |
| 14 |
90746-835-000 |
KEY (5X5X33) (Honda Code 0205963). Price: $9.30 |
| 15 |
95701-08025-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325). Price: $2.24 |
| 16 |
95701-06010-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876). Price: $1.58 |
| 17 |
95701-06075-00 |
BOLT, FLANGE (6X75) Price: $2.88 |
