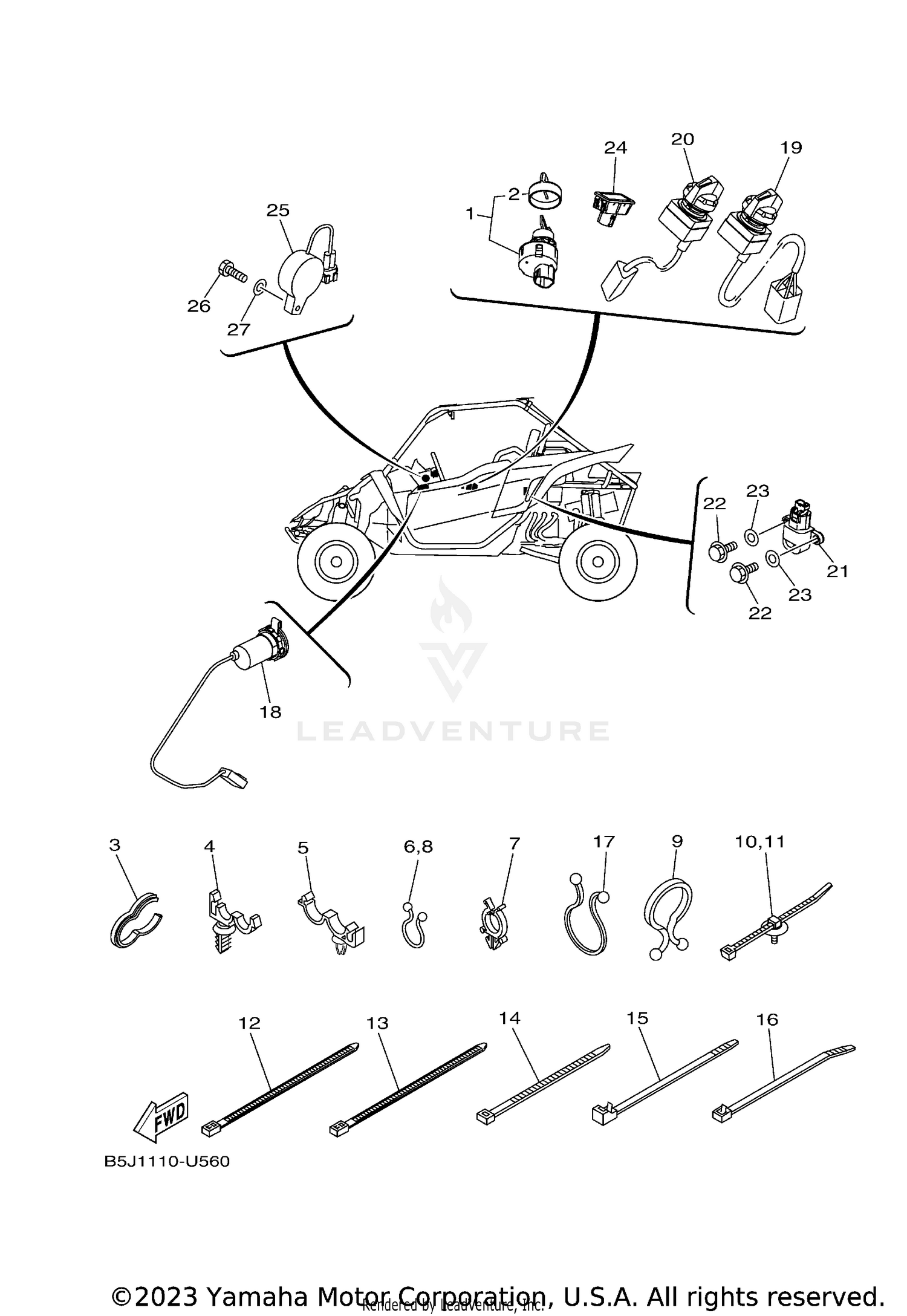

ELECTRICAL 3
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1XD-H2510-11-00 | MAIN SWITCH ASSY This part replaces 5UG-H2510-00-00. Price: $35.99 |
| 2 | 5UG-H2579-00-00 | CAP, KEY Price: $10.99 |
| 3 | 90464-15065-00 | CLAMP Price: $8.49 |
| 5 | 90464-20010-00 | CLAMP Price: $3.50 |
| 6 | 90464-14800-00 | CLAMP Price: $3.70 |
| 7 | 90464-25826-00 | CLAMP Price: $3.05 |
| 8 | 90464-30040-00 | CLAMP Price: $9.49 |
| 9 | 90464-37257-00 | CLAMP Price: $2.40 |
| 10 | 5B4-F1338-00-00 | CLAMP Price: $3.60 |
| 11 | 1NS-F1338-00-00 | CLAMP Price: $3.60 |
| 13 | 90464-40825-00 | CLAMP Price: $3.05 |
| 14 | 90464-48800-00 | CLAMP Price: $4.90 |
| 16 | 90464-76800-00 | CLAMP Price: $6.49 |
| 17 | 90464-25267-00 | CLAMP Price: $8.49 |
| 18 | 1HP-H254B-10-00 | TERMINAL COMP. Price: $20.99 |
| 19 | 2HC-82526-01-00 | SWITCH, LAMP This part replaces 2HC-82526-00-00. Price: $90.99 |
| 20 | 2HC-87280-01-00 | SWITCH, SELECT This part replaces 2HC-87280-00-00. Price: $84.99 |
| 21 | 3B4-82576-10-00 | SENSOR, LEAN ANGLE Price: $64.99 |
| 22 | 97095-05016-00 | BOLT This part replaces 97002-05016-00. Price: $1.75 |
| 23 | 92990-05600-00 | WASHER, PLATE This part replaces 92902-05600-00. Price: $0.80 |
| 24 | 1XD-H3530-00-00 | PILOT LIGHT ASSY Price: $32.99 |
| 25 | 2MB-83383-00-00 | BUZZER Price: $74.99 |
| 26 | 97027-05020-00 | BOLT This part replaces 97002-05020-00. Price: $3.55 |
