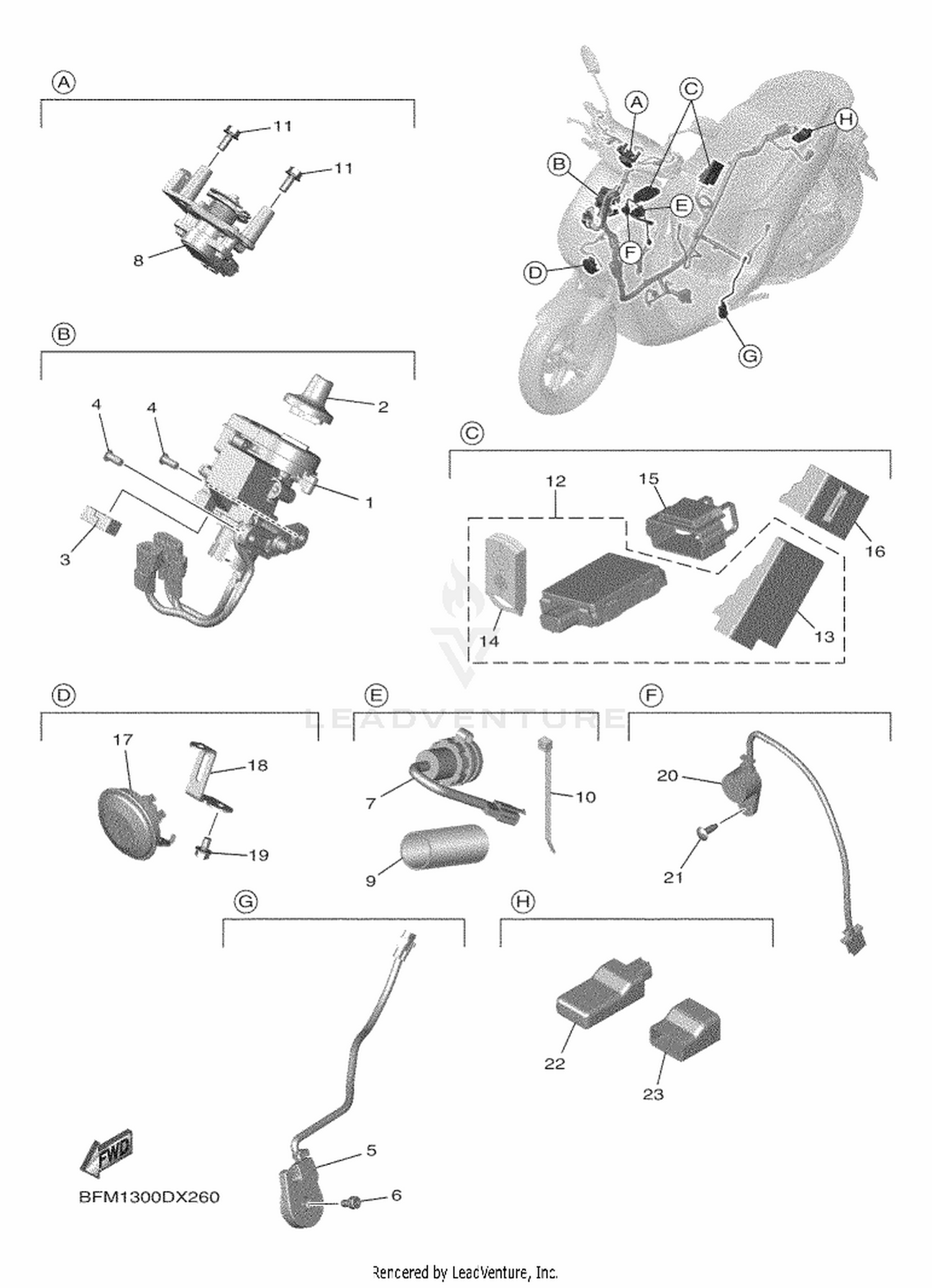

26 ELECTRICAL 1
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BFM-H2501-00 | MAIN SWITCH STEERING LOCK Price: Call Us |
| 2 | B8A-H276E-00 | KNOB COMP. Price: Call Us |
| 3 | 90464-09806 | CLAMP Price: Call Us |
| 4 | 90111-06162 | BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 5 | BFM-H2566-00 | SWITCH, SIDE STAND Price: Call Us |
| 6 | 90110-06881 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 7 | BB8-H254B-00 | TERMINAL COMP. Price: Call Us |
| 8 | BFM-H5885-00 | THROTTLE SENSOR ASSY Price: Call Us |
| 9 | BFM-H1614-00 | PROTECTOR Price: Call Us |
| 10 | 90464-36800 | CLAMP Price: Call Us |
| 11 | 95802-06014 | BOLT, FLANGE Price: Call Us |
| 12 | BFM-WH62A-04 | REMOTE CONTROL UNIT KIT Price: Call Us |
| 15 | B4U-H5546-00 | BAND Price: Call Us |
| 16 | BFM-H7229-00 | BAND Price: Call Us |
| 17 | B4U-H3371-00 | HORN Price: Call Us |
| 18 | BFM-H2581-00 | STAY, CORD CLAMP Price: Call Us |
| 19 | 95D02-06010 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 20 | BFM-H3383-00 | BUZZER Price: Call Us |
| 21 | 97707-50016 | SCREW, TRUSS HEAD TAPPING Price: Call Us |
| 22 | BFM-H5810-01 | COMMUNICATION CONT. UNIT ASSY Price: Call Us |
