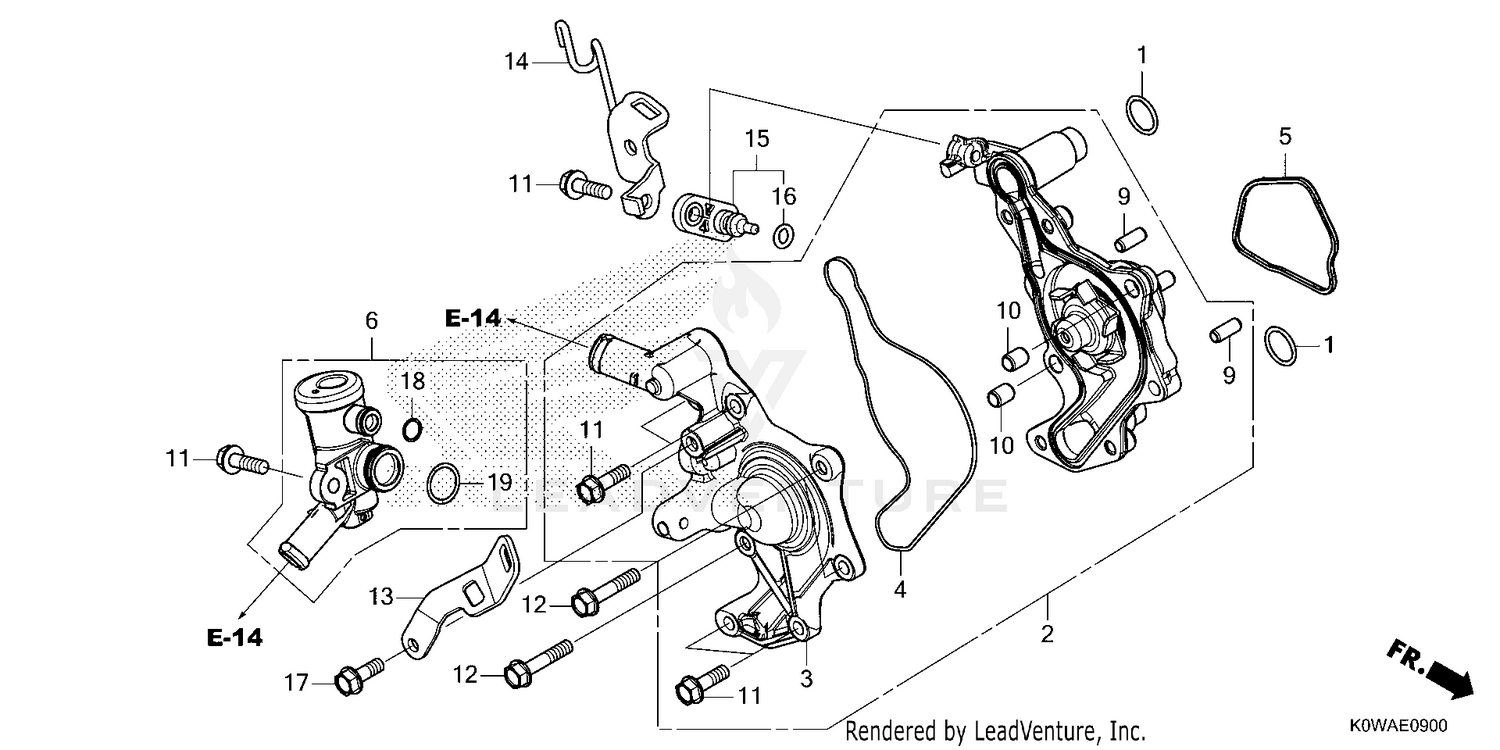

| Ref | Part Number | Description |
|---|
| 1 |
12207-KWN-900 |
O-RING (15.4X2) Price: $1.20 |
| 2 |
19200-K1N-V00 |
WATER PUMP ASSY. Price: $48.31 |
| 3 |
19221-K1N-V00 |
COVER, WATER PUMP Price: $12.27 |
| 4 |
19226-K0R-V00 |
GASKET, WATER PUMP COVER Price: $1.51 |
| 5 |
19227-K0R-V01 |
GASKET, WATER PUMP BODY Price: $0.73 |
| 6 |
19300-K1N-V01 |
THERMOSTAT ASSY. Price: $27.47 |
| 9 |
90702-MG8-000 |
PIN, DOWEL (6X15) Price: $3.73 |
| 10 |
94301-08100 |
PIN A, DOWEL (8X10) Price: $2.35 |
| 11 |
95701-06020-00 |
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) Price: $1.85 |
| 12 |
95701-06030-00 |
BOLT, FLANGE (6X30) Price: $1.97 |
| 13 |
32115-K1Z-J10 |
STAY, ENGINE SUB-HARNESS Price: $1.15 |
| 14 |
32963-K0W-NA0 |
STAY, ENG HARNESS Price: $2.82 |
| 15 |
37870-K0R-V01 |
SENSOR, WATER TEMP Price: $5.35 |
| 16 |
91304-K0R-V00 |
O-RING (6.3X2.5) Price: $0.98 |
| 17 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 18 |
19381-K1N-V01 |
O-RING (10.2X1.5) Price: $0.93 |
