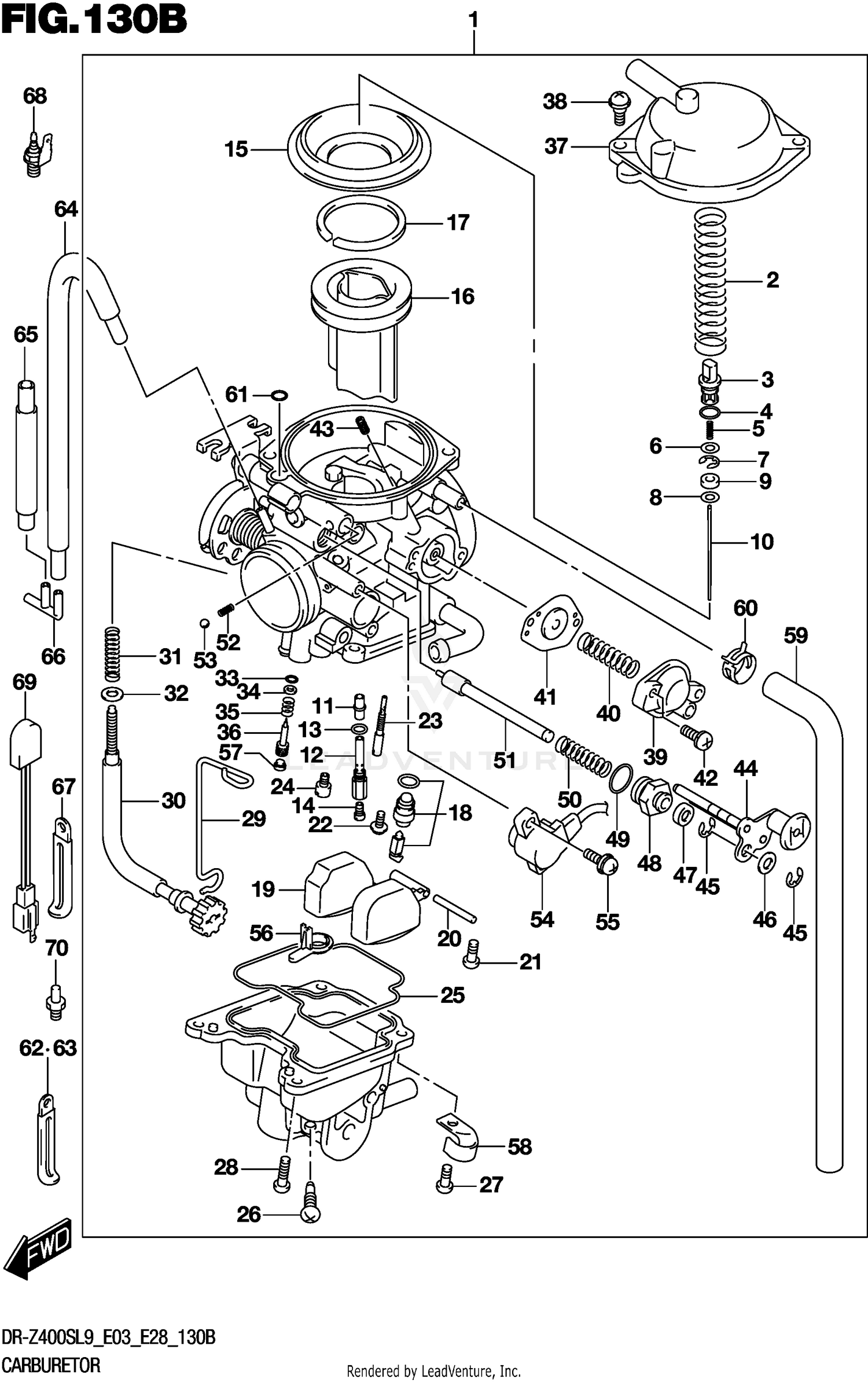

CARBURETOR (DR-Z400SL9 E28)
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13200-29FR0 | CARBURETOR ASSY Price: $848.77 |
| 4 | 09280-05004 | O-RING (D:1.9,ID:4.8) Price: $2.45 |
| 14 | 09491-28011 | JET, MAIN (140) This part replaces 09491-28017. Price: $18.92 |
| 26 | 13247-02340 | SCREW, DRAIN This part replaces 13247-13A00. Price: $6.16 |
| 33 | 13295-29901 | O-RING This part replaces 13295-29900. Price: $5.36 |
| 35 | 13268-48700 | SPRING,THROTTLE SCREW Price: $5.36 |
| 62 | 13682-29F00 | HOSE VACUUM Price: $11.07 |
| 63 | 13683-29F10 | HOSE Price: $5.82 |
| 64 | 09367-04009 | JOINT Price: $4.99 |
| 65 | 09404-08422 | CLAMP (L:80) This part replaces 09404-08419. Price: $2.79 |
| 66 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 67 | 09404-08420 | CLAMP (L:120 T:1.0) Price: $3.91 |
