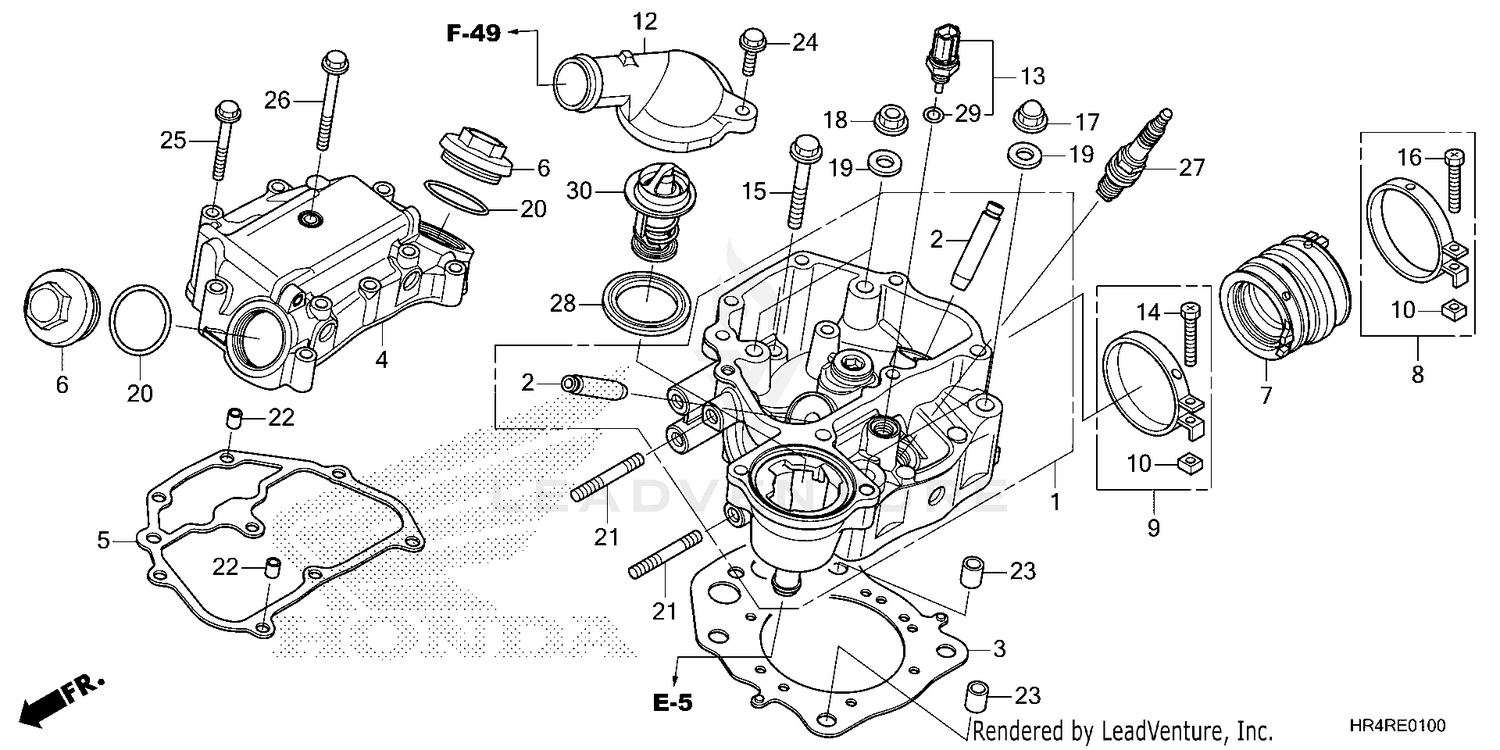

| Ref | Part Number | Description |
|---|
| 1 |
12200-HR6-B00 |
CYLINDER HEAD Price: $768.80 |
| 2 |
12204-HP7-305 |
GUIDE, VALVE (OVER SIZE) Price: $42.95 |
| 3 |
12251-HR6-B01 |
GASKET, CYLINDER HEAD Price: $26.75 |
| 4 |
12310-HP5-L10 |
COVER, CYLINDER HEAD Price: $378.55 |
| 5 |
12315-HR0-F01 |
GASKET, HEAD COVER Price: $23.64 |
| 6 |
12361-HP5-600 |
CAP, TAPPET ADJUSTING HOLE Price: $22.42 |
| 7 |
16211-HR4-A40 |
INSULATOR, THROTTLE BODY Price: $17.13 |
| 8 |
16217-MBW-J20 |
BAND, INSULATOR Price: $5.13 |
| 9 |
16217-MEG-000 |
BAND, INSULATOR Price: $5.13 |
| 10 |
16222-MV4-300 |
NUT, SQUARE (5MM) (GQ51B C) Price: $2.45 |
| 12 |
19321-HP5-L10 |
COVER, THERMOSTAT Price: $301.92 |
| 13 |
37870-KZR-601 |
SENSOR ASSY., WATER TEMPERATURE Price: $10.75 |
| 14 |
90005-MM4-000 |
BOLT, RECESSED (5X32) Price: $1.22 |
| 16 |
90023-MM5-000 |
BOLT, RECESSED (5X28) (GQ51B C) Price: $3.60 |
| 17 |
90201-HA0-000 |
NUT, FLANGE CAP (10MM) Price: $8.09 |
| 19 |
90465-MM9-000 |
WASHER (10MM) Price: $4.45 |
| 20 |
91301-428-003 |
O-RING (35.5X3) (NOK) Price: $2.53 |
| 21 |
92900-08025-0B |
BOLT, STUD (8X25) Price: $2.30 |
| 22 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 23 |
94301-12160 |
PIN A, DOWEL (12X16) Price: $2.58 |
| 24 |
95701-06020-00 |
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) Price: $1.85 |
| 25 |
95701-06050-00 |
BOLT, FLANGE (6X50) (Honda Code 2410975) Price: $2.27 |
| 26 |
95701-06065-00 |
BOLT, FLANGE (6X65) (Honda Code 2552545) Price: $1.73 |
| 27 |
98079-5514E |
SPARK PLUG (BKR5E-11) (NGK) Price: $3.47 |
| 28 |
19305-KV3-010 |
RUBBER, THERMOSTAT Price: $7.62 |
| 29 |
91307-PLC-004 |
O-RING (9.5X1.9) (PANASONIC) Price: $3.90 |
