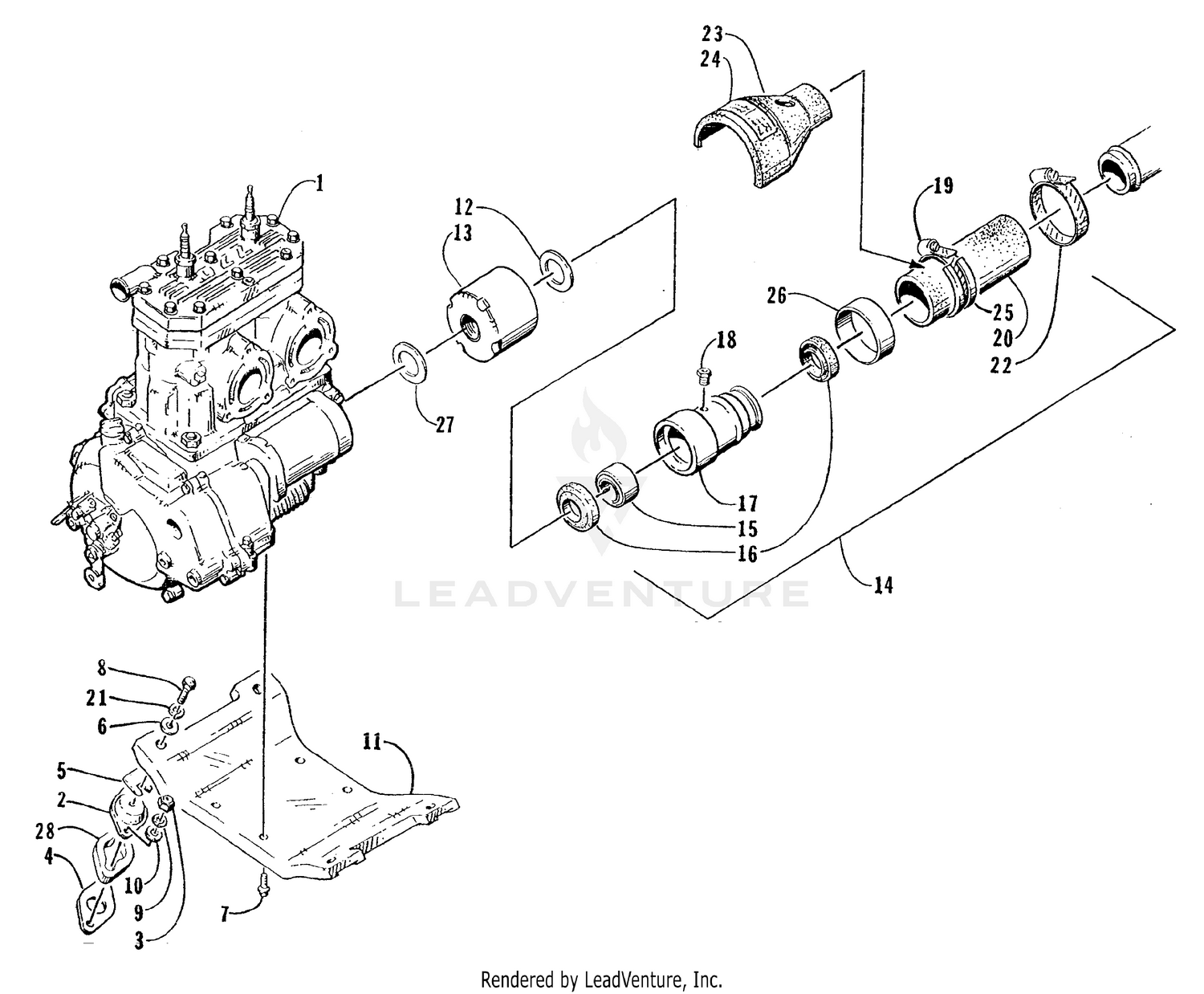

ENGINE AND RELATED ASSEMBLY [73368]

ENGINE AND RELATED ASSEMBLY [73368]

Parts (29)

RefPart NumberDescription
1 0662-156 Engine, 770 L/C (770 Illustrated) Price: $5,196.95
2 3008-054 Damper, Engine Price: $93.95
3 0624-149 Nut, Jam Price: $2.19
4 0673-508 SHIM,ENG MTG-.125 Price: $4.36
4 0673-509 Shim, Engine Munt - 0.063 in. Price: $2.30
5 0624-014 Shim - 0.5 mm Price: $1.79
5 0624-015 Shim - 1.5 mm Price: $2.09
6 0624-406 Washer Price: $2.63
7 3008-203 Screw, Cap Price: $2.79
8 3008-240 Screw, Cap Price: $12.79
9 0624-465 Washer, Lock Price: $0.26
10 0624-028 Washer Price: $0.32
11 0608-167 Plate, Engine Mount Price: $412.51
12 0624-447 Washer Price: $2.19
13 0675-174 Coupler, Engine Price: $146.29
14 0775-081 Housing, Seal - Assembly (inc. 15-18, 20, & 28) Price: $92.79
15 0675-161 Bearing Price: $18.13
16 0675-266 SEAL,DRIVESHAFT Price: $21.79
17 0675-352 Housing, Bearing - Floating Price: $34.49
18 0624-341 Fitting, Grease Price: $3.95
19 0624-037 Clamp, Hose Price: $3.99
20 0710-210 Hose, Coupler Price: $12.29
21 0624-012 Washer, Lock Price: $0.73
22 0624-390 CLAMP,HOSE- (262) 1.75/2..625 Price: $21.77
23 0675-223 GUARD,COUPLER (CLAMP ON) Price: $31.29
24 0614-429 Decal, Warning Price: $9.29
25 0775-099 Isolater, Clamp Price: $1.48
26 1673-476 Clamp, Shrink Price: $23.95
27 0624-448 Washer Price: $5.49
