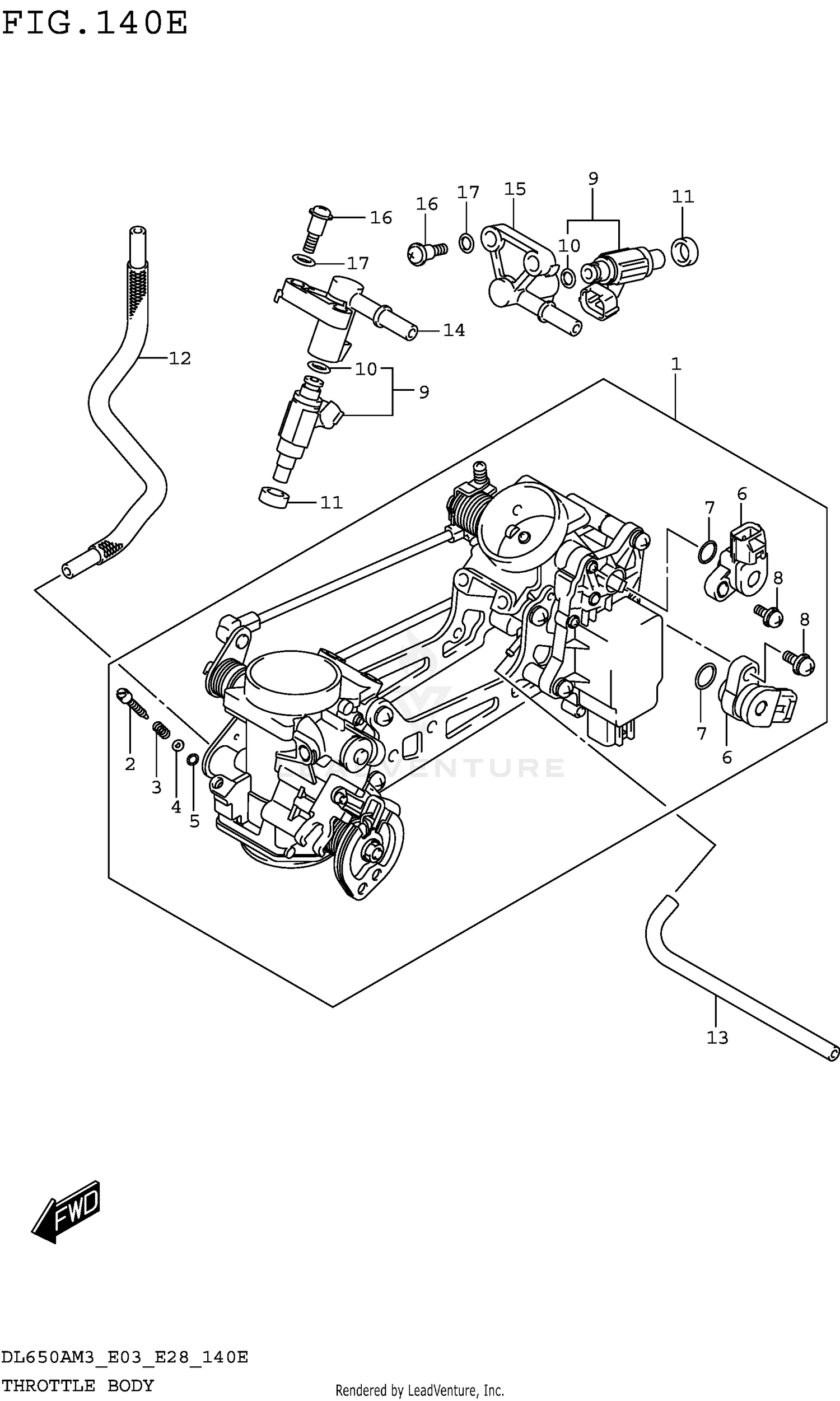

THROTTLE BODY (DL650XAM3E28)
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13405-28K00 | BODY ASSY, THROTTLE Price: $1,228.79 |
| 2 | 13269-33E00 | SCREW Price: $14.10 |
| 3 | 13268-48700 | SPRING,THROTTLE SCREW Price: $5.36 |
| 4 | 13606-47A00 | WASHER Price: $3.55 |
| 5 | 13295-29901 | O-RING Price: $5.36 |
| 9 | 15710-11J00 | INJECTOR ASSY Price: $290.55 |
| 10 | 15717-58B00 | O-RING Price: $12.30 |
| 12 | 13683-28K01 | HOSE Price: $28.14 |
| 13 | 13683-44H11 | HOSE Price: $19.67 |
| 14 | 15731-11J00 | DELIVERY PIPE Price: $168.15 |
| 15 | 15732-11J00 | DELIVERY PIPE Price: $168.15 |
| 16 | 13601-11J00 | SCREW Price: $6.09 |
