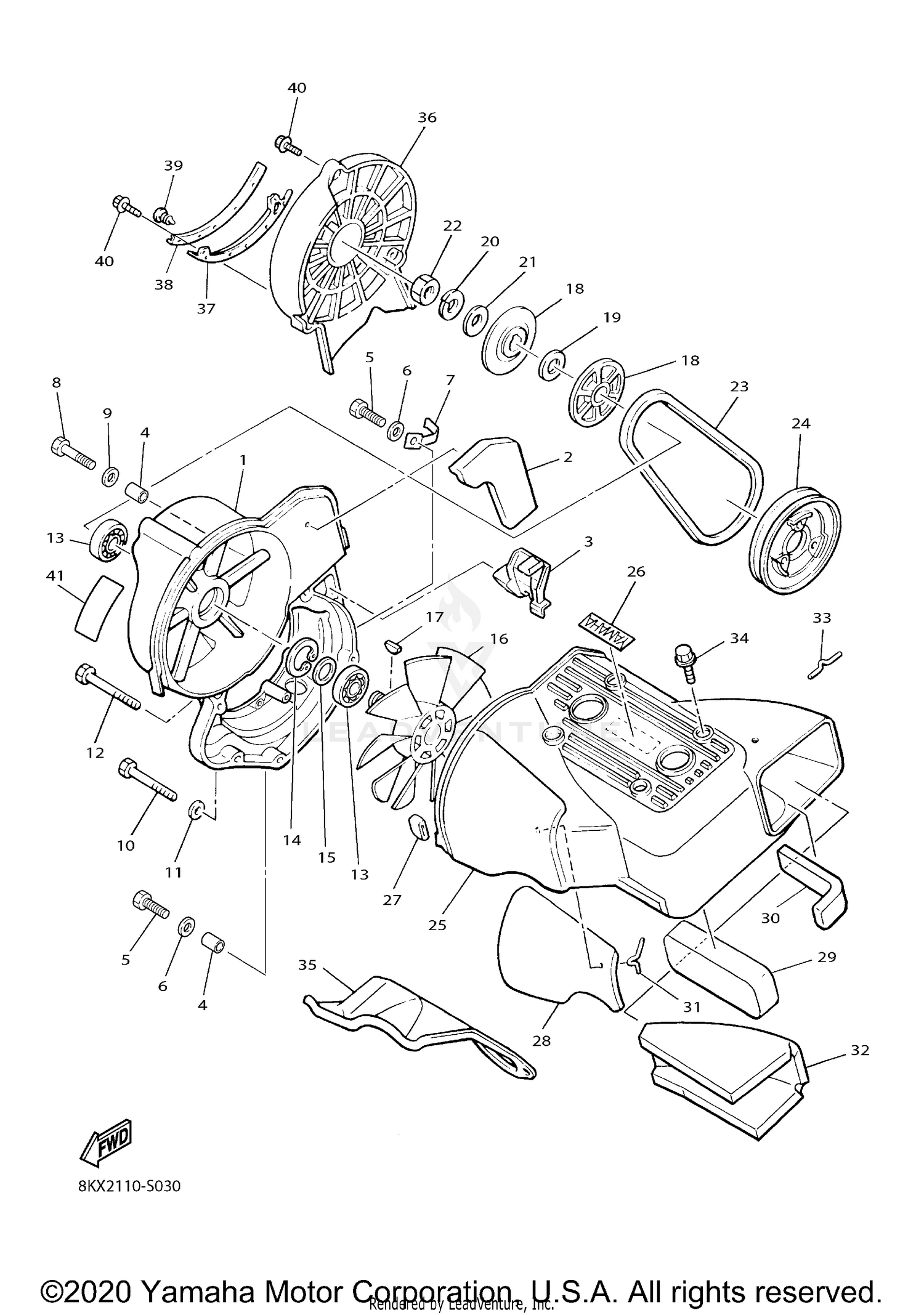

| Ref | Part Number | Description |
|---|
| 1 |
8KX-12621-00-00 |
CASE, FAN Price: $366.99 |
| 2 |
8Y0-12679-00-00 |
DAMPER, SHROUD 6 Price: $9.49 |
| 3 |
8Y0-12658-00-00 |
DAMPER, AIR SHROUD 1 Price: $43.99 |
| 4 |
99590-10114-00 |
PIN, DOWEL Price: $5.55 |
| 5 |
90101-08499-00 |
BOLT This part replaces 97027-08040-00. Price: $21.99 |
| 6 |
92907-08600-00 |
WASHER, PLATE Price: $3.25 |
| 7 |
90462-10035-00 |
CLAMP Price: $7.49 |
| 8 |
97017-08055-00 |
BOLT This part replaces 97022-08055-00. Price: $10.49 |
| 9 |
92990-08600-00 |
WASHER, PLATE This part replaces 92902-08600-00. Price: $2.70 |
| 10 |
97017-08075-00 |
BOLT(6T5) This part replaces 97027-08075-00. Price: $49.99 |
| 11 |
92907-08600-00 |
WASHER, PLATE Price: $3.25 |
| 12 |
97017-08075-00 |
BOLT(6T5) This part replaces 97027-08075-00. Price: $49.99 |
| 13 |
93306-20348-00 |
BEARING This part replaces 93306-20315-00. Price: $44.99 |
| 14 |
93420-40064-00 |
CIRCLIP This part replaces 99009-40500-00. Price: $10.49 |
| 15 |
90201-17713-00 |
WASHER, PLATE Price: $8.49 |
| 16 |
8H8-12611-01-00 |
FAN Price: $97.99 |
| 17 |
90280-05014-00 |
KEY, WOODRUFF Price: $10.49 |
| 18 |
8H8-12619-01-00 |
PULLEY 2 Price: $41.99 |
| 20 |
92907-16100-00 |
WASHER Price: $16.49 |
| 21 |
90201-17713-00 |
WASHER, PLATE Price: $8.49 |
| 22 |
90170-16425-00 |
NUT Price: $10.49 |
| 23 |
8H8-12612-00-00 |
BELT Price: $25.99 |
| 24 |
8H8-12618-01-00 |
PULLEY 1 Price: $45.99 |
| 25 |
8H8-12651-02-00 |
AIR SHROUD, CYLINDER 1 Price: $71.99 |
| 26 |
99246-00080-00 |
EMBLEM, YAMAHA Price: $22.99 |
| 27 |
8H8-12658-00-00 |
DAMPER, AIR SHROUD 1 Price: $9.49 |
| 28 |
8H8-12659-00-00 |
DAMPER, AIR SHROUD 2 Price: $5.99 |
| 29 |
8H8-12669-00-00 |
DAMPER, AIR SHROUD 4 Price: $4.45 |
| 30 |
8V8-12678-00-00 |
DAMPER, AIR SHROUD 5 Price: $7.99 |
| 31 |
91401-16025-00 |
PIN, COTTER Price: $0.20 |
| 32 |
8AT-12679-00-00 |
DAMPER, SHROUD 6 Price: $8.49 |
| 33 |
91401-16025-00 |
PIN, COTTER Price: $0.20 |
| 34 |
90119-06108-00 |
BOLT, WITH WASHER Price: $9.49 |
| 35 |
8H8-12652-00-00 |
AIR SHROUD, CYLINDER 2 Price: $44.99 |
| 36 |
8L0-12616-00-00 |
COVER, FAN CASE Price: $33.99 |
| 37 |
8Y0-12637-02-00 |
STAY 1 Price: $33.99 |
| 38 |
8Y0-12687-02-00 |
DAMPER,DUCT 4 Price: $10.49 |
| 39 |
90269-05051-00 |
RIVET Price: $0.50 |
| 40 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95802-06025-00. Price: $1.75 |
