Parts Catalog

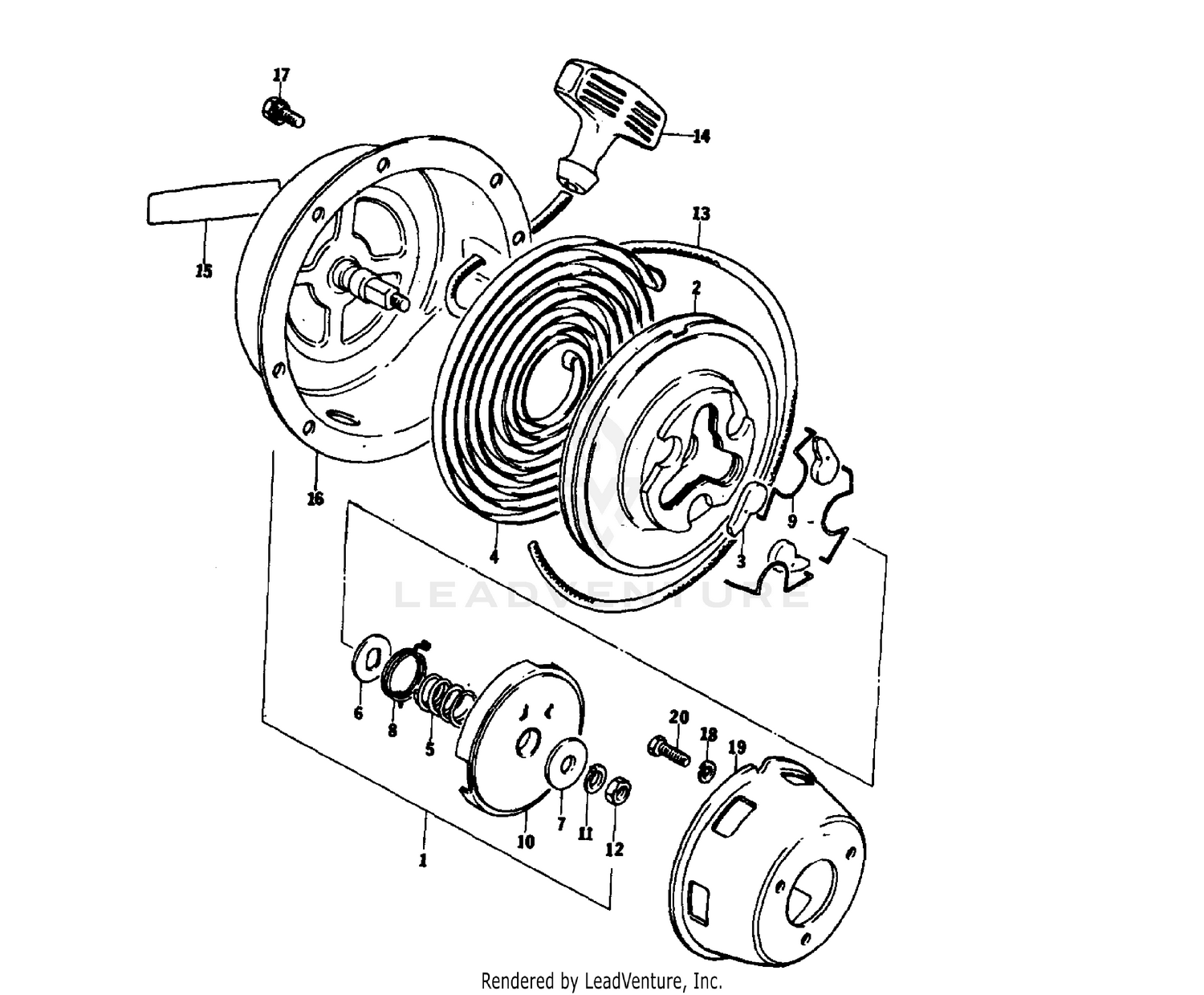

RECOIL STARTER [51602]

Parts (19)

Ref	Part Number	Description
1	3002-299	STARTER ASSY RECOILING Price: $322.95
2	3002-301	ROLLER, STARTER Price: $100.95
3	3004-730	RATCHET SET Price: $18.95
4	3001-077	Spring, Recoil Price: $36.95
5	3004-730	RATCHET SET Price: $18.95
6	3001-079	Washer Price: $3.09
7	3001-602	Washer Price: $3.46
8	3001-081	Spring, Return Price: $11.95
9	3001-083	Spring, Pawl Price: $1.16
10	3001-084	Plate, Drive Price: $14.95
11	3004-280	Washer, Lock, 8MM Price: $1.67
12	3007-416	Nut Price: $2.69
13	3006-889	Rope, Starter (6 mm Dia.) (203 cm) Price: $28.95
14	3000-864	Handle Price: $4.03
15	0611-113	DECAL,OIL TANK Price: $0.95
16	3002-610	CASE STARTER Price: $122.95
17	3000-755	BOLT,6M X 16MM Price: $0.09
18	3004-447	WASHER, LOCK 6MM Price: $3.47
19	3002-257	PULLEY,STARTER Price: $53.95
