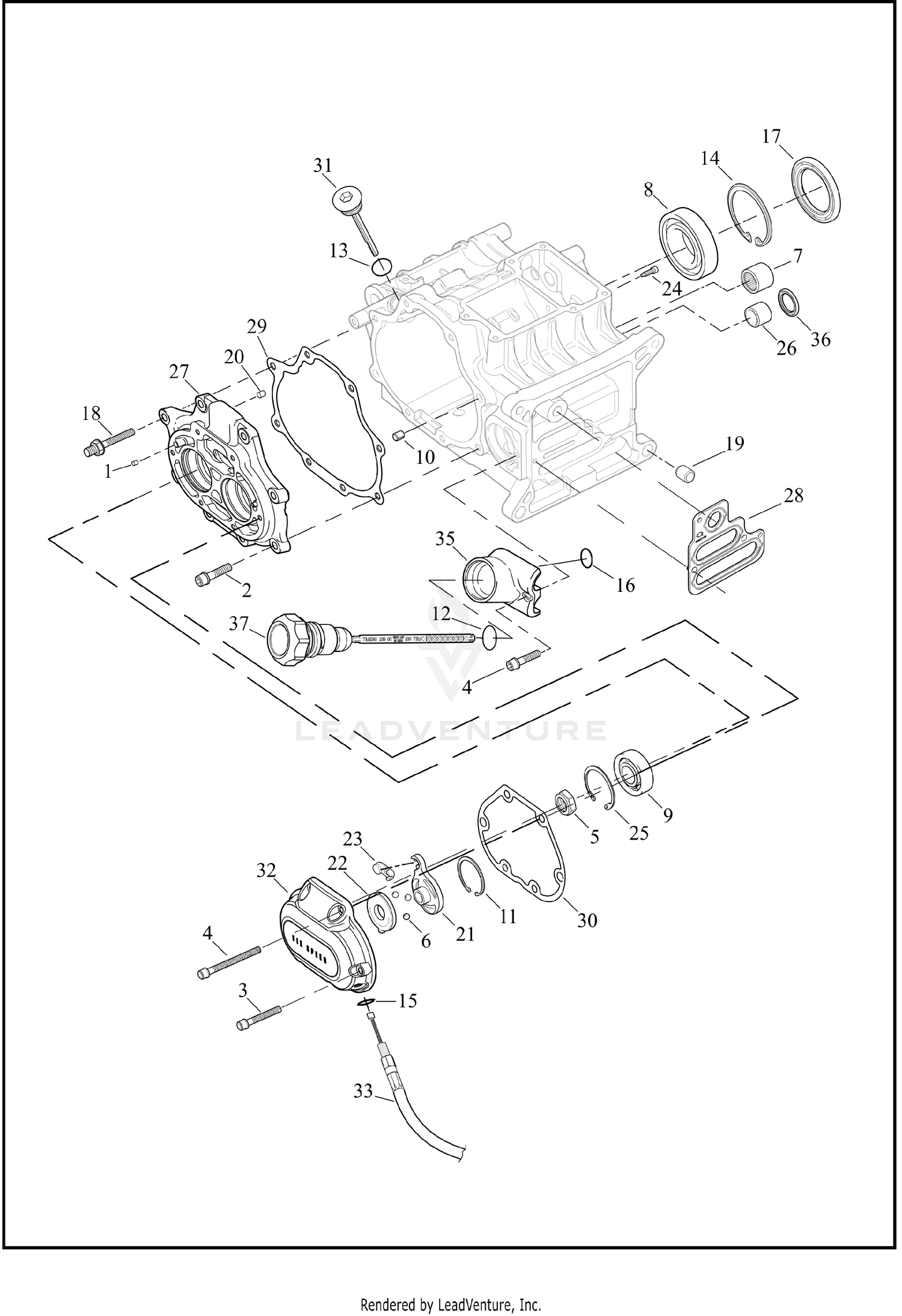

| Ref | Part Number | Description |
|---|
| 1 |
221 |
PIN,BEARING Price: $1.22 |
| 2 |
3249 |
SCREW,HEX SCKT,SEMS Price: $1.22 |
| 3 |
4718A |
SCREW,HEX SOCKET HEAD CAP, SEMS Price: $1.22 |
| 4 |
4741A |
SCREW,HEX SOCKET HEAD CAP, SEMS Price: $0.59 |
| 6 |
8873 |
HDW,MISC,X Price: $2.05 |
| 8 |
8967A |
BALL BEARING,SINGLE ROW This part replaces 8967. Price: $58.22 |
| 9 |
8970A |
BEARING,ROLL ELEM,BALL Price: $21.19 |
| 10 |
9701A |
BUSHING Price: $3.65 |
| 11 |
10998 |
RING,RETG,INTERNAL Price: $1.22 |
| 12 |
11120 |
O-RING,OIL FILL CAP Price: $14.74 |
| 14 |
11161 |
RING,RETG,X Price: $4.71 |
| 15 |
11179 |
O-RING,X Price: $1.15 |
| 16 |
11573 |
O-RING,X Price: $1.15 |
| 17 |
12074A |
SEAL,RDL SHFT,SHAFT This part replaces 12074. Price: $16.40 |
| 18 |
16708-95A |
STUD,DBL END,5/16-5/16 Price: $13.60 |
| 19 |
16574-99A |
PIN,X Price: $2.52 |
| 21 |
25604-00A |
RAMP,INNER Price: $19.90 |
| 22 |
25605-00A |
RAMP,OUTER/STATIONARY Price: $14.79 |
| 23 |
34920-86A |
CLUTCH LVR SUB-CMPNT,X Price: $8.05 |
| 25 |
35087-99A |
RING,RETG,INTERNAL Price: $2.45 |
| 26 |
35186-06A |
INT SHFTR MECH CMPNT,SLEEVE,PIVOT SHAFT This part replaces 35186-06. Price: $2.43 |
| 28 |
35607-06 |
GASKET,TRANS CASE-TO-CCASE Price: $21.31 |
| 36 |
11000101A |
SEAL,RDL SHFT,SHAFT This part replaces 11000101. Price: $6.11 |
