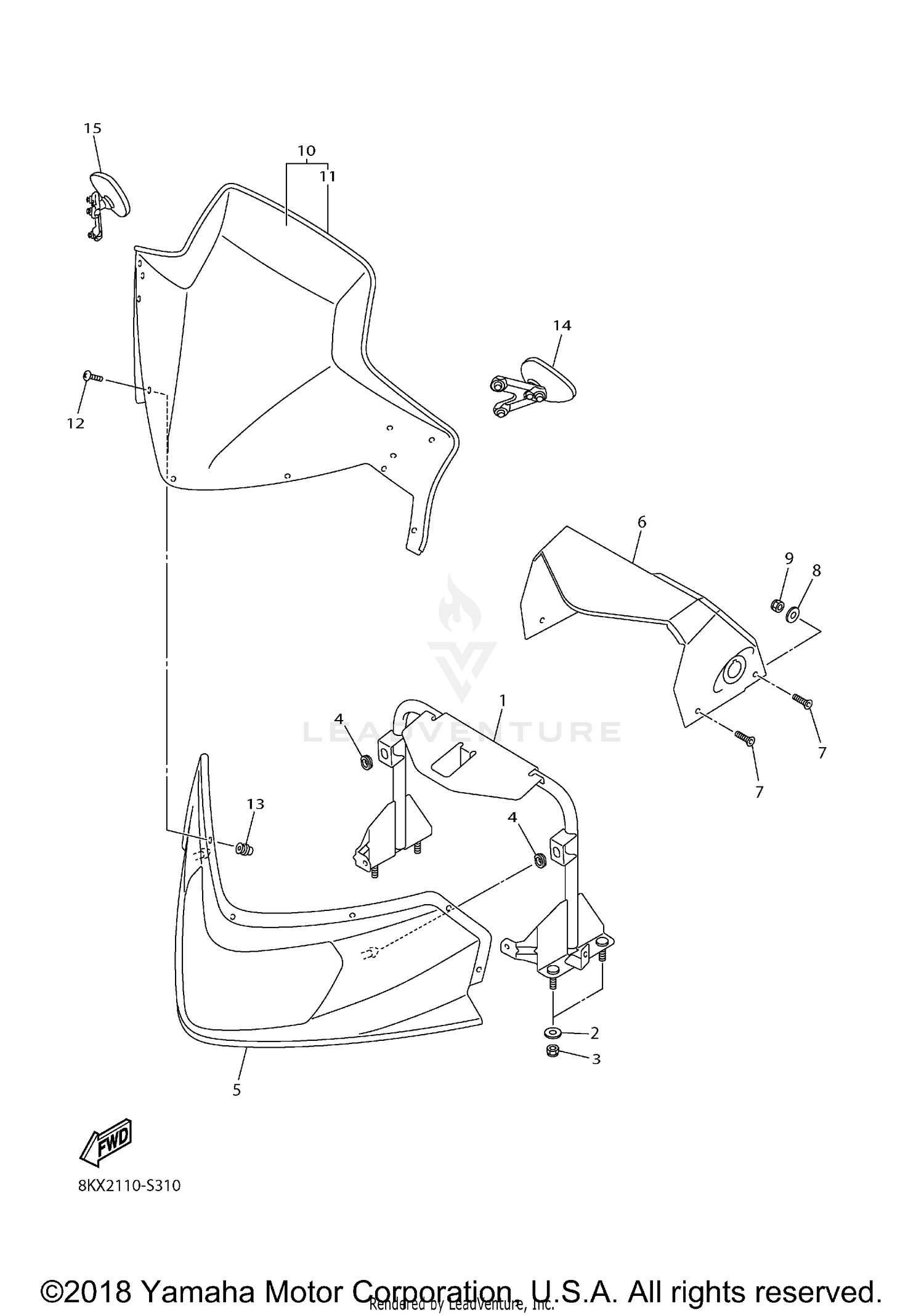

WINDSHIELD
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8KX-77241-00-00 | STAY, FAIRING Price: $118.99 |
| 2 | 90201-06078-00 | WASHER, PLATE Price: $6.49 |
| 3 | 95707-06300-00 | NUT, NYLON This part replaces 95702-06300-00. Price: $3.75 |
| 4 | 90480-01558-00 | GROMMET Price: $4.65 |
| 6 | 8KX-77251-00-00 | COVER, HEADLIGHT Price: $155.99 |
| 7 | 98707-05016-00 | SCREW, FLAT HEAD Price: $7.99 |
| 8 | 90201-05029-00 | WASHER, PLATE Price: $9.49 |
| 9 | 95707-05300-00 | NUT, FLANGE This part replaces 95702-05300-00. Price: $4.55 |
| 10 | 8KX-K7210-01-00 | WINDSHIELD COMP. Price: $118.99 |
| 11 | 8KX-K7213-00-00 | TRIM, UPPER Price: Call Us |
| 12 | 90150-05024-00 | SCREW, ROUND HEAD Price: $3.35 |
| 13 | 90179-05523-00 | NUT Price: $7.49 |
| 14 | 8KW-26280-00-00 | REAR VIEW MIRROR ASSY (LEFT) Price: $114.99 |
