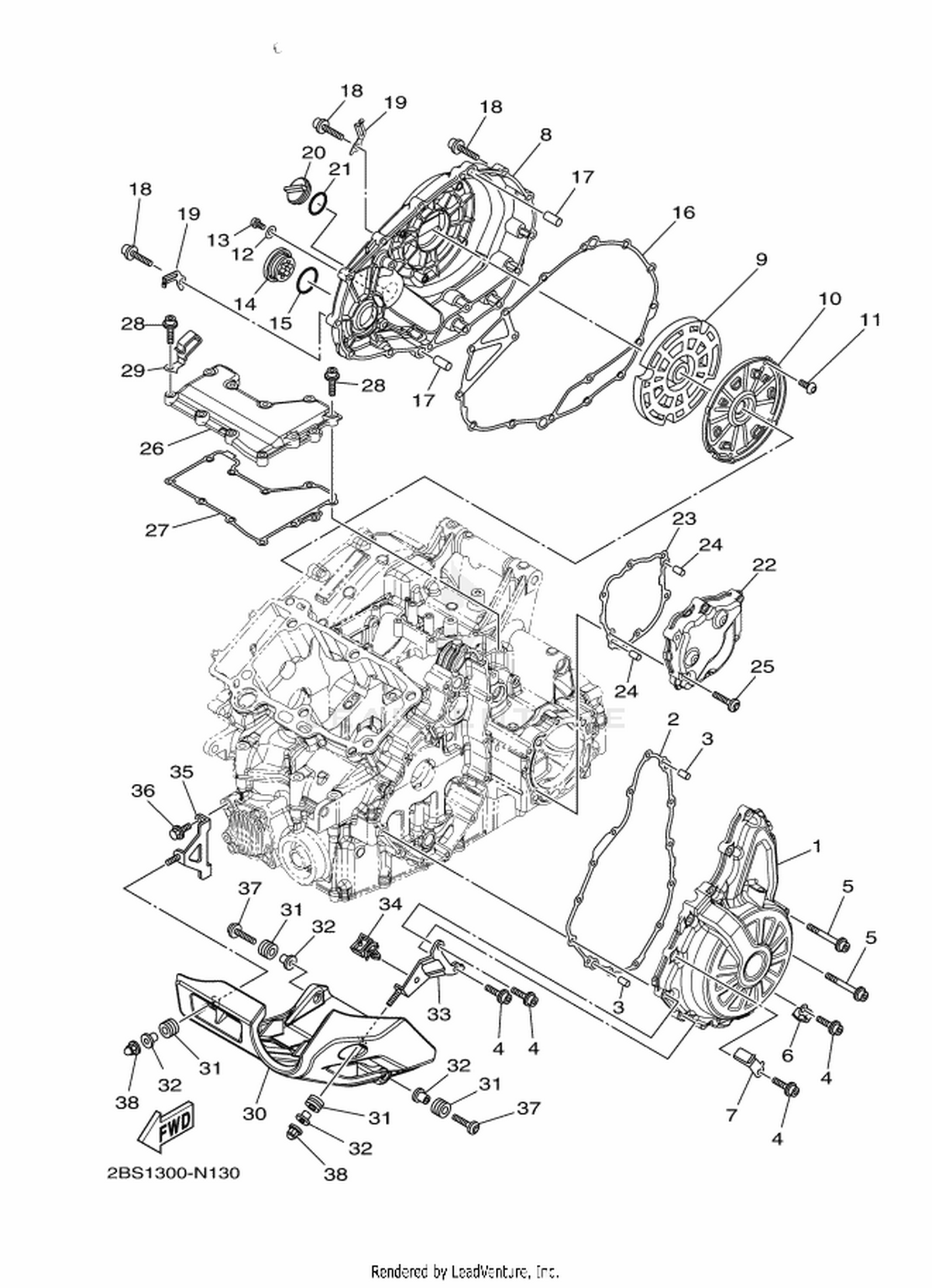

| Ref | Part Number | Description |
|---|
| 1 |
23P-15411-00 |
COVER, CRANKCASE 1 Price: Call Us |
| 2 |
23P-15451-00 |
GASKET, CRANKCASE COVER 1 Price: Call Us |
| 3 |
99530-08012 |
PIN, DOWEL Price: Call Us |
| 4 |
90110-06387 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 5 |
90110-06375 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 6 |
90462-08089 |
CLAMP Price: Call Us |
| 7 |
23P-15199-00 |
BRACKET Price: Call Us |
| 8 |
23P-15421-01 |
COVER, CRANKCASE 2 Price: Call Us |
| 9 |
23P-15316-00 |
DAMPER 1 Price: Call Us |
| 10 |
23P-15492-00 |
COVER Price: Call Us |
| 11 |
90149-06158 |
SCREW Price: Call Us |
| 12 |
90430-08143 |
GASKET Price: Call Us |
| 13 |
90111-08075 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 14 |
90340-32004 |
PLUG, STRAIGHT SCREW Price: Call Us |
| 15 |
93210-32172 |
O-RING Price: Call Us |
| 16 |
23P-15461-00 |
GASKET, CRANKCASE COVER 2 Price: Call Us |
| 17 |
93610-20189 |
PIN, DOWEL Price: Call Us |
| 18 |
90110-06388 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 19 |
90465-08062 |
CLAMP Price: Call Us |
| 20 |
3F9-15362-10 |
PLUG, OIL LEVEL Price: Call Us |
| 21 |
93210-27370 |
O-RING Price: Call Us |
| 22 |
23P-15431-10 |
COVER, CRANKCASE 3 Price: Call Us |
| 23 |
23P-15462-00 |
GASKET, CRANKCASE COVER 3 Price: Call Us |
| 24 |
99530-08012 |
PIN, DOWEL Price: Call Us |
| 25 |
90149-06185 |
SCREW Price: Call Us |
| 26 |
23P-15415-00 |
COVER, GENERATOR Price: Call Us |
| 27 |
23P-15455-00 |
GASKET 1 Price: Call Us |
| 28 |
90110-06349 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 29 |
90462-08085 |
CLAMP Price: Call Us |
| 30 |
23P-15491-00 |
PROTECTOR Price: Call Us |
| 31 |
90480-12596 |
GROMMET Price: Call Us |
| 32 |
90387-06265 |
COLLAR Price: Call Us |
| 33 |
23P-15771-00 |
STAY 1 Price: Call Us |
| 34 |
90464-23199 |
CLAMP Price: Call Us |
| 35 |
23P-15772-00 |
STAY 2 Price: Call Us |
| 36 |
90105-06066 |
BOLT, FLANGE Price: Call Us |
| 37 |
90149-06328 |
SCREW Price: Call Us |
