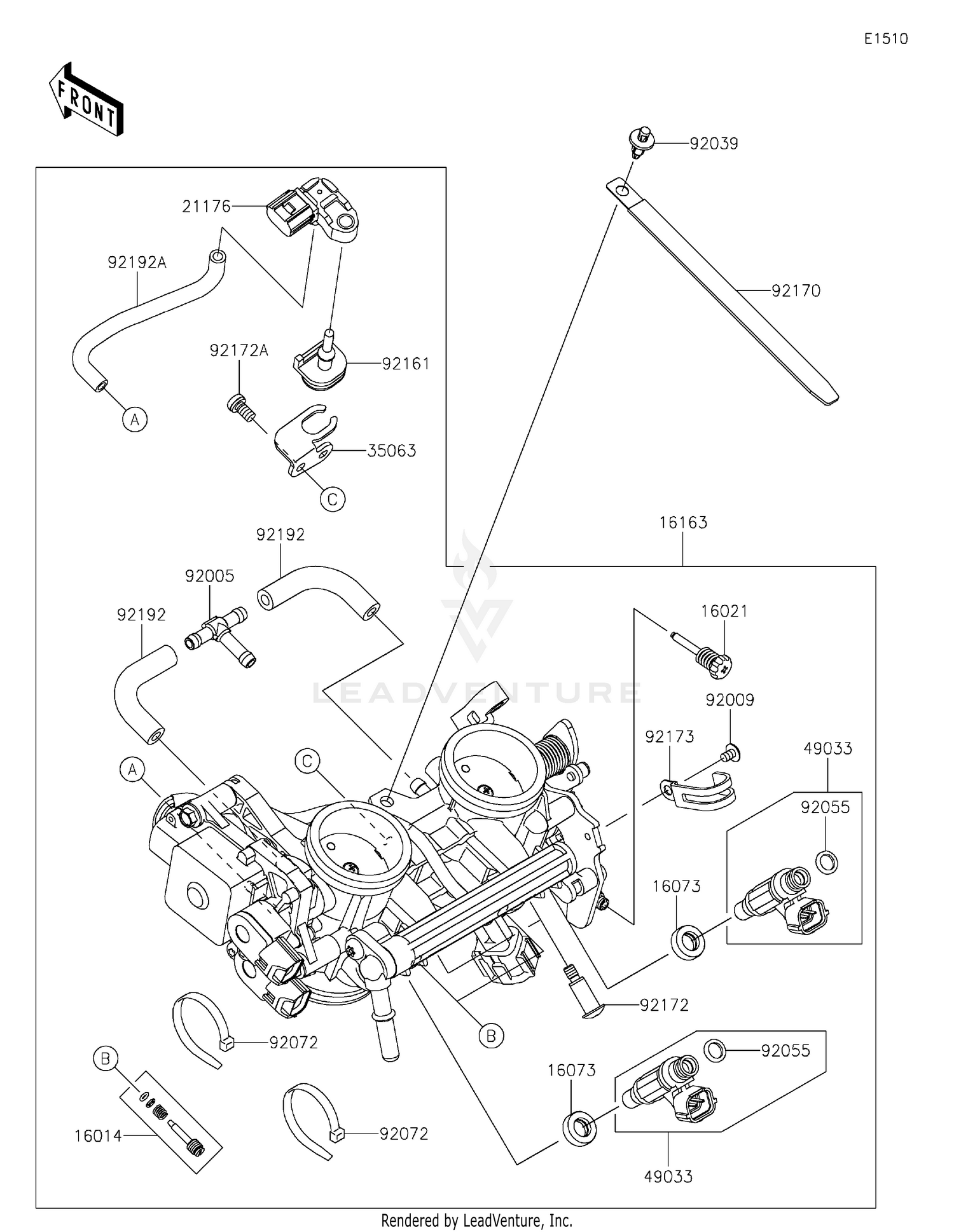

Throttle
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 16014 | 16014-0002 | SCREW-PILOT AIR Price: $25.16 |
| 16021 | 16021-0033 | SCREW-THROTTLE STOP Price: $69.57 |
| 16073 | 16073-0129 | INSULATOR Price: $6.00 |
| 16163 | 16163-1274 | THROTTLE-ASSY Price: $771.51 |
| 21176 | 21176-0906 | SENSOR,PRESSURE Price: $222.28 |
| 35063 | 35063-1528 | STAY Price: $42.07 |
| 49033 | 49033-0568 | NOZZLE-INJECTION Price: $92.32 |
| 92005 | 92005-0730 | FITTING,3WAY Price: $14.76 |
| 92009 | 92009-1860 | SCREW,CLAMP Price: $2.49 |
| 92039 | 92039-0707 | RIVET Price: $2.00 |
| 92055 | 92055-1622 | RING-O,INJECTION NOZZLE Price: $1.95 |
| 92072 | 92072-0012 | BAND,SUB-HARNESS Price: $5.00 |
| 92161 | 92161-0673 | DAMPER Price: $5.54 |
| 92170 | 92170-1114 | CLAMP,L=150 Price: $7.45 |
| 92172 | 92172-0064 | SCREW,PIPE INJECTION Price: $2.80 |
| 92172A | 92172-0393 | SCREW Price: $7.60 |
| 92173 | 92173-0288 | CLAMP Price: $6.26 |
| 92192 | 92192-1045 | TUBE Price: $6.57 |
