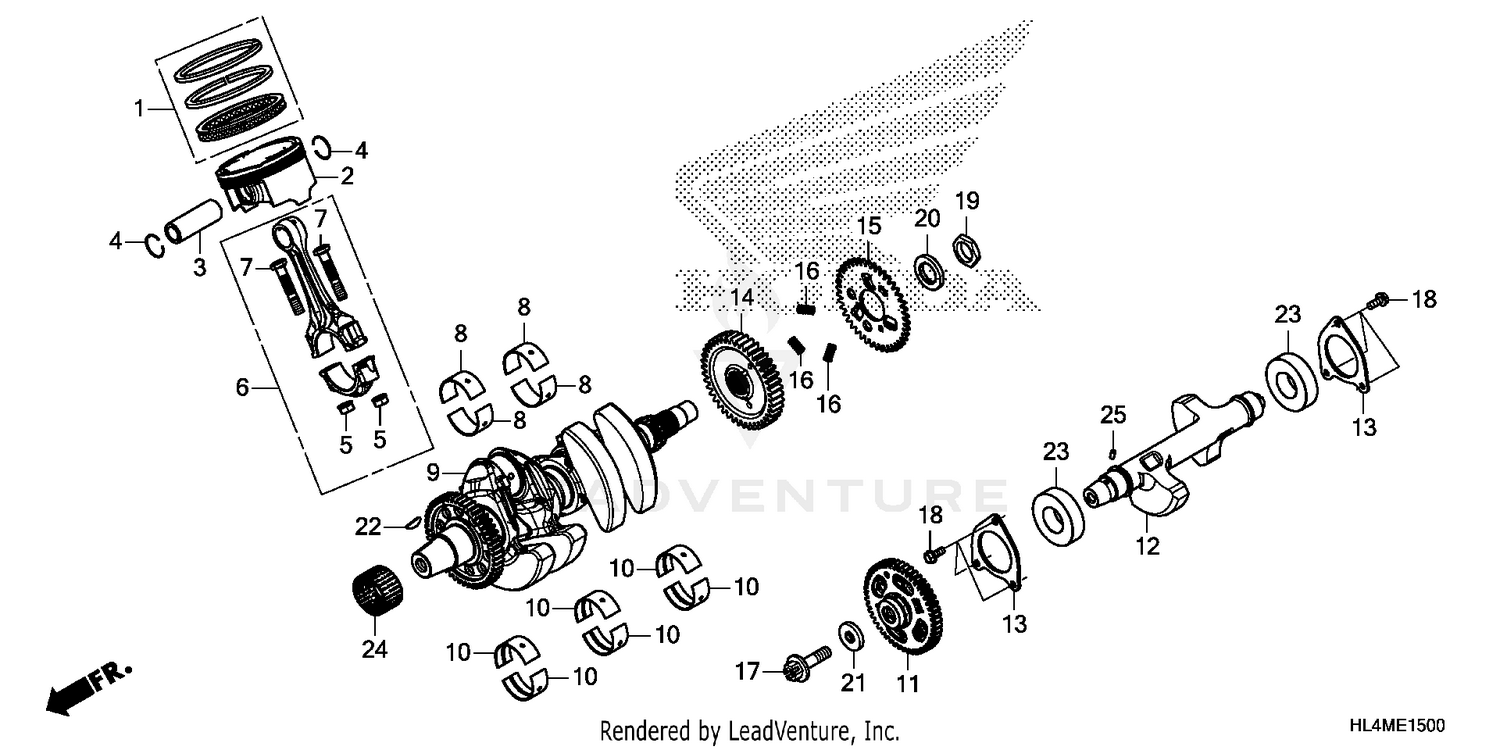

| Ref | Part Number | Description |
|---|
| 1 |
13010-HP0-A01 |
RING SET, PISTON (STD) Price: $67.73 |
| 2 |
13101-HL4-000 |
PISTON (STD) Price: $138.09 |
| 3 |
13111-HL4-000 |
PIN, PISTON Price: $23.65 |
| 4 |
13112-MC7-000 |
CLIP, PISTON PIN (22MM) (Honda Code 1206705) Price: $2.73 |
| 5 |
13205-ME2-000 |
NUT, CONNECTING ROD (Honda Code 1269067) Price: $6.60 |
| 6 |
13210-HL4-000 |
ROD ASSY., CONNECTING Price: $269.44 |
| 7 |
13213-ME2-000 |
BOLT, CONNECTING ROD (Honda Code 1269083) Price: $12.35 |
| 8 |
13215-HL4-003 |
BEARING A, CONNECTING ROD (BLACK) Price: $14.67 |
| 8 |
13216-HL4-003 |
BEARING B, CONNECTING ROD (BROWN) Price: $14.67 |
| 8 |
13217-HL4-003 |
BEARING C, CONNECTING ROD (GREEN) Price: $14.67 |
| 8 |
13218-HL4-003 |
BEARING D, CONNECTING ROD (YELLOW) Price: $14.67 |
| 8 |
13219-HL4-003 |
BEARING E, CONNECTING ROD (WHITE) Price: $14.67 |
| 9 |
13300-HL4-000 |
CRANKSHAFT Price: $851.25 |
| 10 |
13315-HL4-003 |
BEARING A, CRANKSHAFT (BROWN) Price: $14.67 |
| 10 |
13316-HL4-003 |
BEARING B, CRANKSHAFT (GREEN) Price: $14.67 |
| 10 |
13317-HL4-003 |
BEARING C, CRANKSHAFT (YELLOW) Price: $14.67 |
| 10 |
13318-HL4-003 |
BEARING D, CRANKSHAFT (WHITE) Price: $14.67 |
| 10 |
13319-HL4-003 |
BEARING E, CRANKSHAFT (PURPLE) Price: $14.67 |
| 11 |
13420-HL4-000 |
GEAR ASSY., BALANCER DRIVEN Price: $263.25 |
| 12 |
13421-HL4-000 |
SHAFT, BALANCER Price: $227.60 |
| 13 |
13481-HL4-000 |
PLATE, BALANCER BEARING SET Price: $6.42 |
| 14 |
23103-HL4-000 |
GEAR, PRIMARY DRIVE (43T) Price: $126.55 |
| 15 |
23104-HL4-000 |
SUB-GEAR, PRIMARY (43T) Price: $72.24 |
| 16 |
23115-MW4-000 |
SPRING, PRIMARY DAMPER Price: $2.64 |
| 17 |
90005-HL4-000 |
BOLT, SPECIAL (10X37.2) (LEFT HAND THREAD) Price: $9.78 |
| 18 |
90012-HL4-000 |
BOLT, FLANGE (6X16) Price: $2.71 |
| 19 |
90201-HL4-000 |
NUT, LOCK (22MM) Price: $5.89 |
| 20 |
90404-HL4-000 |
WASHER (22X37X5) Price: $8.35 |
| 21 |
90405-HL4-000 |
WASHER (10.3X30X5) Price: $6.67 |
| 22 |
90742-KYJ-900 |
KEY, WOODRUFF (25X18) Price: $2.60 |
| 23 |
91016-HL4-003 |
BEARING, RADIAL BALL SPECIAL (62/28) Price: $37.33 |
| 24 |
91018-HL4-003 |
BEARING, NEEDLE (39X44X23.8) Price: $19.07 |
