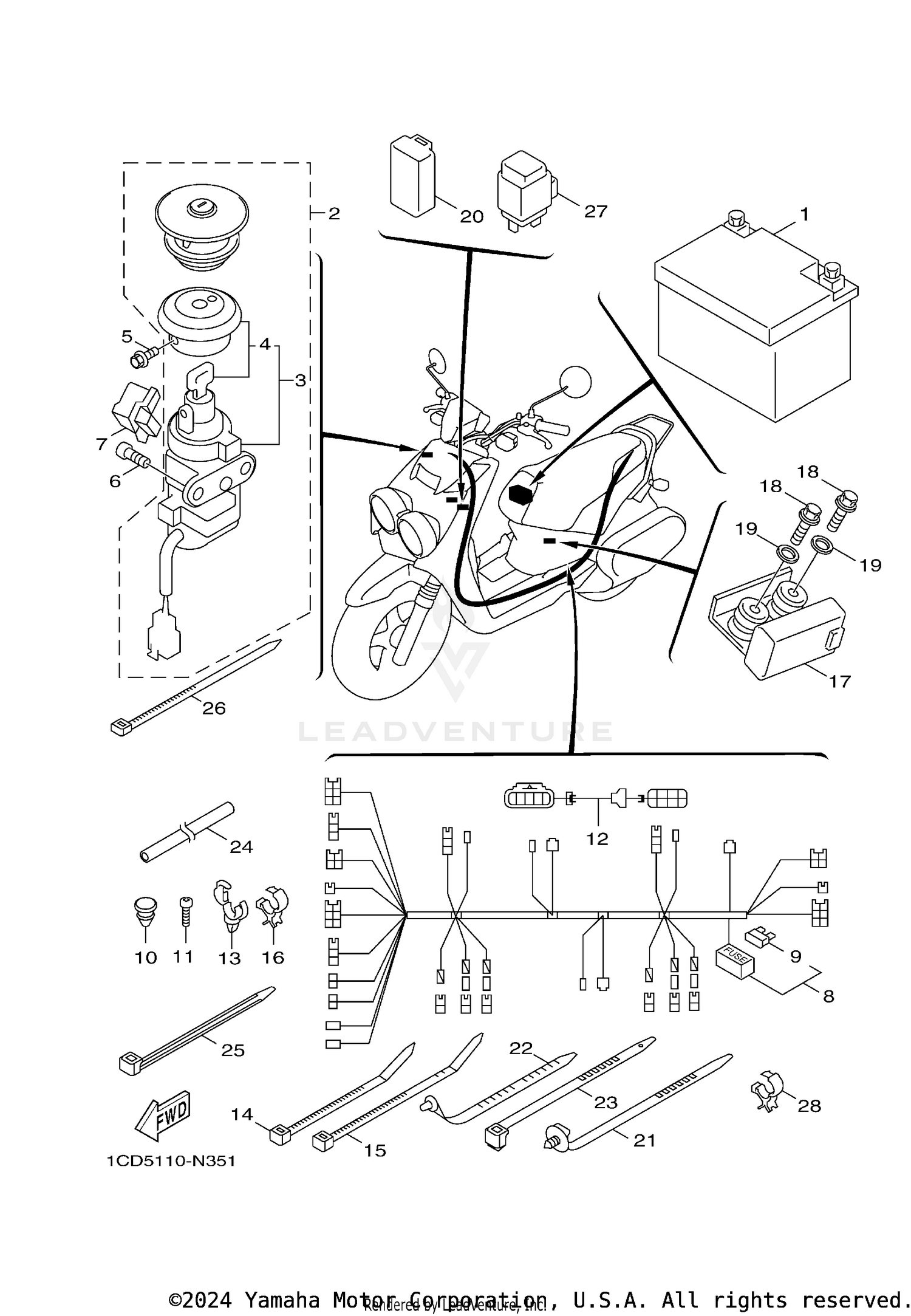

ELECTRICAL 2
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | YTX-5LBS0-00-00 | YTX5LBS YUASA BATTE This part replaces 5PJ-H2100-00-00. Price: $76.99 |
| 2 | 1CD-WH203-03-00 | KEY SET This part replaces 1CD-WH203-02-00. Price: $157.99 |
| 3 | 1CD-H2501-02-00 | MAIN SWITC This part replaces 1CD-H2501-01-00. Price: $129.99 |
| 5 | 90119-05004-00 | BOLT, WITH WASHER Price: $8.49 |
| 6 | 90155-06803-00 | SCREW, FLAT FILLISTER Price: $2.00 |
| 7 | 3D0-H2155-00-00 | BAND Price: $2.35 |
| 8 | 1CD-H2590-11-00 | WIRE HARNESS ASSY Price: $284.99 |
| 9 | 5ML-H2151-10-00 | FUSE (15A) Price: $1.00 |
| 10 | 5SU-H2119-10-00 | COVER, LEAD WIRE Price: $0.60 |
| 11 | 95817-06010-00 | BOLT,FLANGE This part replaces 95807-06010-00. Price: $5.49 |
| 12 | 3B3-H2509-00-00 | WIRE, SUB LEAD Price: $23.99 |
| 13 | 90464-20803-00 | CLAMP Price: $1.15 |
| 14 | 90464-26800-00 | CLAMP Price: $0.60 |
| 15 | 90464-40801-00 | CLAMP Price: $2.35 |
| 16 | 90464-25801-00 | CLAMP Price: $1.15 |
| 17 | 32P-H2576-00-00 | SENSOR, LEAN ANGLE Price: $39.99 |
| 18 | 90110-04802-00 | BOLT, HEXAGON SOCKET HEAD Price: $1.35 |
| 19 | 90201-047A2-00 | WASHER, PLATE Price: $4.00 |
| 20 | 29U-81950-93-00 | RELAY ASSY (ACA12115-1) Price: $84.99 |
| 21 | 90464-30802-00 | CLAMP Price: $1.15 |
| 22 | 90464-45803-00 | CLAMP Price: $1.55 |
| 23 | 90464-12812-00 | CLAMP Price: $1.00 |
| 24 | 1CD-F117G-10-00 | PROTECTOR Price: $0.60 |
| 25 | 1UA-82591-00-00 | BAND This part replaces 90465-13152-00. Price: $5.49 |
| 26 | 90464-60800-00 | CLAMP Price: $0.70 |
| 27 | 3B3-83350-00-00 | FLASHER RELAY ASSY Price: $61.99 |
