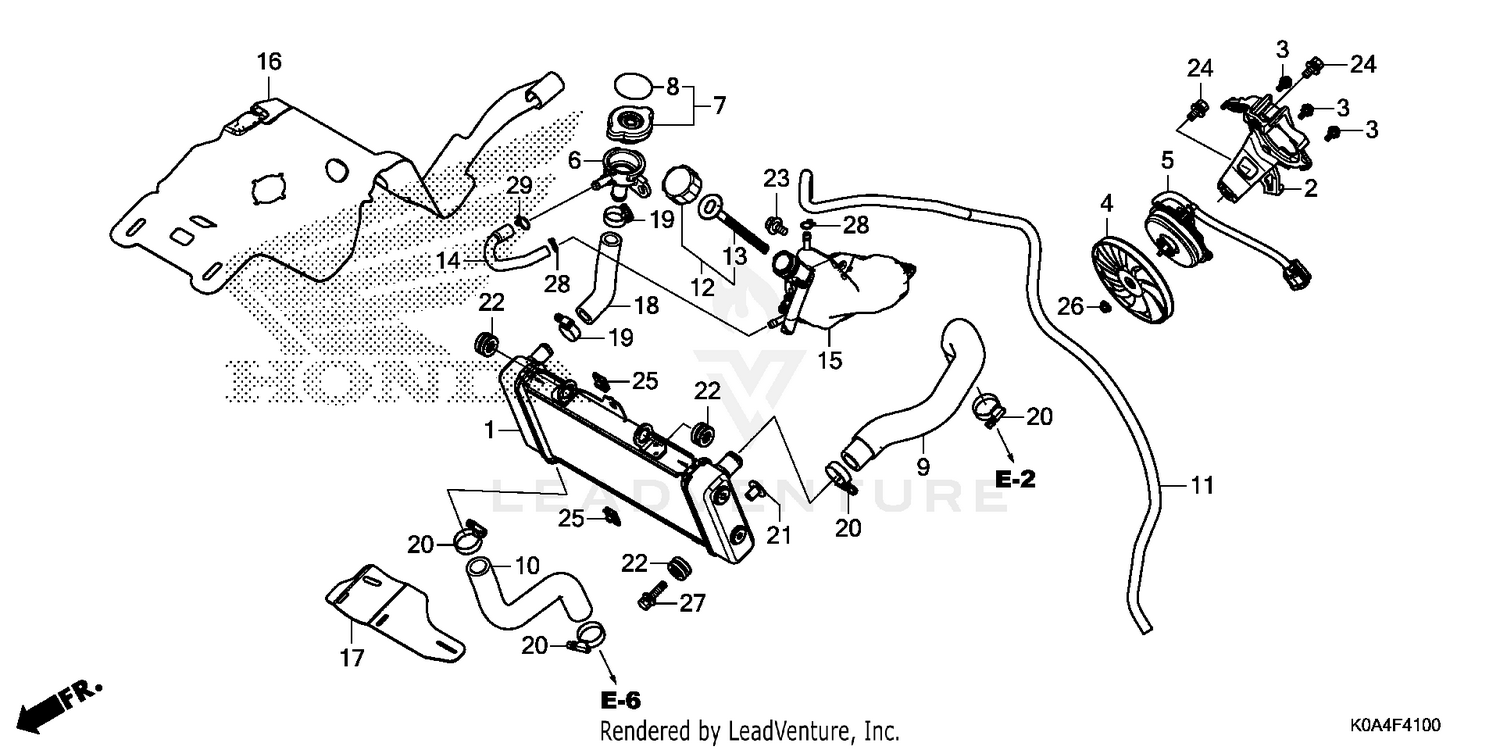

| Ref | Part Number | Description |
|---|
| 1 |
19010-K0A-E11 |
RADIATOR Price: $159.04 |
| 2 |
19015-K0A-E11 |
SHROUD Price: $12.18 |
| 3 |
19016-KEA-003 |
SCREW, PAN (4X8.5) Price: $1.85 |
| 4 |
19020-KVZ-631 |
FAN, COOLING Price: $35.53 |
| 5 |
19030-K0A-E11 |
MOTOR, FAN Price: $102.56 |
| 6 |
19035-K94-T01 |
NECK, FILLER Price: $32.13 |
| 7 |
19037-GEE-710 |
CAP, RADIATOR Price: $36.69 |
| 8 |
19046-PAA-A00 |
LABEL, RADIATOR CAP Price: $3.50 |
| 9 |
19062-K0A-E10 |
HOSE, RADIATOR (UPPER) Price: $30.16 |
| 10 |
19067-K0A-E10 |
HOSE, RADIATOR (LOWER) Price: $17.49 |
| 11 |
19104-K0A-E10 |
TUBE, RESERVE TANK BREATHER Price: $15.13 |
| 12 |
19105-K94-T00 |
CAP ASSY., RESERVE TANK Price: $9.05 |
| 13 |
19106-K94-T00 |
GASKET ASSY., RESERVE TANK Price: $4.82 |
| 14 |
19107-K94-T00 |
TUBE, RADIATOR BREATHER Price: $6.51 |
| 15 |
19110-K94-T00 |
TANK, RADIATOR RESERVE Price: $9.04 |
| 16 |
19125-K0A-E10 |
RUBBER, HEAT GUARD Price: $20.16 |
| 17 |
19127-K0A-E10 |
RUBBER, RADIATOR (LOWER) Price: $7.07 |
| 18 |
19504-K94-T00 |
HOSE, FILLER NECK Price: $10.82 |
| 19 |
19505-KS6-700 |
CLAMP, WATER HOSE (A) Price: $13.25 |
| 20 |
19517-ML7-691 |
CLAMP, HOSE (22-29MM) Price: $14.09 |
| 21 |
61102-KTY-D30 |
COLLAR, RADIATOR MOUNTING Price: $5.04 |
| 22 |
61304-415-000 |
RUBBER, HEADLIGHT CASE MOUNTING Price: $4.35 |
| 23 |
90116-KVB-900 |
BOLT, FLANGE (6MM) Price: $1.13 |
| 24 |
90120-KCR-003 |
BOLT-WASHER (6X16) Price: $5.51 |
| 25 |
90201-KPR-901 |
NUT, CLIP (6MM) Price: $2.13 |
| 26 |
90315-MFL-003 |
NUT, FLANGE (3MM) Price: $2.65 |
| 27 |
93404-06025-07 |
BOLT-WASHER (6X25) Price: $1.95 |
| 28 |
95002-02100 |
CLIP, TUBE (B10) Price: $1.98 |
