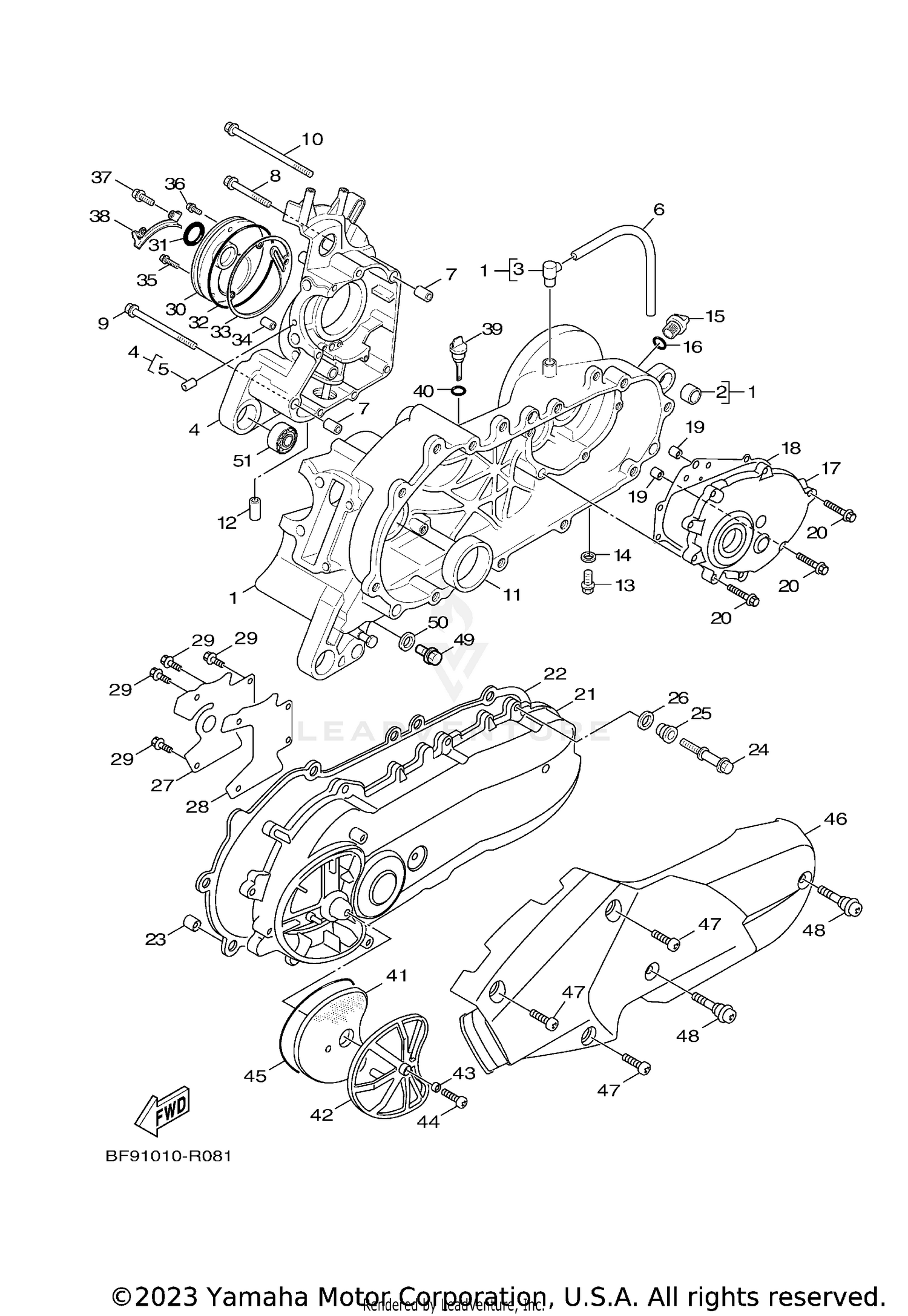

| Ref | Part Number | Description |
|---|
| 1 |
2JS-WE511-00-00 |
CRANKCASE 1 Price: $165.99 |
| 2 |
164-22216-00-00 |
BUSH, REAR SHOCK ABSORBER This part replaces 4X6-F2216-00-00. Price: $14.49 |
| 3 |
5CA-E5371-00-00 |
BREATHER Price: $4.70 |
| 4 |
5S9-WE512-00-00 |
CRANKCASE 2 Price: $151.99 |
| 5 |
5ML-E5138-00-00 |
NOZZLE 1 Price: $1.80 |
| 6 |
90446-13803-00 |
HOSE Price: $1.15 |
| 7 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 8 |
90105-06808-00 |
BOLT, FLANGE Price: $2.05 |
| 9 |
90105-06810-00 |
BOLT, FLANGE Price: $2.35 |
| 10 |
90105-06817-00 |
BOLT, FLANGE Price: $1.05 |
| 11 |
93102-22294-00 |
OIL SEAL This part replaces 93102-22843-00. Price: $16.49 |
| 12 |
5ML-E3416-00-00 |
PIPE, OIL 1 Price: $1.40 |
| 13 |
95817-08016-00 |
BOLT,FLANGE (JN5) Price: $5.49 |
| 14 |
90430-08816-00 |
GASKET Price: $1.10 |
| 15 |
4Y4-E5363-00-00 |
PLUG, OIL Price: $1.10 |
| 16 |
93210-14579-00 |
O-RING This part replaces 93210-14805-00. Price: $7.49 |
| 17 |
2JS-E5421-00-00 |
COVER, CRANKCASE 2 Price: $33.99 |
| 18 |
5S9-E5461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $2.80 |
| 19 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 20 |
90105-06895-00 |
BOLT, FLANGE Price: $1.70 |
| 21 |
2UB-E5411-00-00 |
COVER, CRANKCASE 1 Price: $75.99 |
| 22 |
2UB-E5451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $11.49 |
| 23 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 24 |
5ML-E5481-00-00 |
BOLT 1 Price: $2.35 |
| 25 |
5ML-E5422-00-00 |
BUSH Price: $8.49 |
| 26 |
5ML-E5158-00-00 |
WASHER Price: $1.20 |
| 27 |
5ML-E5191-00-00 |
PLATE Price: $3.50 |
| 28 |
5ML-E5455-00-00 |
GASKET 1 Price: $2.35 |
| 29 |
95027-06010-00 |
BOLT, FLANGE Price: $3.55 |
| 30 |
5ML-E5417-00-00 |
COVER, CAP Price: $22.99 |
| 31 |
93102-19293-00 |
OIL SEAL Price: $16.49 |
| 32 |
93211-07801-00 |
O-RING Price: $3.15 |
| 33 |
5ML-E5453-00-00 |
GASKET Price: $3.50 |
| 34 |
99480-05010-00 |
PIN Price: $0.55 |
| 35 |
90105-06809-00 |
BOLT, FLANGE Price: $2.35 |
| 36 |
90105-06807-00 |
BOLT, FLANGE Price: $0.55 |
| 37 |
90105-06806-00 |
BOLT, FLANGE Price: $0.35 |
| 38 |
5ML-E5113-00-00 |
PLATE Price: $1.45 |
| 39 |
5S9-E5362-00-00 |
PLUG, OIL LEVEL Price: $2.35 |
| 40 |
5ML-E3769-00-00 |
O-RING Price: $0.40 |
| 41 |
5ML-E5407-00-00 |
ELEMENT 1 Price: $3.50 |
| 42 |
5ML-E5404-00-00 |
GUIDE, ELEMENT Price: $3.45 |
| 43 |
90387-06819-00 |
COLLAR Price: $1.15 |
| 44 |
90154-06826-00 |
SCREW, BINDING Price: $1.70 |
| 45 |
5ML-E5472-00-00 |
SEAL, AIR DUCT Price: $1.20 |
| 46 |
2JS-XE543-01-00 |
COVER, CRANKCASE 3 This part replaces 2JS-XE543-00-00. Price: $39.99 |
| 47 |
90154-06827-00 |
SCREW, BINDING Price: $1.75 |
| 48 |
4DM-E5481-00-00 |
BOLT 1 Price: $2.80 |
| 49 |
90340-12802-00 |
PLUG, STRAIGHT SCREW Price: $2.20 |
| 50 |
90201-12172-00 |
WASHER, PLATE Price: $3.45 |
