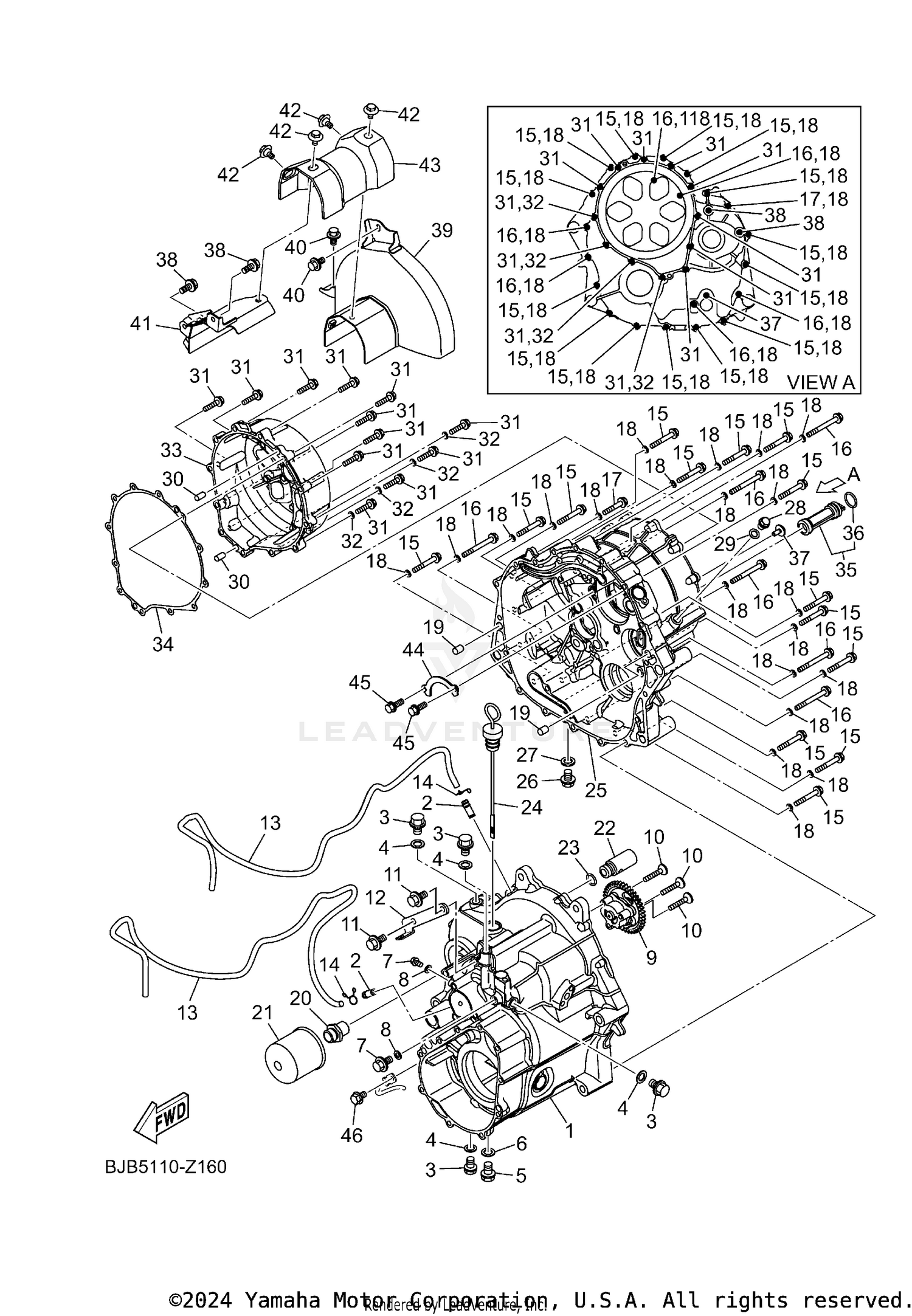

| Ref | Part Number | Description |
|---|
| 1 |
BJB-17541-00-00 |
CASE, TRANSFER 1 Price: $1,130.99 |
| 2 |
137-13115-01-00 |
CONNECTOR, SUCTION PIPE Price: $4.99 |
| 3 |
90340-10003-00 |
PLUG, STRAIGHT SCREW Price: $9.49 |
| 4 |
90430-10148-00 |
GASKET Price: $5.99 |
| 5 |
90105-122A1-00 |
BOLT, FLANGE Price: $2.60 |
| 6 |
90430-12202-00 |
GASKET Price: $9.49 |
| 7 |
95E32-06010-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
| 8 |
90430-06014-00 |
GASKET Price: $8.60 |
| 9 |
BDW-17880-00-00 |
OIL PUMP ASSY Price: $203.99 |
| 10 |
98702-06035-00 |
SCREW, FLAT HEAD Price: $3.10 |
| 11 |
95D32-08016-00 |
BOLT, FLANGE DEEP RECESS Price: $1.60 |
| 12 |
BJB-17665-00-00 |
PLATE 1 Price: $18.49 |
| 13 |
90445-08040-00 |
HOSE (L1140) Price: $6.99 |
| 14 |
90467-08021-00 |
CLIP This part replaces 90467-08075-00. Price: $9.49 |
| 15 |
95E32-06045-00 |
BOLT, FLANGE DEEP RECESS Price: $1.70 |
| 16 |
95E32-06060-00 |
BOLT, FLANGE DEEP RECESS Price: $0.95 |
| 17 |
95027-06035-00 |
BOLT, FLANGE Price: $2.40 |
| 18 |
90430-06014-00 |
GASKET Price: $8.60 |
| 19 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 20 |
90401-20012-00 |
BOLT, UNION Price: $19.49 |
| 21 |
5GH-13440-90-00 |
ELEMENT ASSY, OIL CLEANER Price: $16.49 |
| 22 |
2C0-13490-00-00 |
RELIEF VALVE ASSY Price: $111.99 |
| 23 |
93210-15566-00 |
O-RING Price: $8.49 |
| 24 |
BDW-15362-00-00 |
PLUG, OIL LEVEL Price: $33.99 |
| 25 |
BJB-17542-00-00 |
CASE, TRANSFER 2 Price: $1,006.99 |
| 26 |
90340-12006-00 |
PLUG, STRAIGHT SCREW Price: $4.55 |
| 27 |
90430-12213-00 |
GASKET Price: $6.49 |
| 28 |
90340-10003-00 |
PLUG, STRAIGHT SCREW Price: $9.49 |
| 29 |
90430-10148-00 |
GASKET Price: $5.99 |
| 30 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 31 |
95E32-06030-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 32 |
90430-06014-00 |
GASKET Price: $8.60 |
| 33 |
BDW-15415-00-00 |
COVER, 1 Price: $129.99 |
| 34 |
BDW-15453-00-00 |
GASKET Price: $20.99 |
| 35 |
2HC-13411-00-00 |
STRAINER, OIL Price: $17.99 |
| 36 |
93210-20802-00 |
O-RING This part replaces 93210-207A0-00. Price: $0.95 |
| 37 |
90159-06021-00 |
SCREW, WITH WASHER Price: $3.55 |
| 38 |
90119-06242-00 |
BOLT, WITH WASHER Price: $8.49 |
| 39 |
2HC-2147J-00-00 |
COVER, SHAFT 1 Price: $129.99 |
| 40 |
90119-06242-00 |
BOLT, WITH WASHER Price: $8.49 |
| 41 |
2HC-2147K-00-00 |
COVER, SHAFT 2 Price: $80.99 |
| 42 |
90109-06202-00 |
BOLT Price: $3.10 |
| 43 |
2HC-2131P-01-00 |
COVER PLATE COMP. Price: $21.99 |
| 44 |
2HC-17558-00-00 |
PLATE, BEARING Price: $4.55 |
| 45 |
95022-06016-00 |
BOLT, FLANGE This part replaces 90105-06187-00. Price: $3.90 |
