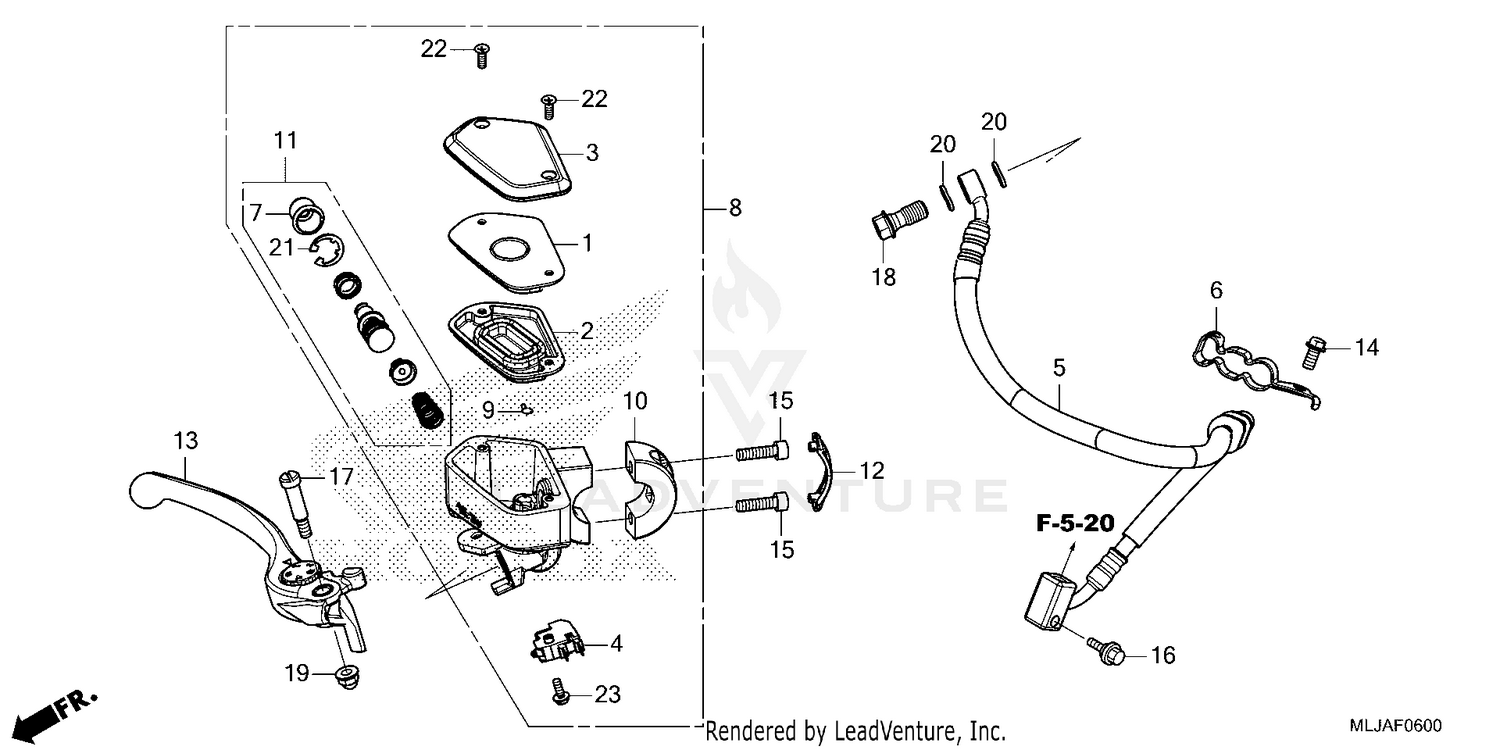

| Ref | Part Number | Description |
|---|
| 1 |
22887-MGE-006 |
PLATE, DIAPHRAGM Price: $9.02 |
| 2 |
22888-MGE-006 |
DIAPHRAGM Price: $15.04 |
| 3 |
22889-MGE-006 |
CAP, MASTER CYLINDER Price: $39.00 |
| 4 |
35340-MGS-D31 |
SWITCH ASSY., FR. STOP Price: $22.42 |
| 5 |
45123-MKC-A01 |
HOSE A, FR. BRAKE Price: $71.56 |
| 6 |
45155-MKC-A00 |
CLAMP A, FR. BRAKE Price: $8.02 |
| 7 |
45504-410-003 |
BOOT Price: $14.75 |
| 8 |
45510-MKC-A01 |
MASTER CYLINDER SUB-ASSY., FR. BRAKE Price: $296.02 |
| 9 |
45512-MA6-006 |
PROTECTOR Price: $5.38 |
| 10 |
45517-MAM-A62 |
HOLDER, MASTER CYLINDER Price: $17.31 |
| 11 |
45530-MA5-671 |
MASTER CYLINDER SET Price: $86.89 |
| 12 |
45553-MAM-A60 |
CAP, BRAKE MASTER CYLINDER HOLDER Price: $3.91 |
| 13 |
53170-MKC-A11 |
LEVER ASSY., R. HANDLE Price: $68.56 |
| 14 |
90013-GHB-610 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $2.65 |
| 15 |
90101-MCL-000 |
BOLT, SOCKET (6X22) Price: $1.65 |
| 16 |
90111-187-000 |
BOLT, FLANGE (6MM) Price: $7.02 |
| 17 |
90114-MG9-951 |
BOLT, HANDLE LEVER Price: $9.91 |
| 18 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 19 |
90202-ZV0-000 |
NUT, CAP (6MM) Price: $3.66 |
| 20 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 21 |
90651-MA5-671 |
CIRCLIP Price: $3.35 |
| 22 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
| 23 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
