Home / POWERSPORTS / ROV / 2018 / 2018 PROWLER 500 RED [U2018PAK4CUSR] / SECONDARY DRIVE ASSEMBLY [104257]

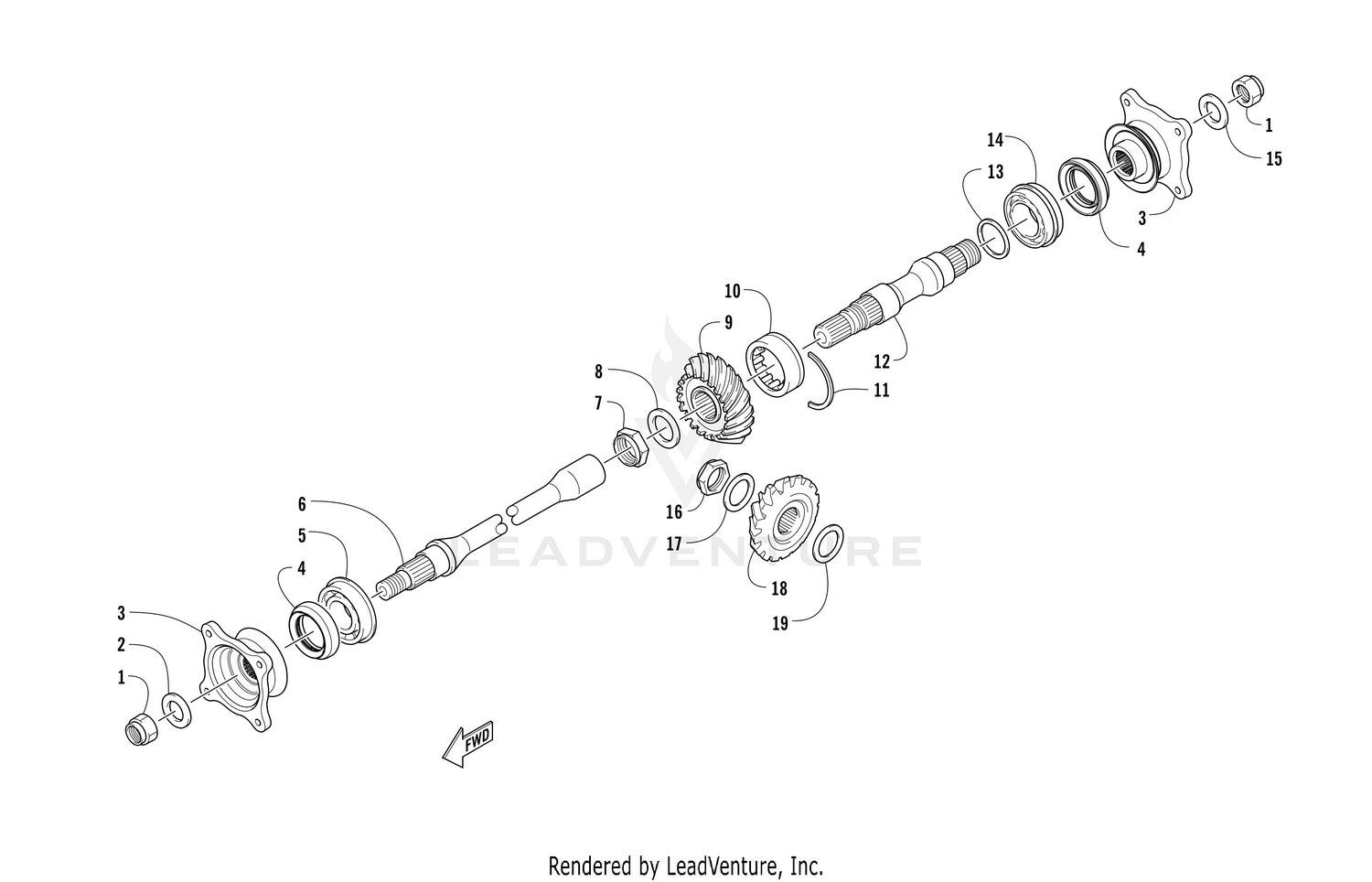

SECONDARY DRIVE ASSEMBLY [104257]

SECONDARY DRIVE ASSEMBLY [104257]

Parts (44)

RefPart NumberDescription
1 3306-428 NUT Price: $11.36
2 3304-958 WASH 16 MM Price: $4.71
3 0819-022 FLANGE, OUTPUT JOINT - REAR Price: $98.95
4 0830-144 SEAL,OIL-REAR SECONDARY DRIVEN SHAFT Price: $17.09
5 0832-026 BEARING,FR SEC DVN SHAFT (4X4) Price: $118.95
6 0819-020 SHAFT,SECONDARY DVN-FRONT (4X4) Price: $158.95
7 0827-022 NUT,SEC DRIVEN GEAR,22MM Price: $12.51
8 0828-090 WASHER,22.2X35.8X2.5 Price: $4.23
9 3307-314 BEVEL GEAR DRIVE Price: $253.95
10 0832-040 BEARING,NEEDLE ROLLER-W/CUTOUT Price: $135.95
11 0819-070 C-RING-DRIVEN BEARING Price: $4.23
12 3307-313 SHAFT FINAL DRIVEN REAR Price: $119.83
13 0828-088 SHIM L DRIVEN BEVEL GEAR T=1.15MM Price: $6.12
13 3305-955 SHIM A DRIVEN BEVEL GEAR T=0.6MM Price: $5.02
13 3305-956 SHIM B DRIVEN BEVEL GEAR T=0.65MM Price: $5.02
13 3305-957 SHIM C DRIVEN BEVEL GEAR T=0.7MM Price: $5.02
13 3305-958 SHIM D DRIVEN BEVEL GEAR T=0.75MM Price: $5.02
13 3305-959 SHIM E DRIVEN BEVEL GEAR T=0.8MM Price: $5.02
13 3305-960 SHIM F DRIVEN BEVEL GEAR T=0.85MM Price: $5.02
13 3305-961 SHIM G DRIVEN BEVEL GEAR T=0.9MM Price: $5.02
13 3305-962 SHIM H DRIVEN BEVEL GEAR T=0.95MM Price: $5.02
13 3305-963 SHIM I DRIVEN BEVEL GEAR T=1.0MM Price: $5.02
13 3305-964 SHIM J DRIVEN BEVEL GEAR T=1.05MM Price: $5.02
13 3305-965 SHIM K DRIVEN BEVEL GEAR T=1.1MM Price: $5.02
13 3305-966 SHIM M DRIVEN BEVEL GEAR T=1.2MM Price: $5.02
13 3305-967 SHIM N DRIVEN BEVEL GEAR T=1.25MM Price: $5.02
14 0832-041 BEARING,CONRAD-W/SNAPRING Price: $210.95
15 3304-958 WASH 16 MM Price: $4.71
16 0827-047 NUT, HEX-COLLLARD (M20X1.5) Price: $12.51
17 3305-554 WASHER THRUST 20MM This part replaces 3304-042. Price: $3.14
18 3307-278 BEVEL GEAR DRIVE Price: $194.95
19 3306-009 SHIM DRIVEN BEVEL GEAR T=0.60MM Price: $5.02
19 3306-010 SHIM DRIVEN BEVEL GEAR T=0.65MM Price: $5.02
19 3306-011 SHIM DRIVEN BEVEL GEAR T=0.70MM Price: $5.02
19 3306-012 SHIM DRIVEN BEVEL GEAR T=0.75MM Price: $5.02
19 3306-013 SHIM DRIVEN BEVEL GEAR T=0.80MM Price: $5.02
19 3306-014 SHIM DRIVEN BEVEL GEAR T=0.85MM Price: $5.02
19 3306-015 SHIM DRIVEN BEVEL GEAR T=0.90MM Price: $5.02
19 3306-016 SHIM DRIVEN BEVEL GEAR T=0.95MM Price: $5.02
19 3306-017 SHIM DRIVEN BEVEL GEAR T=1.00MM Price: $5.02
19 3306-018 SHIM DRIVEN BEVEL GEAR T=1.05MM Price: $5.02
19 3306-019 SHIM DRIVEN BEVEL GEAR T=1.10MM Price: $5.02
19 3306-020 SHIM DRIVEN BEVEL GEAR T=1.15MM Price: $5.02
19 3306-021 SHIM DRIVEN BEVEL GEAR T=1.20MM Price: $5.02
