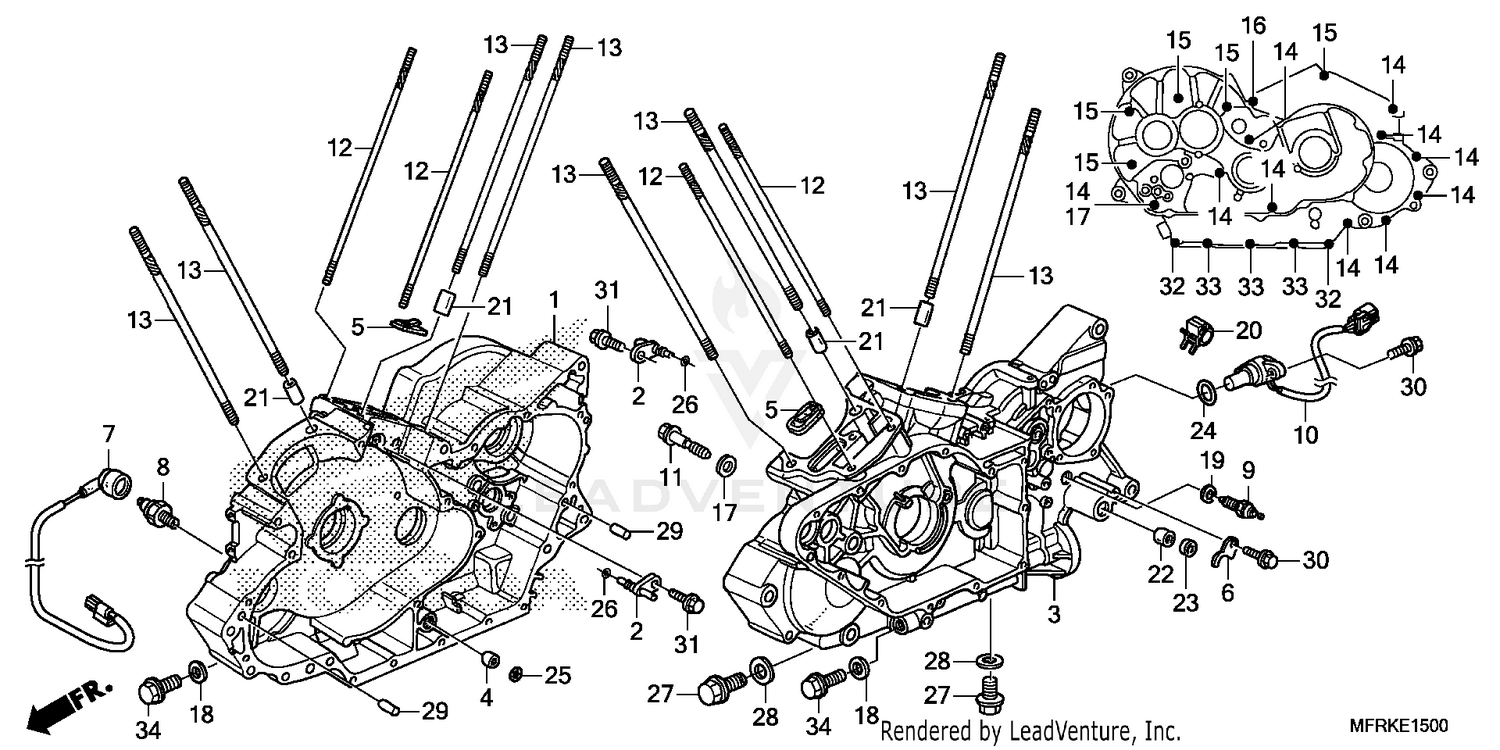

| Ref | Part Number | Description |
|---|
| 1 |
11100-MFY-A00 |
CRANKCASE, R. Price: $930.74 |
| 2 |
11140-MEA-670 |
JET, OIL Price: $11.55 |
| 3 |
11200-MFY-A00 |
CRANKCASE, L. Price: $919.76 |
| 4 |
15155-300-000 |
COLLAR, O-RING Price: $4.35 |
| 5 |
18601-MN4-851 |
VALVE, REED Price: $57.33 |
| 6 |
24612-MAL-600 |
PLATE, SPINDLE Price: $11.15 |
| 7 |
32101-MFR-670 |
SUB-HARNESS, ENGINE Price: $15.78 |
| 8 |
35500-MJ4-024 |
SWITCH ASSY., OIL PRESSURE (DENSO) Price: $51.42 |
| 9 |
35600-KE8-003 |
SWITCH ASSY., NEUTRAL (TOYO) Price: $22.91 |
| 10 |
37700-MFR-672 |
SENSOR ASSY., SPEED Price: $170.84 |
| 11 |
90003-MCH-000 |
BOLT, ORIFICE (1.6MM) Price: $11.13 |
| 12 |
90011-MAH-000 |
BOLT, STUD (8X259) Price: $13.27 |
| 13 |
90012-MBC-003 |
BOLT, STUD (10X269) Price: $20.38 |
| 14 |
90016-MEA-670 |
BOLT, FLANGE (8X95) Price: $3.31 |
| 15 |
90017-MEA-670 |
BOLT, FLANGE (8X105) Price: $3.62 |
| 16 |
90018-MEA-670 |
BOLT, FLANGE (8X115) Price: $4.00 |
| 17 |
90441-MG8-000 |
WASHER, SEALING (8MM) Price: $2.60 |
| 18 |
90443-MB0-000 |
WASHER, SEALING (10.2MM) Price: $3.53 |
| 19 |
90443-MJ6-000 |
WASHER, NEUTRAL Price: $2.20 |
| 20 |
90690-GHB-631 |
CLIP, CABLE (8MM) Price: $2.49 |
| 21 |
90701-KAE-000 |
PIN, DOWEL (14X28) Price: $2.07 |
| 22 |
91106-KM1-013 |
BEARING, NEEDLE (14X22X16) Price: $21.85 |
| 23 |
91203-KA4-771 |
OIL SEAL (14X22X5) (NOK) Price: $4.80 |
| 24 |
91302-MAL-601 |
O-RING (18.1X3.6) Price: $4.42 |
| 25 |
91303-KF0-003 |
O-RING (14.8X2.4) (ARAI) Price: $2.02 |
| 26 |
91305-MG7-003 |
O-RING (5X1.7) (ARAI) Price: $3.62 |
| 27 |
92800-12000 |
BOLT, DRAIN PLUG (12MM) Price: $4.05 |
| 28 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 29 |
94302-10160 |
PIN B, DOWEL (10X16) Price: $2.02 |
| 30 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 31 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 32 |
95701-06055-00 |
BOLT, FLANGE (6X55) Price: $2.27 |
| 33 |
95701-06070-00 |
BOLT, FLANGE (6X70) Price: $2.40 |
