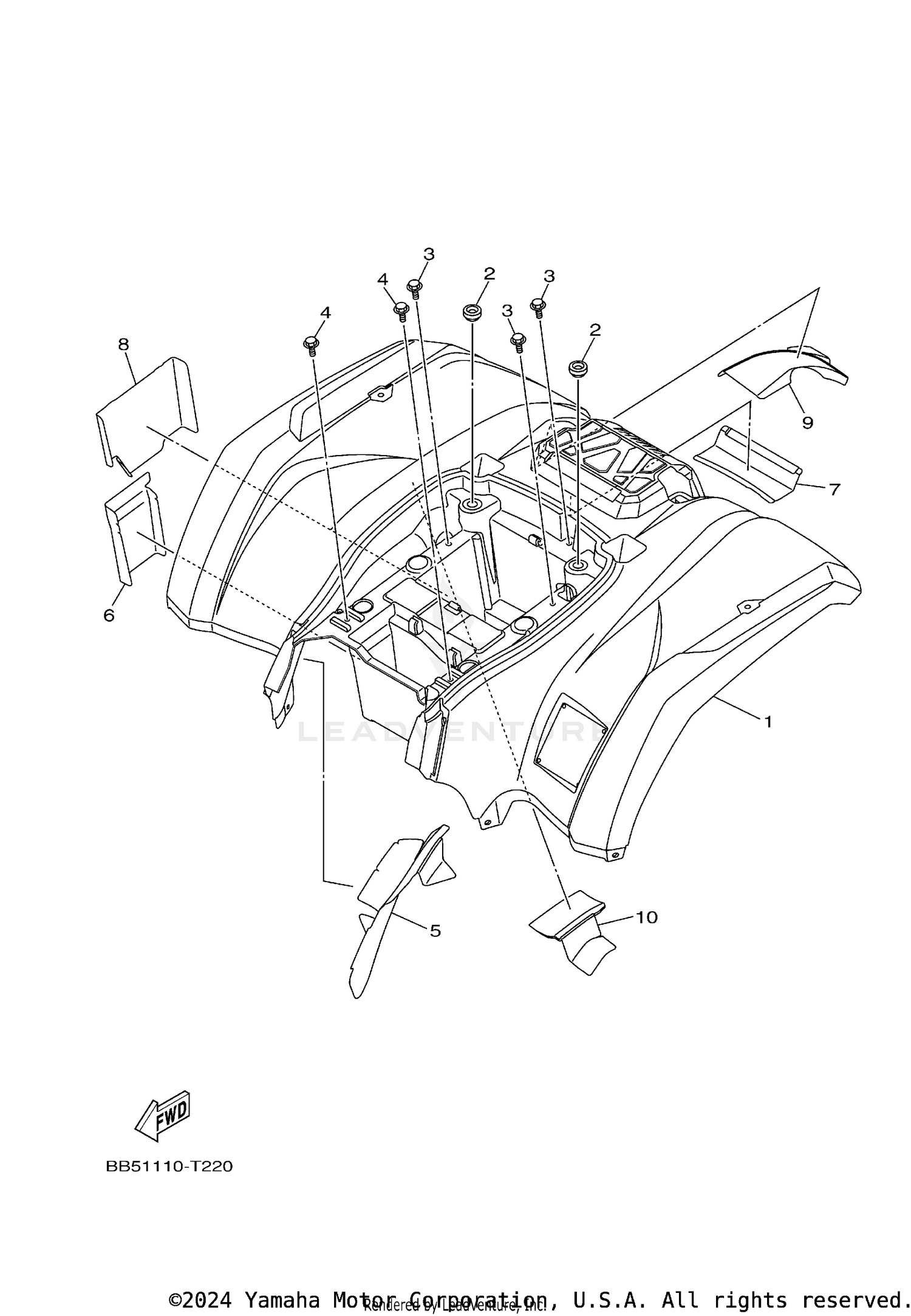

REAR FENDER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B5R-F1600-40-00 | REAR FENDER ASSY Price: $233.99 |
| 2 | 90480-16807-00 | GROMMET Price: $1.40 |
| 3 | JW1-K6179-01-00 | BOLT, SPECIAL 1 Price: $1.75 |
| 4 | 90105-06831-00 | BOLT, FLANGE Price: $1.55 |
| 5 | BB5-F163A-00-00 | COVER, REAR FENDER 1 Price: $15.49 |
| 6 | BB5-F163E-00-00 | COVER, REAR FENDER 2 Price: $8.49 |
| 7 | BB5-F1652-00-00 | PROTECTOR Price: $8.49 |
| 8 | BB5-F163F-00-00 | COVER, REAR FENDER 3 Price: $8.49 |
| 9 | BB5-F1732-03-00 | SEAL 1 This part replaces BB5-F1732-01-00. Price: $12.49 |
