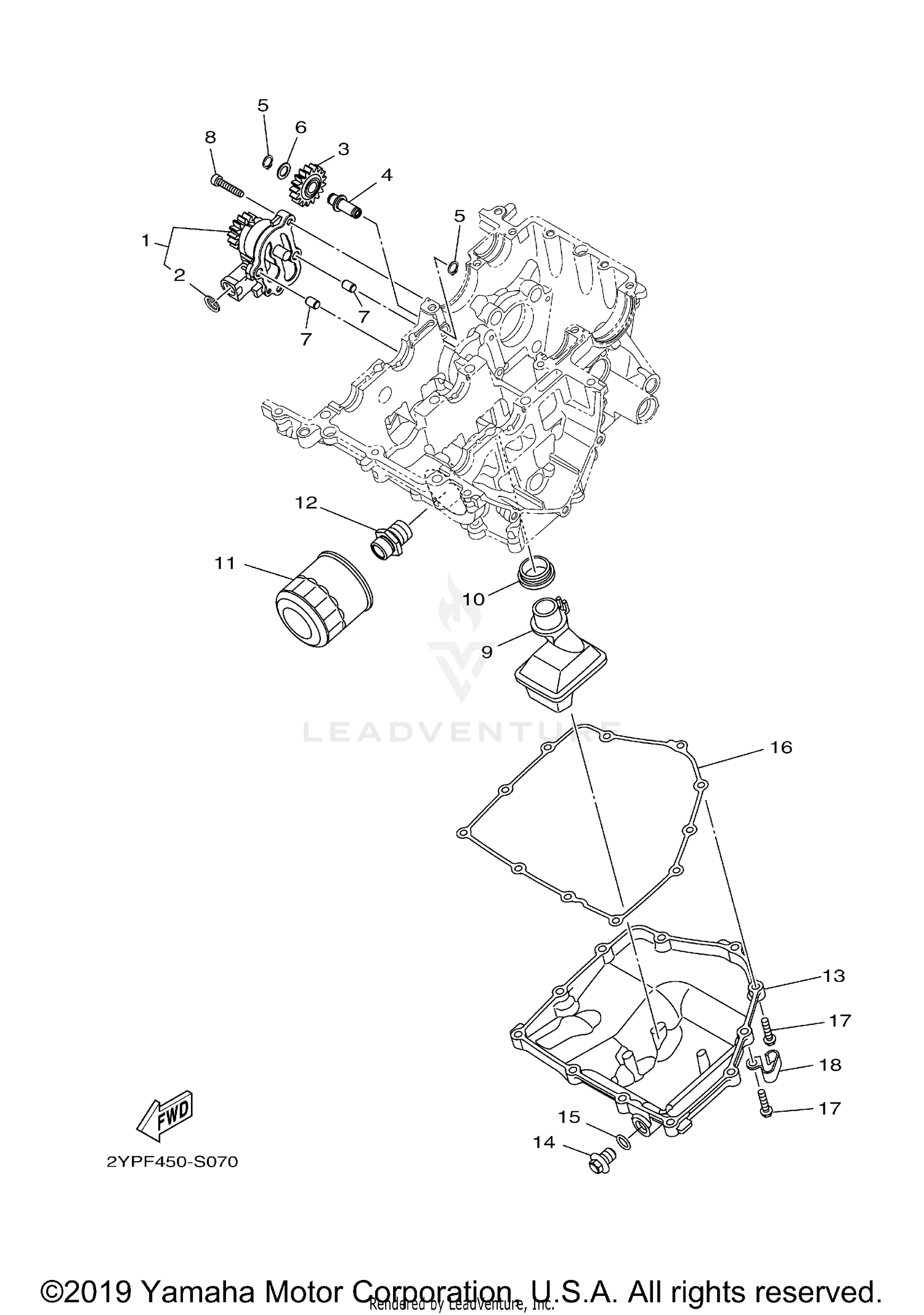

| Ref | Part Number | Description |
|---|
| 1 |
1WD-E3300-01-00 |
OIL PUMP ASSY Price: $62.99 |
| 2 |
99009-15500-00 |
CIRCLIP Price: $11.49 |
| 3 |
1WD-E3341-00-00 |
GEAR, OIL PUMP IDLE Price: $23.99 |
| 4 |
1WD-E3342-00-00 |
SHAFT, IDLE GEAR Price: $23.99 |
| 5 |
99009-10400-00 |
CIRCLIP Price: $5.49 |
| 6 |
90201-10119-00 |
WASHER, PLATE Price: $1.00 |
| 7 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 8 |
91332-06030-00 |
BOLT Price: $0.35 |
| 9 |
1WD-E3410-00-00 |
STRAINER HOUSING ASSY Price: $64.99 |
| 10 |
1WD-E3415-00-00 |
SEAL, OIL STRAINER Price: $3.35 |
| 11 |
1WD-E3440-21-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 1WD-E3440-10-00. Price: $16.49 |
| 12 |
90401-20008-00 |
BOLT, UNION Price: $25.99 |
| 13 |
1WD-E3417-01-00 |
COVER, STRAINER This part replaces 1WD-E3417-00-00. Price: $41.99 |
| 14 |
90340-12808-00 |
PLUG, STRAIGHT SCREW Price: $1.10 |
| 15 |
812-11198-00-00 |
GASKET This part replaces 4YS-E1198-00-00. Price: $7.49 |
| 16 |
1WD-E3414-00-00 |
GASKET, STRAINER COVER Price: $10.49 |
| 17 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
