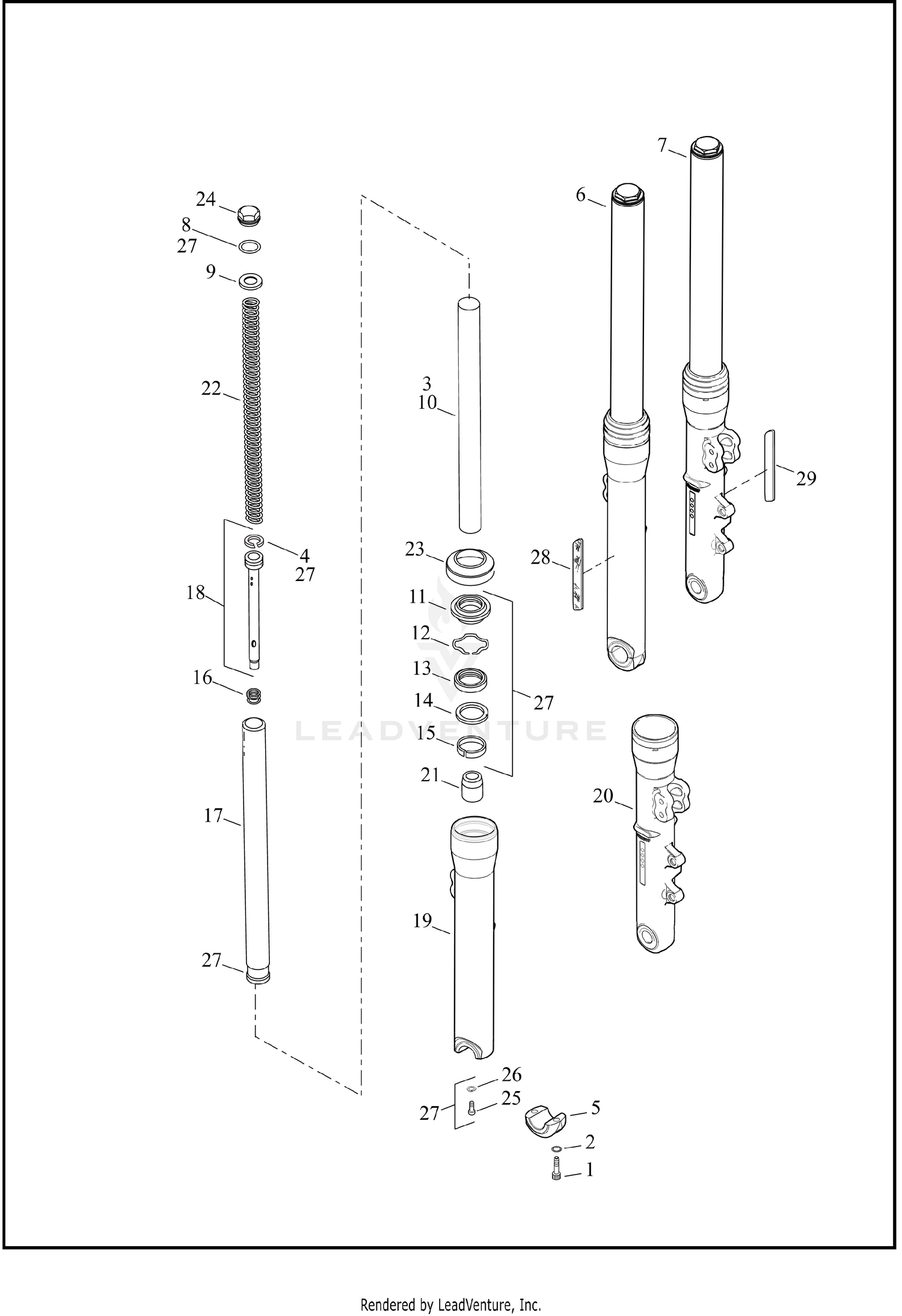

| Ref | Part Number | Description |
|---|
| 1 |
4042 |
SCREW,BTN CAP HD Price: $1.82 |
| 2 |
7062 |
LOCKWASHER,SERRATED Price: $1.22 |
| 4 |
11689 |
PISTON RING Price: $1.83 |
| 8 |
46508-01 |
O-RING Price: $2.04 |
| 9 |
46509-01 |
WASHER Price: $1.22 |
| 10 |
46510-01 |
SPRING COLLAR Price: $14.33 |
| 11 |
46512-01A |
DUST SEAL,FORK(PO) Price: $8.75 |
| 12 |
46513-01 |
RING STOPPER Price: $2.76 |
| 13 |
46514-01A |
OIL SEAL,FORK(PO) Price: $8.45 |
| 14 |
46515-01 |
SPACER SEAL Price: $5.36 |
| 15 |
46516-01 |
BUSHING GUIDE Price: $4.38 |
| 16 |
46517-01 |
SPRING Price: $3.05 |
| 17 |
46605-06 |
FORK PIPE COMP Price: $176.75 |
| 22 |
46610-06 |
SPRING Price: $33.60 |
| 25 |
46614-06 |
BOLT,HEX SCKT Price: $4.71 |
| 26 |
46615-06 |
CU PACKING Price: $1.02 |
| 27 |
49379-09 |
KIT-FORK REBUILD DYNA/VRSC Price: $48.96 |
