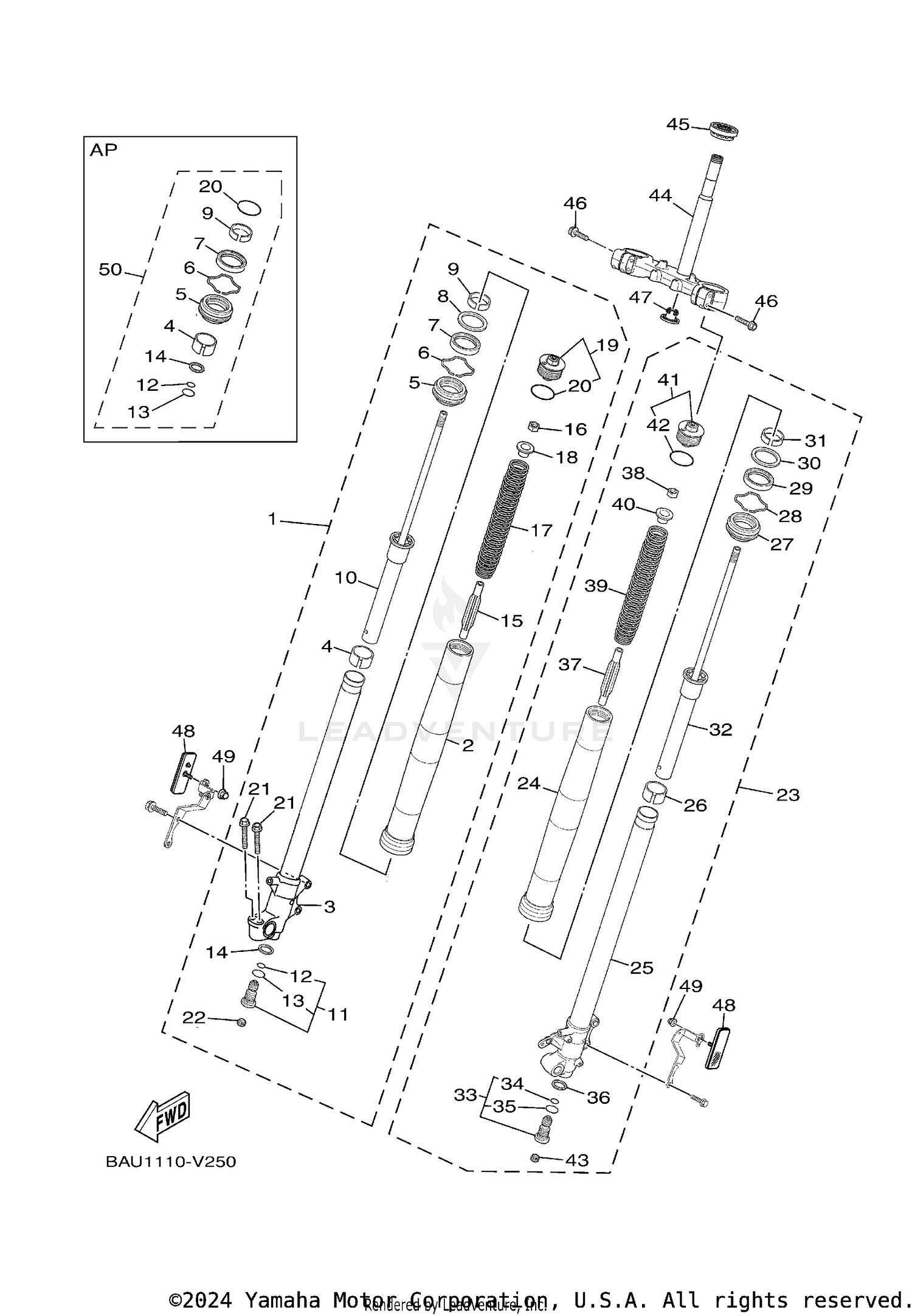

| Ref | Part Number | Description |
|---|
| 1 |
BW3-23103-03-00 |
FRONT FORK ASSY (R.H) This part replaces BW3-23103-01-00. Price: $682.99 |
| 2 |
BW3-23126-00-00 |
TUBE, OUTER (L.H) Price: $622.99 |
| 3 |
BW3-23120-01-00 |
INNER TUBE COMP.2 Price: $393.99 |
| 4 |
5EB-23171-00-00 |
PISTON, FRONT FORK Price: $37.99 |
| 5 |
4PU-23144-00-00 |
SEAL, DUST Price: $26.99 |
| 7 |
4PU-23145-01-00 |
OIL SEAL Price: $28.99 |
| 9 |
2CR-23125-00-00 |
METAL, SLIDE 1 Price: $12.99 |
| 10 |
BW3-23170-01-00 |
CYLINDER COMP., FRONT FORK Price: $391.99 |
| 11 |
BW3-2330H-01-00 |
VALVE ASSY Price: $203.99 |
| 12 |
4DA-23147-L1-00 |
O-RING Price: $7.49 |
| 13 |
276-23114-01-00 |
GASKET Price: $4.60 |
| 14 |
2HH-23158-L0-00 |
GASKET Price: $11.99 |
| 15 |
23P-23117-00-00 |
GUIDE, SPRING Price: $52.99 |
| 16 |
3XJ-23357-L0-00 |
NUT Price: $1.30 |
| 17 |
BW3-23141-00-00 |
SPRING, FRONT FORK Price: $47.99 |
| 18 |
BW3-23117-00-00 |
GUIDE, SPRING Price: $11.49 |
| 19 |
BW3-23111-01-00 |
BOLT, CAP Price: $226.99 |
| 20 |
3XJ-23147-L1-00 |
O-RING Price: $4.75 |
| 21 |
90105-08134-00 |
BOLT, FLANGE Price: $8.49 |
| 22 |
3JD-2312G-L0-00 |
PLUG, HOLE Price: $7.49 |
| 23 |
BW3-23102-03-00 |
FRONT FORK ASSY (L.H) This part replaces BW3-23102-01-00. Price: $652.99 |
| 24 |
BW3-23126-00-00 |
TUBE, OUTER (L.H) Price: $622.99 |
| 25 |
BW3-23110-01-00 |
INNER TUBE COMP.1 Price: $393.99 |
| 26 |
5EB-23171-00-00 |
PISTON, FRONT FORK Price: $37.99 |
| 27 |
4PU-23144-00-00 |
SEAL, DUST Price: $26.99 |
| 29 |
4PU-23145-01-00 |
OIL SEAL Price: $28.99 |
| 31 |
2CR-23125-00-00 |
METAL, SLIDE 1 Price: $12.99 |
| 32 |
BW3-23170-01-00 |
CYLINDER COMP., FRONT FORK Price: $391.99 |
| 33 |
BW3-2330H-01-00 |
VALVE ASSY Price: $203.99 |
| 34 |
4DA-23147-L1-00 |
O-RING Price: $7.49 |
| 35 |
276-23114-01-00 |
GASKET Price: $4.60 |
| 36 |
2HH-23158-L0-00 |
GASKET Price: $11.99 |
| 37 |
23P-23117-00-00 |
GUIDE, SPRING Price: $52.99 |
| 38 |
3XJ-23357-L0-00 |
NUT Price: $1.30 |
| 39 |
BW3-23141-00-00 |
SPRING, FRONT FORK Price: $47.99 |
| 40 |
BW3-23117-00-00 |
GUIDE, SPRING Price: $11.49 |
| 41 |
BW3-23111-01-00 |
BOLT, CAP Price: $226.99 |
| 42 |
3XJ-23147-L1-00 |
O-RING Price: $4.75 |
| 43 |
3JD-2312G-L0-00 |
PLUG, HOLE Price: $7.49 |
| 44 |
BW3-23340-00-00 |
UNDER BRACKET COMP. Price: $601.99 |
| 45 |
93332-00008-00 |
BEARING Price: $73.99 |
| 46 |
90105-08134-00 |
BOLT, FLANGE Price: $8.49 |
| 47 |
4KM-23123-01-00 |
COVER, LOWER 1 Price: $15.49 |
| 48 |
11H-85110-01-00 |
REFLECTOR ASSY Price: $30.99 |
| 49 |
90176-05802-00 |
NUT, CROWN Price: $1.55 |
