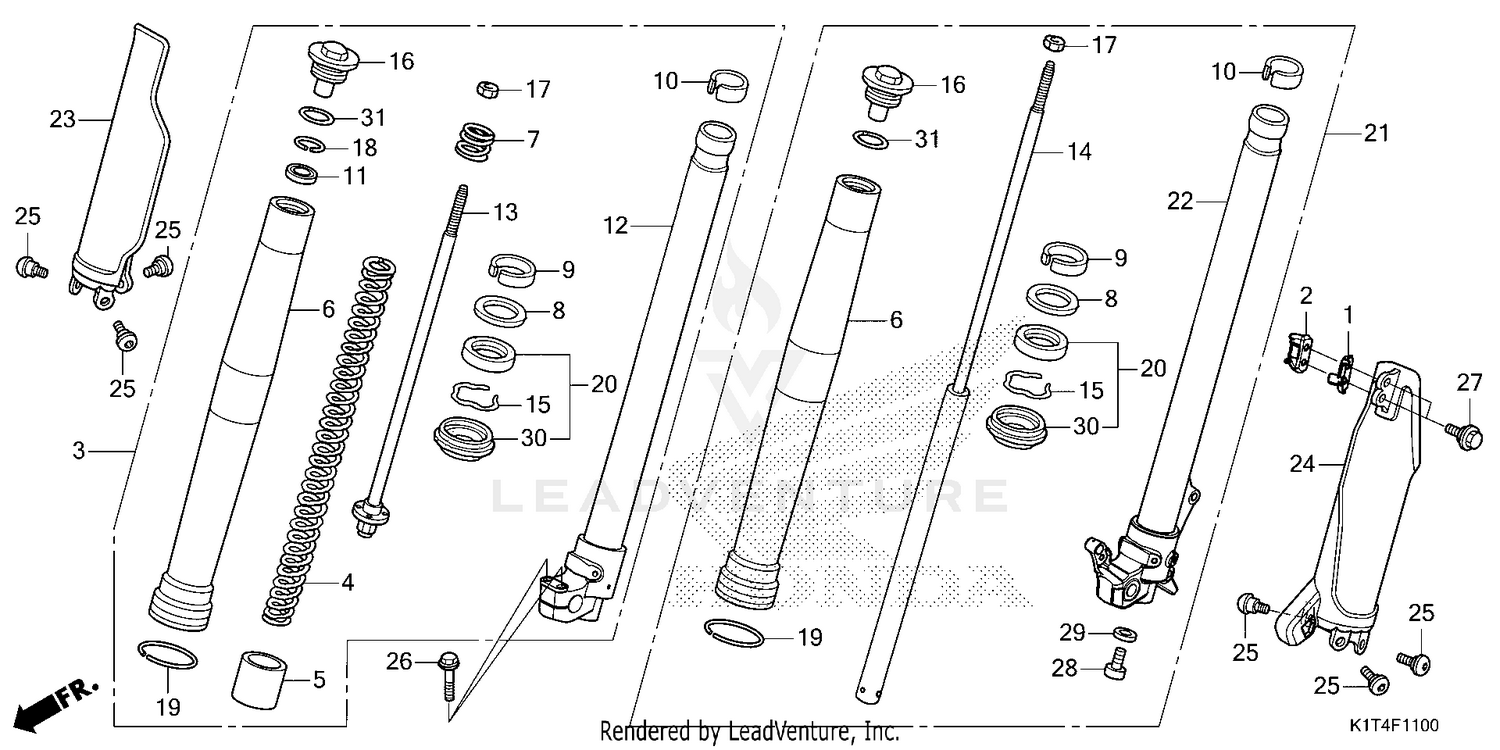

| Ref | Part Number | Description |
|---|
| 1 |
45461-KZZ-J80 |
CLAMP A, BRAKE HOSE Price: $7.76 |
| 2 |
45462-KZZ-J80 |
CLAMP B, BRAKE HOSE Price: $9.58 |
| 3 |
51400-K1T-E51 |
FORK ASSY., R. FR. (SHOWA) Price: $862.16 |
| 4 |
51401-K1T-E51 |
SPRING, FR. FORK Price: $76.45 |
| 5 |
51402-KZZ-J01 |
COLLAR, SPRING Price: $9.42 |
| 6 |
51410-K1T-E11 |
TUBE (OUTER) Price: $454.16 |
| 7 |
51412-K1T-E11 |
SPRING B, REBOUND Price: $9.16 |
| 8 |
51412-KA4-711 |
RING, BACK-UP Price: $11.69 |
| 9 |
51414-MFN-D01 |
BUSH, GUIDE Price: $8.89 |
| 10 |
51415-MGP-D01 |
BUSH, SLIDER Price: $17.98 |
| 11 |
51419-KZZ-901 |
SEAT, STOPPER Price: $7.33 |
| 12 |
51425-K1T-E11 |
PIPE, R. SLIDE Price: $283.62 |
| 13 |
51426-K1T-E11 |
ROD Price: $36.93 |
| 14 |
51430-K1T-E11 |
DAMPER, FR. Price: $136.85 |
| 15 |
51447-KA4-711 |
RING, OIL SEAL STOPPER (SHOWA) Price: $5.67 |
| 16 |
51450-KZZ-901 |
BOLT, FR. FORK Price: $57.47 |
| 17 |
51451-MAJ-G41 |
NUT, HEX. (10MM) Price: $3.31 |
| 18 |
51456-KZZ-901 |
RING, STOPPER Price: $12.00 |
| 19 |
51476-MFB-003 |
RING, WEAR Price: $8.25 |
| 20 |
51490-KZZ-J01 |
SEAL SET, FR. FORK Price: $30.82 |
| 21 |
51500-K1T-E11 |
FORK ASSY., L. FR. (SHOWA) Price: $880.58 |
| 22 |
51525-K1T-E11 |
PIPE, L. SLIDE Price: $400.13 |
| 23 |
51610-KZZ-D20ZC |
PROTECTOR, R. FR. FORK (TYPE3) Price: $34.82 |
| 24 |
51620-KZZ-J80ZC |
PROTECTOR, L. FR. FORK (TYPE3) Price: $107.24 |
| 25 |
90106-KZZ-900 |
BOLT, PROTECTOR (6MM) Price: $0.85 |
| 26 |
90107-MGE-000 |
BOLT, FLANGE (8X40) Price: $3.04 |
| 27 |
90113-KZZ-900 |
BOLT, FLANGE (6MM) Price: $0.62 |
| 28 |
90116-KV3-701 |
BOLT, SOCKET (8MM) (SHOWA) Price: $4.89 |
| 29 |
90544-283-000 |
WASHER, SPECIAL (8MM) (SHOWA) Price: $3.27 |
| 30 |
91254-ML3-791 |
DUST SEAL Price: $18.38 |
