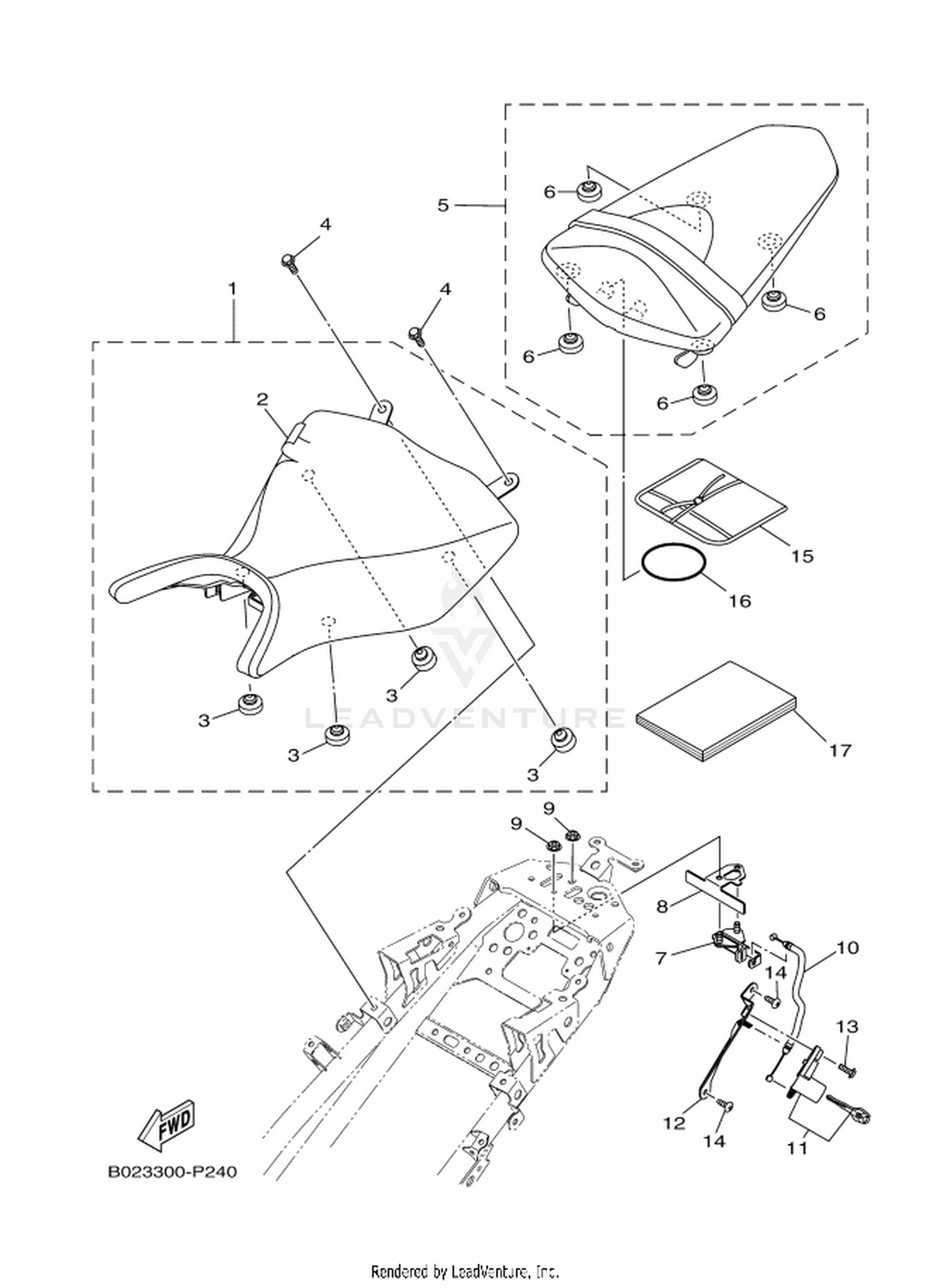

24 SEAT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1WD-F4710-02 | SINGLE SEAT ASSY Price: Call Us |
| 4 | 95022-06012 | BOLT, FLANGE Price: Call Us |
| 5 | 1WD-F4750-01 | TANDEM SEAT ASSY Price: Call Us |
| 7 | 1WD-F4780-00 | SEAT LOCK ASSY Price: Call Us |
| 8 | 1WD-F4792-00 | PLATE Price: Call Us |
| 9 | 95707-06500 | NUT, FLANGE Price: Call Us |
| 10 | 1WD-F478E-00 | CABLE, SEAT LOCK Price: Call Us |
| 11 | 1WD-WF479-00 | ROTOR SUB ASSY WITH KEY Price: Call Us |
| 12 | 1WD-F117K-00 | STAY, LOCK Price: Call Us |
| 13 | 90159-06054 | SCREW, WITH WASHER Price: Call Us |
| 14 | 97702-50016 | SCREW, TAPPING Price: Call Us |
| 15 | B9T-F8100-00 | TOOL KIT Price: Call Us |
| 16 | 5TL-H2131-00 | BAND, BATTERY Price: Call Us |
