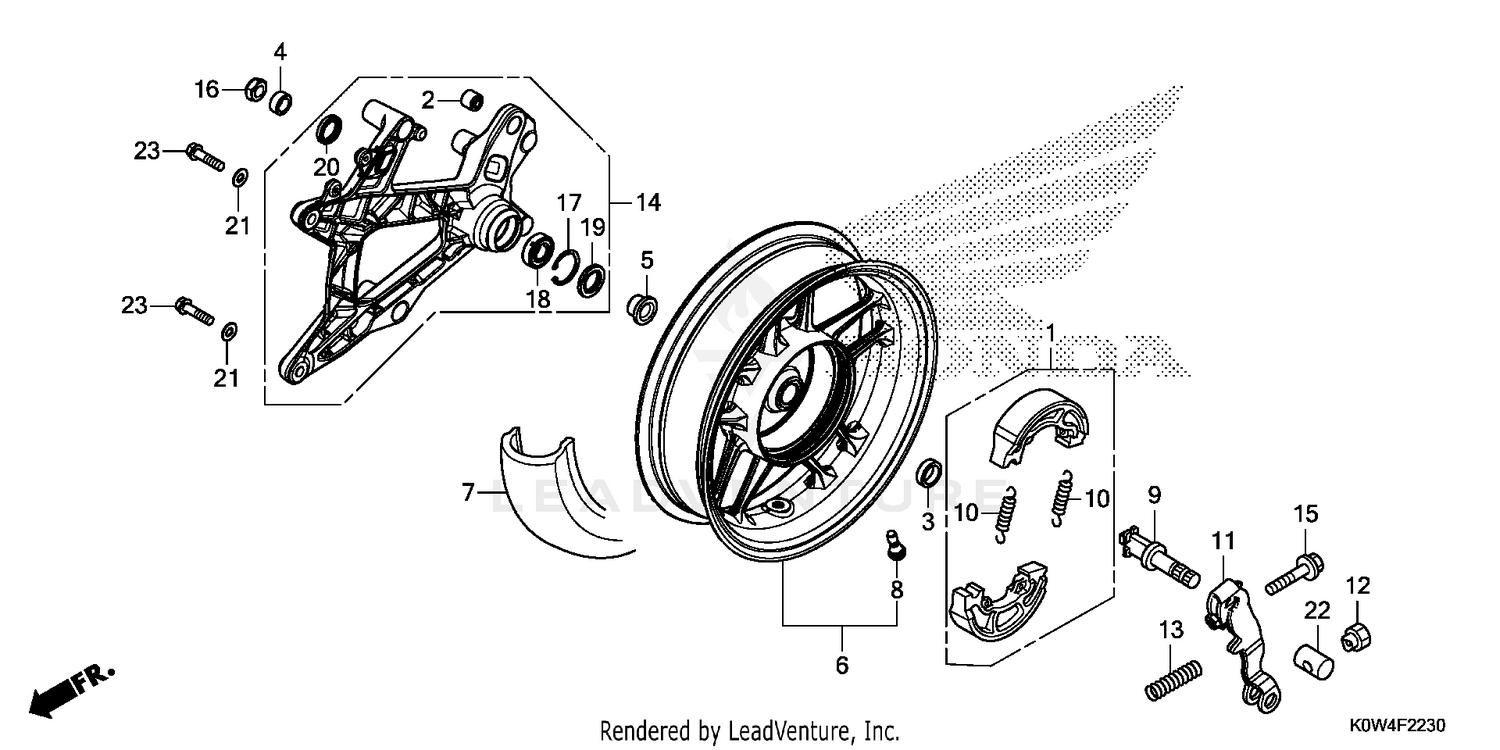

| Ref | Part Number | Description |
|---|
| 1 |
06430-KWN-900 |
SHOE SET, BRAKE (JB) Price: $26.85 |
| 2 |
11203-KVB-901 |
BUSH, RR. CUSHION RUBBER (LOWER) (HOKUSHIN) Price: $4.98 |
| 3 |
42311-KSV-J00 |
COLLAR, RR. WHEEL SIDE Price: $23.35 |
| 4 |
42312-K0W-T00 |
COLLAR B, RR. WHEEL SIDE Price: $10.24 |
| 5 |
42313-K0W-T00 |
COLLAR, RR. AXLE Price: $17.78 |
| 6 |
42650-K0W-A10ZA |
WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC) Price: $307.24 |
| 7 |
42711-K0W-T01 |
TIRE, RR. (130/70-13 M/C 57P) (IRC) Price: $66.67 |
| 8 |
42753-K38-901 |
VALVE, RIM This part replaces 42753-KWF-901. Price: $0.64 |
| 9 |
43141-KVB-900 |
CAM, RR. BRAKE Price: $14.03 |
| 10 |
43151-329-000 |
SPRING, BRAKE SHOE (THIS APPLICATION-FRONT) Price: $3.29 |
| 11 |
43410-K97-T00 |
ARM COMP, RR. BRAKE Price: $3.82 |
| 12 |
95015-42000 |
NUT B, BRAKE ROD ADJUSTING This part replaces 43459-GN5-760. Price: $2.20 |
| 13 |
43472-K97-T00 |
SPRING, RR. BRAKE ARM Price: $3.16 |
| 14 |
52100-K0W-A10 |
SWINGARM ASSY. Price: $136.98 |
| 15 |
90112-K97-T00 |
BOLT, FLANGE (6X35) Price: $1.33 |
| 16 |
90305-KWN-701 |
NUT, U (16MM) Price: $6.89 |
| 17 |
90651-KZR-601 |
CIRCLIP (INNER) (40MM) Price: $0.96 |
| 18 |
91051-K35-V03 |
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) Price: $23.29 |
| 19 |
91252-K35-V01 |
DUST SEAL (25X40X5) Price: $2.45 |
| 20 |
91253-K35-V01 |
DUST SEAL (25X35X6) Price: $2.40 |
| 21 |
94101-10000 |
WASHER, PLAIN (10MM) Price: $1.20 |
| 22 |
95015-32001 |
JOINT B, BRAKE ARM Price: $1.07 |
