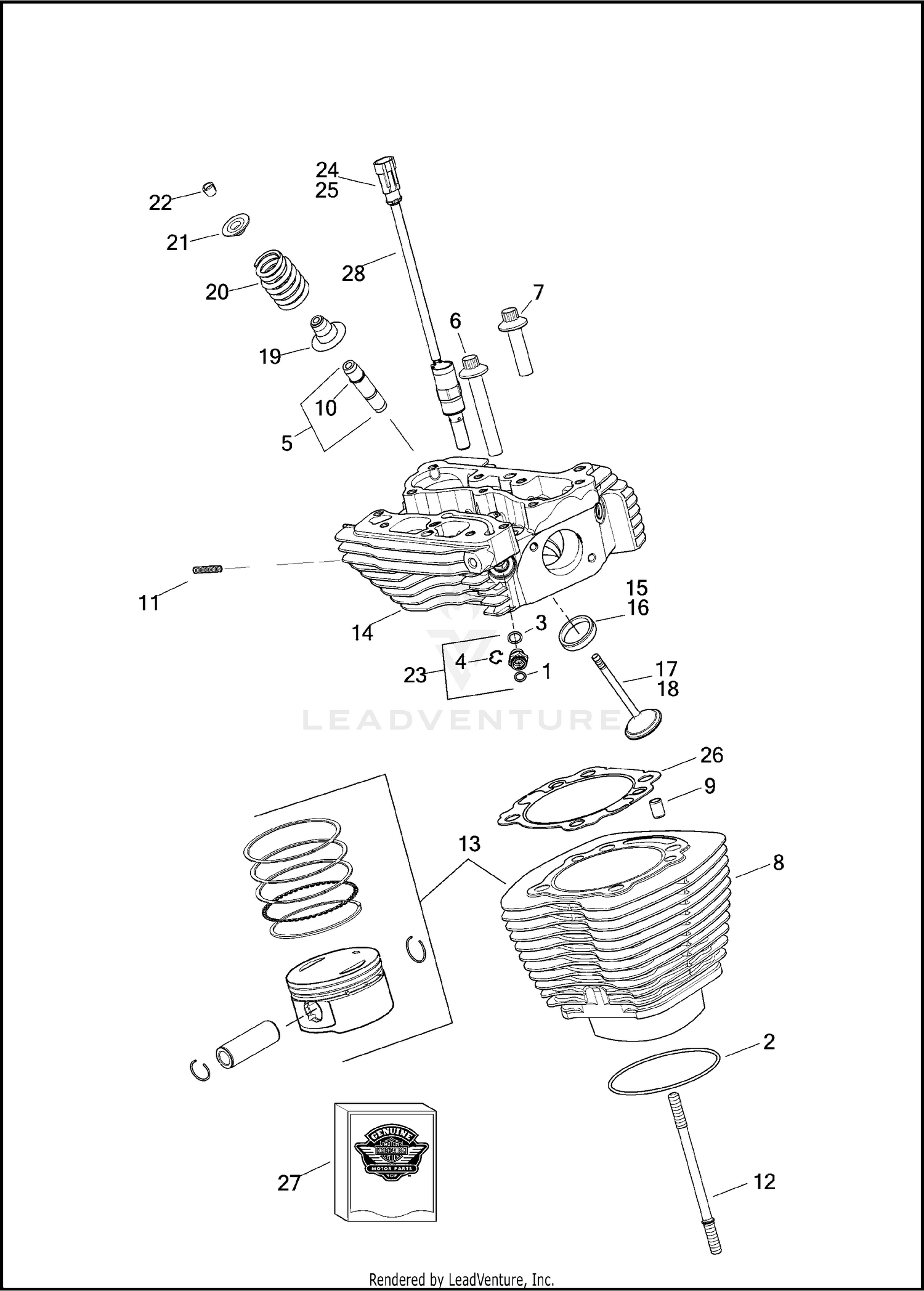

| Ref | Part Number | Description |
|---|
| 1 |
11110 |
O-RING Price: $12.06 |
| 2 |
11256 |
O-RING CYLINDER BASE Price: $3.29 |
| 3 |
11290 |
O-RING Price: $1.71 |
| 4 |
11408 |
RETAINER WIRE CLIP Price: $3.18 |
| 5 |
16465-06 |
VALVE GUIDE ASSEMBLY INTAKE AND EXHAUST, WITH 16699-06 Price: $11.38 |
| 6 |
16478-85A |
SCREW INTERNAL THREAD 3-3/16 IN LONG Price: $9.94 |
| 7 |
16480-92A |
SCREW INTERNAL THREAD 1-7/8 IN LONG Price: $9.79 |
| 8 |
16547-99A |
CYLINDER ASSEMBLY WITH 16595-99A (BLACK) Price: $217.67 |
| 9 |
16595-99A |
DOWEL PIN Price: $1.22 |
| 10 |
16699-06 |
SNAP RING Price: $0.99 |
| 11 |
16715-83 |
STUD EXHAUST PORT Price: $4.12 |
| 12 |
16834-99A |
STUD CYLINDER Price: $13.09 |
| 13 |
17460-07A |
CYLINDER ASSEMBLY WITH PISTON, RINGS, PISTON PIN AND RETAINING RINGS (BLACK) Price: $409.11 |
| 14 |
17732-14 |
CYLINDER HEAD ASSEMBLY COMPLETE, FRONT, WITH 5, 11, 15 - 23, 28 AND 65324-83B (BLACK) Price: $892.31 |
| 14 |
17733-14 |
CYLINDER HEAD ASSEMBLY COMPLETE, REAR, WITH 5, 11, 15 - 23, 28 AND 65324-83B (BLACK) Price: $892.31 |
| 15 |
18011-86 |
INSERT EXHAUST VALVE SEAT Price: $21.70 |
| 16 |
18020-83 |
INSERT INTAKE VALVE SEAT Price: $11.14 |
| 17 |
18074-05A |
INTAKE VALVE Price: $20.94 |
| 18 |
18085-05B |
EXHAUST VALVE Price: $43.75 |
| 19 |
18094-02A |
SEAL KIT VALVE Price: $13.98 |
| 20 |
18245-02 |
VALVE SPRING Price: $8.36 |
| 21 |
18258-02 |
COLLAR VALVE SPRING Price: $4.54 |
| 22 |
18260-02 |
KEEPER VALVE Price: $0.60 |
| 23 |
26064-08 |
FITTING ASSEMBLY WITH 11110, 11290 AND 11408 Price: $8.17 |
| 24 |
72009-05 |
HOUSING TWO-WAY, PIN Price: $5.01 |
| 25 |
72011-05 |
WIRE SEAL 16-20 AWG (YELLOW) Price: $1.20 |
| 26 |
16500066 |
GASKET CYLINDER HEAD Price: $16.12 |
| 27 |
16500244 |
GASKET KIT TOP END Price: $190.06 |
| 27 |
16500245 |
GASKET KIT ENGINE OVERHAUL Price: $226.43 |
