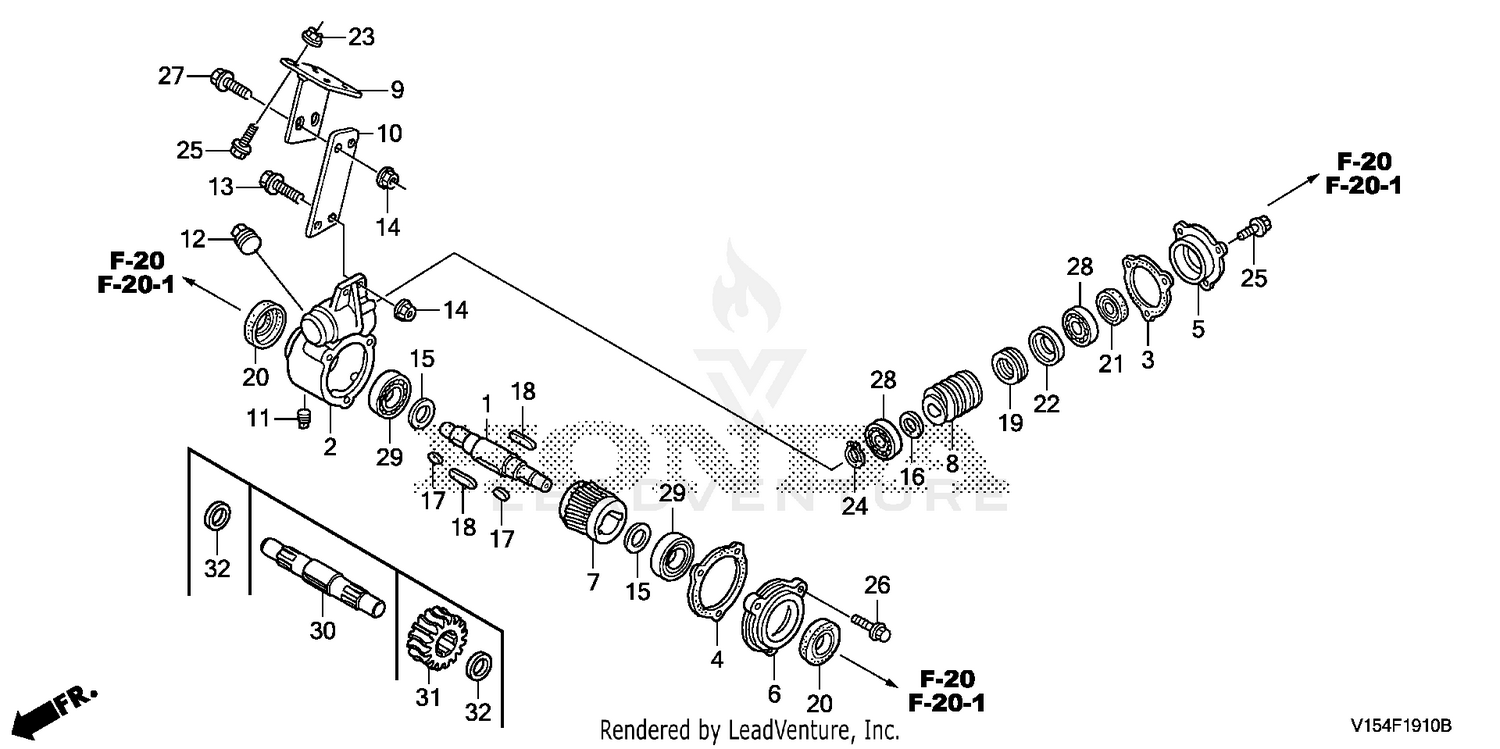

| Ref | Part Number | Description |
|---|
| 2 |
71211-V15-F00 |
CASE, AUGER TRANSMISSION Price: $173.22 |
| 3 |
71212-V15-000 |
GASKET A, AUGER TRANSMISSION Price: $2.74 |
| 4 |
71216-V15-000 |
GASKET B, AUGER TRANSMISSION Price: $3.76 |
| 5 |
71231-V15-000 |
COVER A, AUGER TRANSMISSION Price: $29.18 |
| 6 |
71236-V15-000 |
COVER B, AUGER TRANSMISSION Price: $34.08 |
| 8 |
73251-V15-F00 |
GEAR, DRIVE Price: $61.33 |
| 9 |
76715-V15-000 |
BRACKET A, AUGER HOUSING Price: $30.32 |
| 10 |
76718-V15-000 |
BRACKET B, AUGER HOUSING Price: $10.18 |
| 11 |
90103-V15-000 |
BOLT, DRAIN PLUG (PT 1/8) Price: $2.30 |
| 12 |
90104-V15-000 |
BOLT, DRAIN PLUG (PT 3/4) Price: $7.90 |
| 13 |
90173-S3Y-000 |
BOLT, RR. DAMPER (UPPER) Price: $5.56 |
| 14 |
90212-671-005 |
NUT, SELF-LOCK (10MM) Price: $1.10 |
| 16 |
90544-759-610 |
WASHER (20X29X2) Price: $6.28 |
| 19 |
91051-797-003 |
BEARING, THRUST (51204) Price: $27.54 |
| 20 |
91201-889-003 |
SEE PART DETAILS - PRI; OIL SEAL (30X45X8) Price: $11.64 |
| 21 |
91201-ZG9-U71 |
SEE PART DETAILS - PRI; OIL SEAL (25X38X7) (Honda Code 5230073). Price: $4.72 |
| 22 |
91558-V27-000 |
COLLAR, THRUST Price: $38.44 |
| 23 |
94050-08000 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143). Price: $1.18 |
| 24 |
94510-20000 |
CIRCLIP (OUTER) (20MM) Price: $1.66 |
| 25 |
95701-08020-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606. Price: $2.34 |
| 26 |
95701-08025-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325). Price: $2.24 |
| 27 |
95701-10022-00 |
BOLT, FLANGE (10X22) Price: $2.32 |
| 28 |
96100-60040-00 |
BEARING, RADIAL BALL (6004) Price: $20.76 |
| 29 |
96100-60060-00 |
BEARING, RADIAL BALL (6006) Price: $17.50 |
| 30 |
23377-V15-N00 |
SHAFT, AUGER Price: $181.08 |
| 31 |
73211-V15-N00 |
GEAR, DRIVEN (20T) Price: $132.88 |
