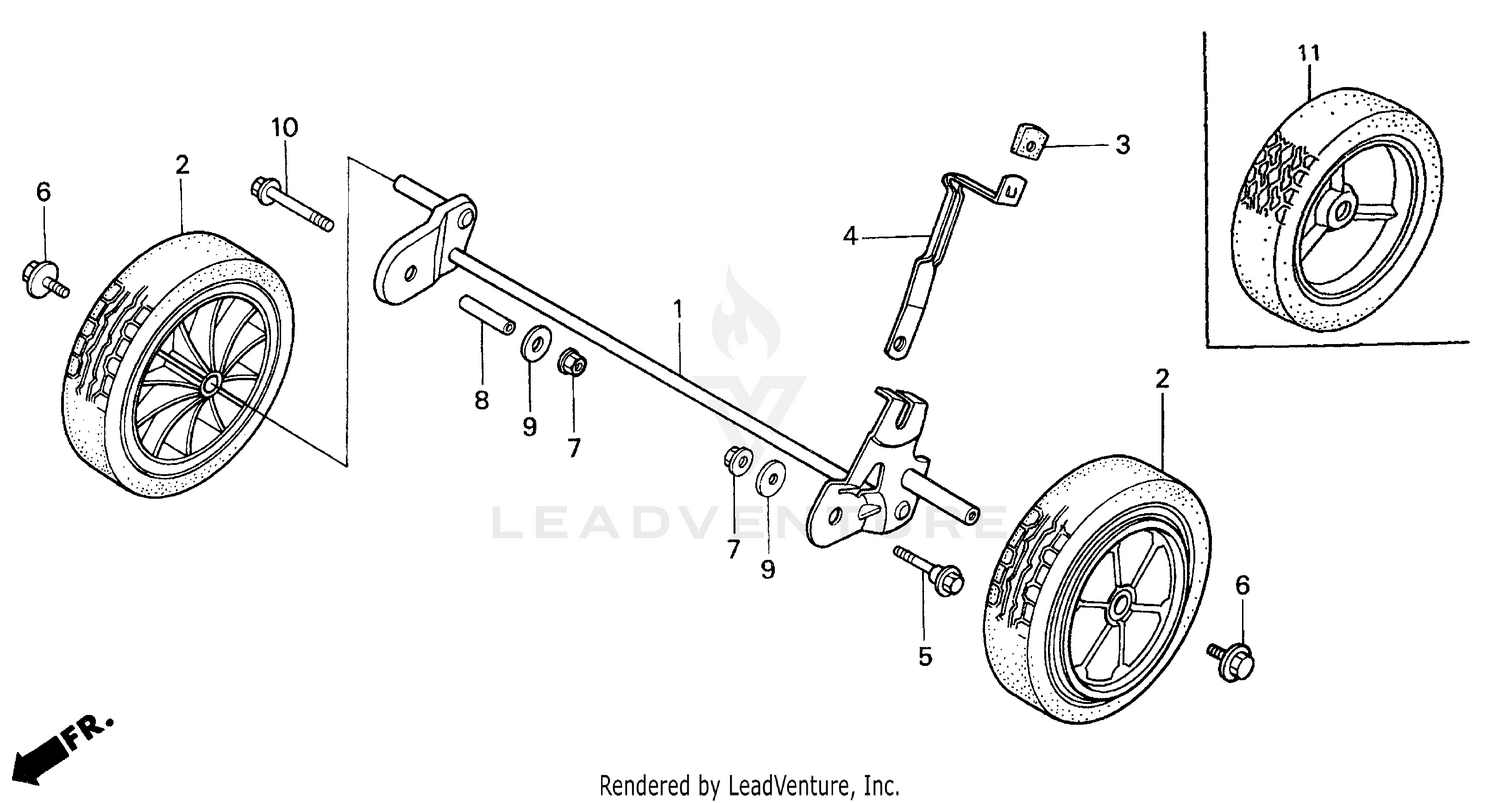

REAR WHEEL
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 42650-VA9-000 | SHAFT, RR. AXLE (NOT AVAILABLE) Price: $60.66 |
| 2 | 42710-VA9-000 | SEE PART DETAILS - SUP; WHEEL (7X1.5) Price: $37.25 |
| 2 | 42710-VD4-305 | SEE PART DETAILS - PRI; WHEEL (7") This part replaces 42710-VD4-G01. Price: $37.25 |
| 3 | 42952-VA4-000 | GRIP, ADJUSTER Price: $5.24 |
| 4 | 42961-VA9-000 | PLATE, RR. ADJUSTING Price: $15.48 |
| 5 | 90105-VA9-000 | BOLT, ADJUSTING CENTER Price: $4.12 |
| 6 | 90110-VA4-000 | SEE PART DETAILS - PRI; BOLT, WHEEL Price: $4.12 |
| 7 | 90309-428-731 | SEE PART DETAILS - PRI; NUT, FLANGE (8MM) Price: $4.62 |
| 8 | 91905-VA9-000 | COLLAR A, ADJUSTING CENTER Price: $6.34 |
| 9 | 94103-08000 | WASHER, PLAIN (8MM) Price: $0.82 |
| 10 | 95801-08050-00 | BOLT, FLANGE (8X50) Price: $4.12 |
