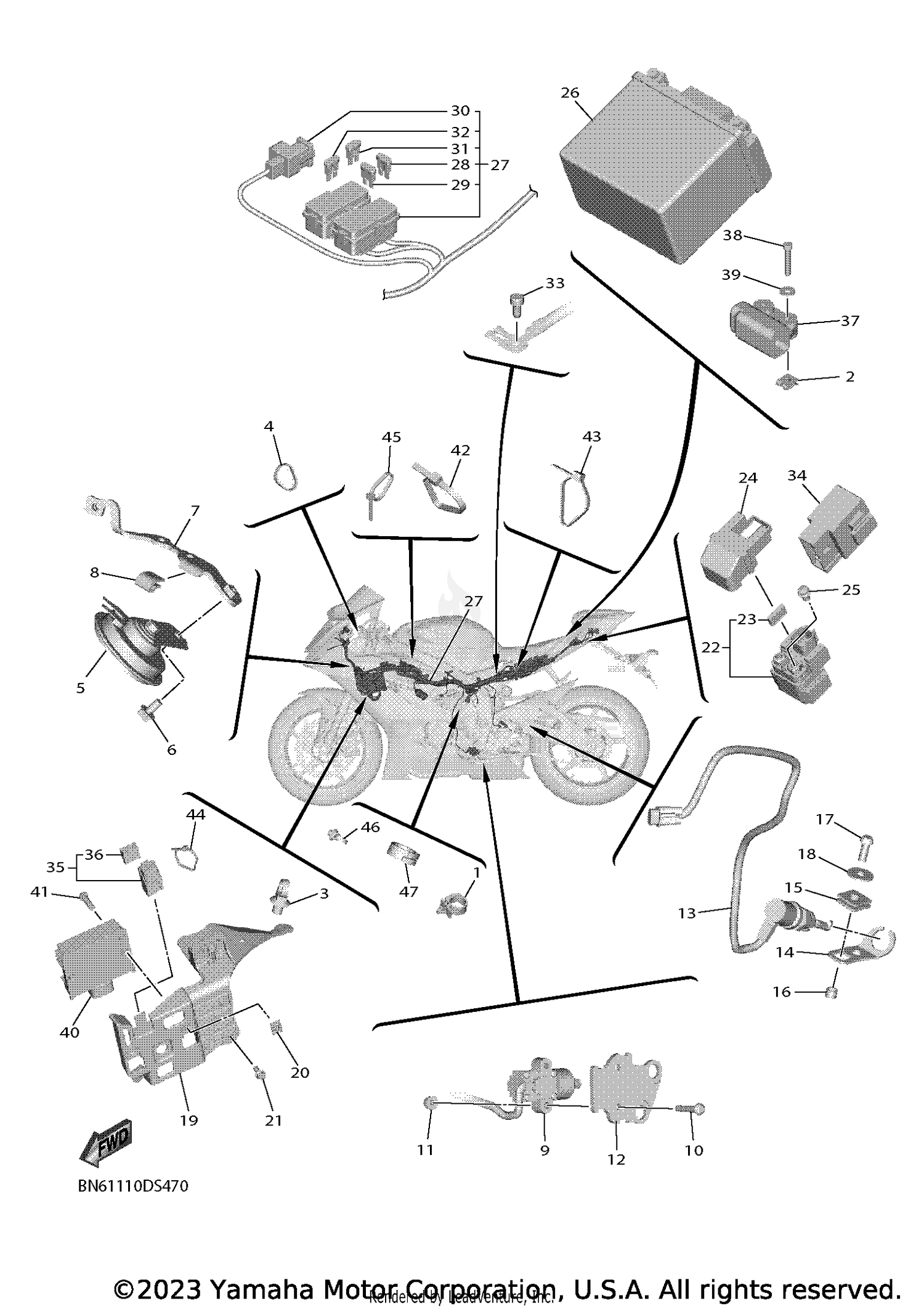

| Ref | Part Number | Description |
|---|
| 1 |
90464-17008-00 |
CLAMP Price: $2.85 |
| 2 |
90183-04039-00 |
NUT, spring Price: $8.49 |
| 3 |
90464-30010-00 |
CLAMP Price: $2.50 |
| 4 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 5 |
B67-83371-00-00 |
HORN Price: $76.99 |
| 6 |
95D32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $9.49 |
| 7 |
BN6-23377-00-00 |
BRACKET, HORN Price: $35.99 |
| 8 |
5RU-2139X-00-00 |
DAMPER Price: $3.10 |
| 9 |
BN6-82566-01-00 |
SWITCH, SIDE STAND This part replaces BN6-82566-00-00. Price: $113.99 |
| 10 |
92012-05025-00 |
BOLT, BUTTON HEAD Price: $3.85 |
| 11 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 12 |
2C0-27961-00-00 |
BRACKET, SENSOR 1 Price: $36.99 |
| 13 |
BN6-82530-01-00 |
STOP SWITCH ASSY This part replaces BN6-82530-00-00. Price: $39.99 |
| 14 |
13S-2144G-00-00 |
STAY, STOP SWITCH Price: $5.49 |
| 15 |
90480-12607-00 |
GROMMET Price: $10.49 |
| 16 |
90387-06023-00 |
COLLAR Price: $10.49 |
| 17 |
92017-06016-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 18 |
90201-06380-00 |
WASHER, PLATE Price: $0.65 |
| 19 |
BN6-2836H-00-00 |
BRACKET 5 Price: $62.99 |
| 20 |
90183-06069-00 |
NUT, SPRING Price: $7.49 |
| 21 |
95D02-06014-00 |
BOLT, FLANGE DEEP RECESS Price: $0.40 |
| 22 |
2CR-81940-00-00 |
STARTER RELAY ASSY Price: $66.99 |
| 23 |
1AE-82151-00-00 |
FUSE (30A-BL) Price: $8.49 |
| 24 |
5SL-82119-10-00 |
COVER, LEAD WIRE Price: $5.49 |
| 25 |
95022-06008-00 |
BOLT, FLANGE Price: $9.49 |
| 26 |
5TJ-82100-01-00 |
BATTERY ASSY (YTZ7S(F)) Price: $199.99 |
| 27 |
BN6-82590-12-00 |
WIRE HARNESS ASSY This part replaces BN6-82590-10-00. Price: $1,457.99 |
| 28 |
67F-82151-50-00 |
FUSE (15A) This part replaces 5JJ-82151-10-00. Price: $4.05 |
| 29 |
67F-82151-40-00 |
FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 30 |
5JW-82151-10-00 |
FUSE (50A) Price: $17.99 |
| 31 |
5JJ-82151-00-00 |
FUSE (7.5A-BL) Price: $7.49 |
| 32 |
5JJ-82151-80-00 |
FUSE (2A-BL) Price: $8.49 |
| 33 |
91380-06012-00 |
BOLT Price: $1.99 |
| 34 |
5VK-81950-43-00 |
RELAY ASSY (G8R-30Y-W4) This part replaces 5VK-81950-40-00. Price: $71.99 |
| 35 |
1TP-81950-00-00 |
RELAY ASSY (1TP-00) Price: $16.49 |
| 36 |
5EA-81952-00-00 |
HOLDER, RELAY Price: $8.49 |
| 37 |
5PS-82576-02-00 |
SENSOR, LEAN ANGLE This part replaces 5PS-82576-01-00. Price: $96.99 |
| 38 |
91317-04025-00 |
BOLT, HEX. SOCKET HEAD Price: $1.95 |
| 39 |
90201-042E0-00 |
WASHER, PLATE Price: $8.49 |
| 40 |
BN6-81960-01-00 |
RECTIFIER & REGULATOR ASSY This part replaces BN6-81960-00-00. Price: $118.99 |
| 41 |
92012-06020-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 42 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 43 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 44 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 46 |
90464-30011-00 |
CLAMP Price: $2.70 |
