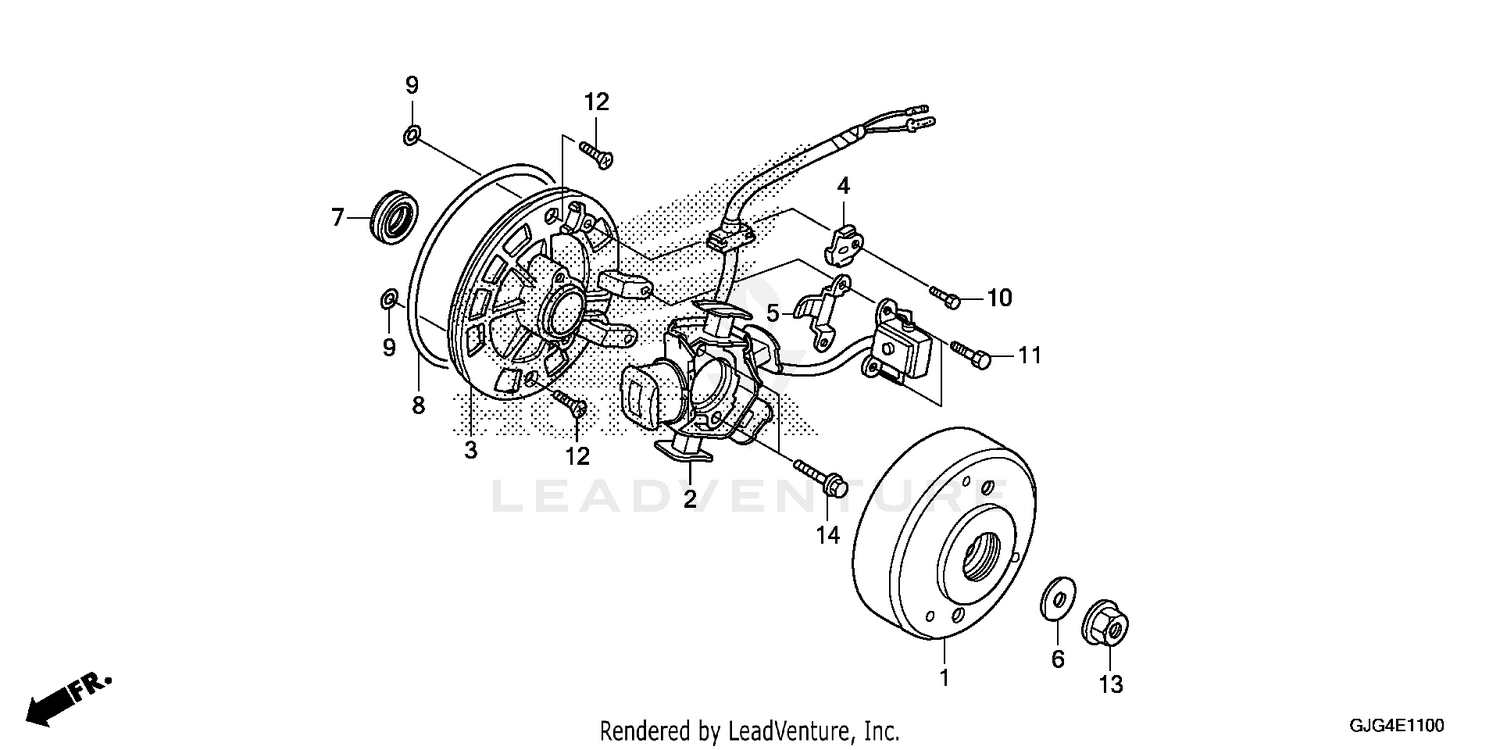

ALTERNATOR
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31110-GK4-941 | FLYWHEEL (MITSUBA) Price: $264.00 |
| 2 | 31120-GW8-671 | STATOR (MITSUBA) Price: $248.49 |
| 3 | 31131-GS9-020 | BASE, STATOR Price: $57.60 |
| 4 | 32961-GS9-010 | CLAMP, ALTERNATOR WIRE Price: $5.33 |
| 5 | 32962-GS9-000 | CLAMP, PULSER WIRE Price: $6.20 |
| 6 | 90410-KVR-C00 | WASHER (10MM) Price: $3.40 |
| 7 | 91202-GK4-722 | OIL SEAL (18.9X30X5) This part replaces 91202-GE0-003. Price: $7.71 |
| 8 | 91301-035-003 | O-RING (107X2) (ARAI) Price: $8.85 |
| 9 | 91317-GEL-A80 | O-RING (6X1.7) Price: $3.30 |
| 10 | 93301-05006-0H | BOLT, HEX. (5X6) Price: $0.73 |
| 11 | 93301-05010-0H | BOLT, HEX. (5X10) Price: $0.73 |
| 12 | 93600-06016-0A | SCREW, FLAT (6X16) (YAMADA) Price: $1.03 |
| 13 | 94050-10000 | NUT, FLANGE (10MM) Price: $1.62 |
