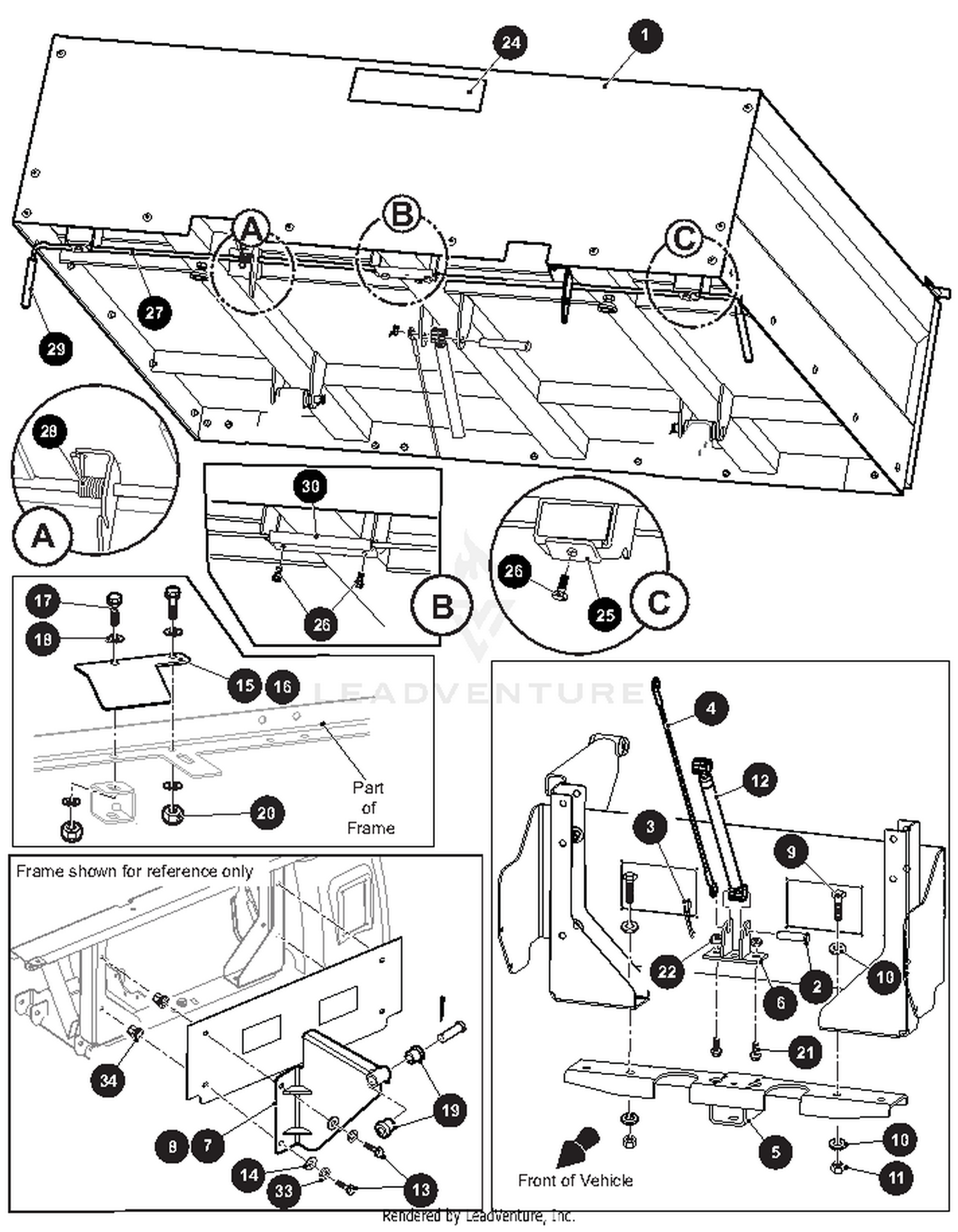

| Ref | Part Number | Description |
|---|
| 1 |
628000 |
BED, ALUMINUM, SHORT, TEXTURED BLACK Price: $1,788.95 |
| 2 |
14443G10 |
CLEVIS PIN,.50 X 3.00 Price: $14.99 |
| 3 |
21683G1 |
COTTER PIN, 15/32" X 2 1/16" Price: $2.99 |
| 4 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 5 |
647080 |
HITCH RECEIVER Price: $73.63 |
| 6 |
71283G02 |
LIFT BRACKET, ELEC Price: $59.99 |
| 7 |
629507G01 |
SVC-WELDMENT,ALUM BED MOUNT,LH Price: $124.99 |
| 8 |
629507G02 |
SVC-WELDMENT,ALUM BED MOUNT,RH Price: $124.99 |
| 9 |
00463G11 |
HEX HEAD BOLT, 7/16-14X 1-5/8 Price: $4.99 |
| 10 |
306982 |
FLAT WASHER, 7/16 Price: $2.99 |
| 11 |
00734G1 |
LOCK NUT, 7/16-14 Price: $1.99 |
| 12 |
71537G02 |
GAS SPRING Price: $91.99 |
| 13 |
00427G2 |
HEX HEAD BOLT, 3/8-16 X 1 1/4 Price: $3.99 |
| 14 |
00643G1 |
FLAT WASHER, 3/8 X 1.0 X .063 Price: $0.99 |
| 15 |
629512G01 |
SVC-BRKT,ALUM BED LATCH LH Price: $26.79 |
| 16 |
629512G02 |
SVC-BRKT,ALUM BED LATCH RH Price: $19.88 |
| 17 |
00427G2 |
HEX HEAD BOLT, 3/8-16 X 1 1/4 Price: $3.99 |
| 18 |
00643G1 |
FLAT WASHER, 3/8 X 1.0 X .063 Price: $0.99 |
| 19 |
624030 |
FLANGED BUSHING, IGUS Price: $1.99 |
| 20 |
11098G5 |
LOCK NUT, 3/8"-16 Price: $0.99 |
| 21 |
00463G4 |
HEX HEAD BOLT, 7/16"-14 X 1 1/2 Price: $5.99 |
| 22 |
00734G1 |
LOCK NUT, 7/16-14 Price: $1.99 |
| 24 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 25 |
71099G02 |
LATCH PLATE, KEEPER Not Available Price: |
| 26 |
01118G01 |
HEX HEAD BOLT, 1/4-20 X 5/8 Price: $2.99 |
| 27 |
74962G01 |
BED LATCH Price: $185.99 |
| 28 |
71538G01 |
TORSION SPRING, 1/2" DIA X 1" Price: $9.99 |
| 29 |
71704G01 |
HANDLE GRIP Price: $10.99 |
| 30 |
652440G02 |
BRACKET, LATCH RETAINER, ECOAT Not Available Price: |
| 33 |
120177 |
LOCK WASHER, 3/8 Price: $0.99 |
| 34 |
641848 |
NUT,INSERT,HEX,3/8-16 THREAD Price: $1.79 |
| 35 |
630935 |
SVC-DECAL,BBB ALUM TAILGATE Not Available Price: |
| 36 |
651672 |
SVC-DECAL, ALUM TAILGATE,BAD BOY Price: $7.39 |
