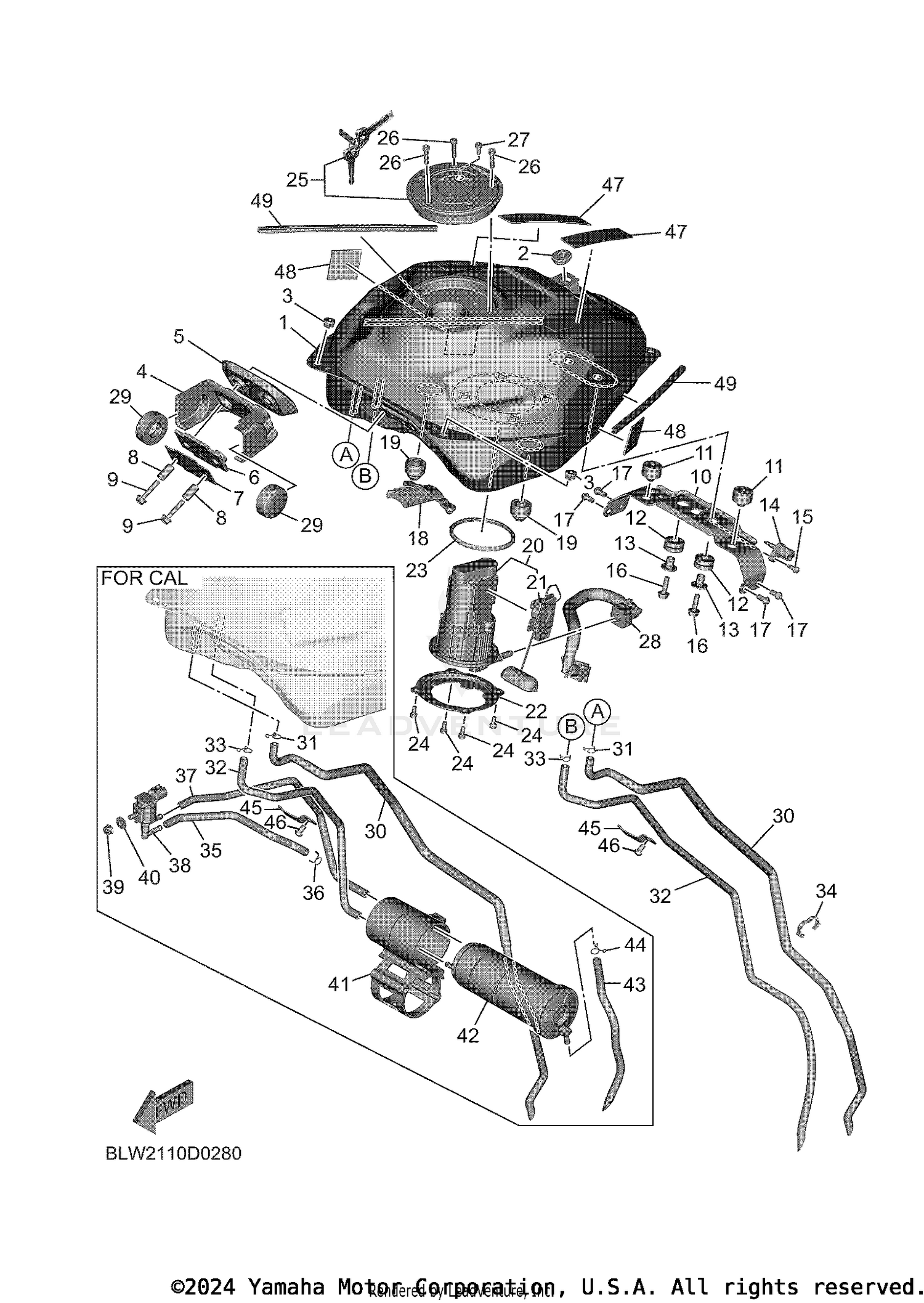

| Ref | Part Number | Description |
|---|
| 1 |
BLW-24110-00-00 |
FUEL TANK COMP. Price: $380.99 |
| 2 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 3 |
2RP-21719-00-00 |
GROMMET Price: $0.85 |
| 4 |
BLW-2412Y-00-00 |
BRACKET, TANK FITTING Price: $32.99 |
| 5 |
BLW-24181-00-00 |
DAMPER, LOCATING 1 Price: $18.49 |
| 6 |
BLW-24183-00-00 |
DAMPER, LOCATING 3 Price: $10.49 |
| 7 |
BLW-24186-00-00 |
WASHER, SPECIAL Price: $6.49 |
| 8 |
36Y-83913-01-00 |
COLLAR, LEVER 1 This part replaces 90387-06554-00. Price: $10.99 |
| 9 |
95812-06030-00 |
BOLT, FLANGE Price: $2.15 |
| 10 |
BLW-2413Y-00-00 |
BRACKET, TANK FITTING Price: $44.99 |
| 11 |
278-27114-00-00 |
STOPPER, MAIN STAND Price: $9.49 |
| 12 |
90480-16003-00 |
GROMMET Price: $10.49 |
| 13 |
90387-06287-00 |
COLLAR Price: $10.49 |
| 14 |
5YU-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $37.99 |
| 15 |
98517-05012-00 |
SCREW, PAN HEAD This part replaces 98502-05012-00. Price: $5.49 |
| 16 |
90105-06169-00 |
BOLT, FLANGE Price: $2.80 |
| 17 |
92017-06012-00 |
BOLT, BUTTON HEAD Price: $2.65 |
| 18 |
BLW-24182-00-00 |
DAMPER, LOCATING 2 Price: $22.99 |
| 19 |
BLW-23429-00-00 |
STOPPER Price: $4.65 |
| 20 |
BLW-13907-00-00 |
FUEL PUMP COMP. Price: $406.99 |
| 22 |
BLW-24491-00-00 |
BRACKET, FUEL PUMP Price: $16.49 |
| 23 |
1RC-24486-00-00 |
O-RING Price: $33.99 |
| 24 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 25 |
BLW-24602-00-00 |
CAP ASSY Price: $205.99 |
| 26 |
90110-05112-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 27 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 28 |
BLW-13971-00-00 |
PIPE, FUEL 1 Price: $82.99 |
| 29 |
3TB-24181-00-00 |
DAMPER, LOCATING 1 Price: $15.49 |
| 31 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 33 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 45 |
BLW-24135-00-00 |
CLAMP 1 Price: $8.49 |
| 46 |
92017-06010-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 47 |
90520-02013-00 |
DAMPER, PLATE Price: $2.50 |
| 48 |
90520-02826-00 |
DAMPER, PLATE Price: $0.20 |
