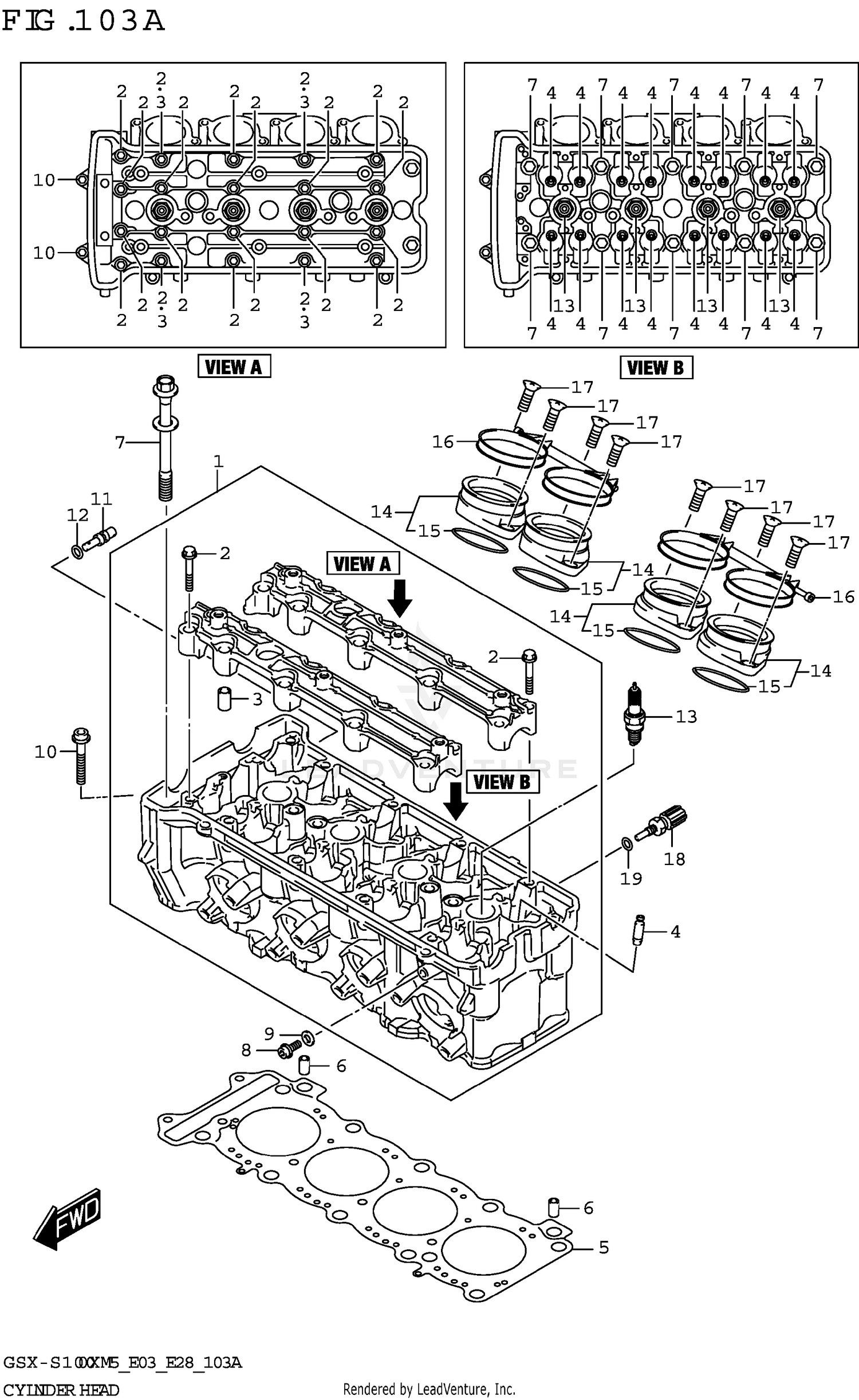

CYLINDER HEAD
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-48K00 | HEAD ASSY, CYLINDER Price: $1,700.65 |
| 6 | 04211-11169 | PIN Price: $2.15 |
| 7 | 11117-30G00 | BOLT, CYLINDER HEAD (L:105) Price: $11.50 |
| 8 | 01550-0612A | BOLT Price: $2.37 |
| 9 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 10 | 07120-0650A | BOLT Price: $3.91 |
| 11 | 09493-80005 | JET (#80) Price: $17.07 |
| 12 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 14 | 13101-48K00 | PIPE ASSY, INTAKE Price: $42.99 |
| 17 | 02122-0616B | SCREW Price: $2.39 |
| 18 | 13650-49X00 | SENSOR,TEMP Price: $111.41 |
