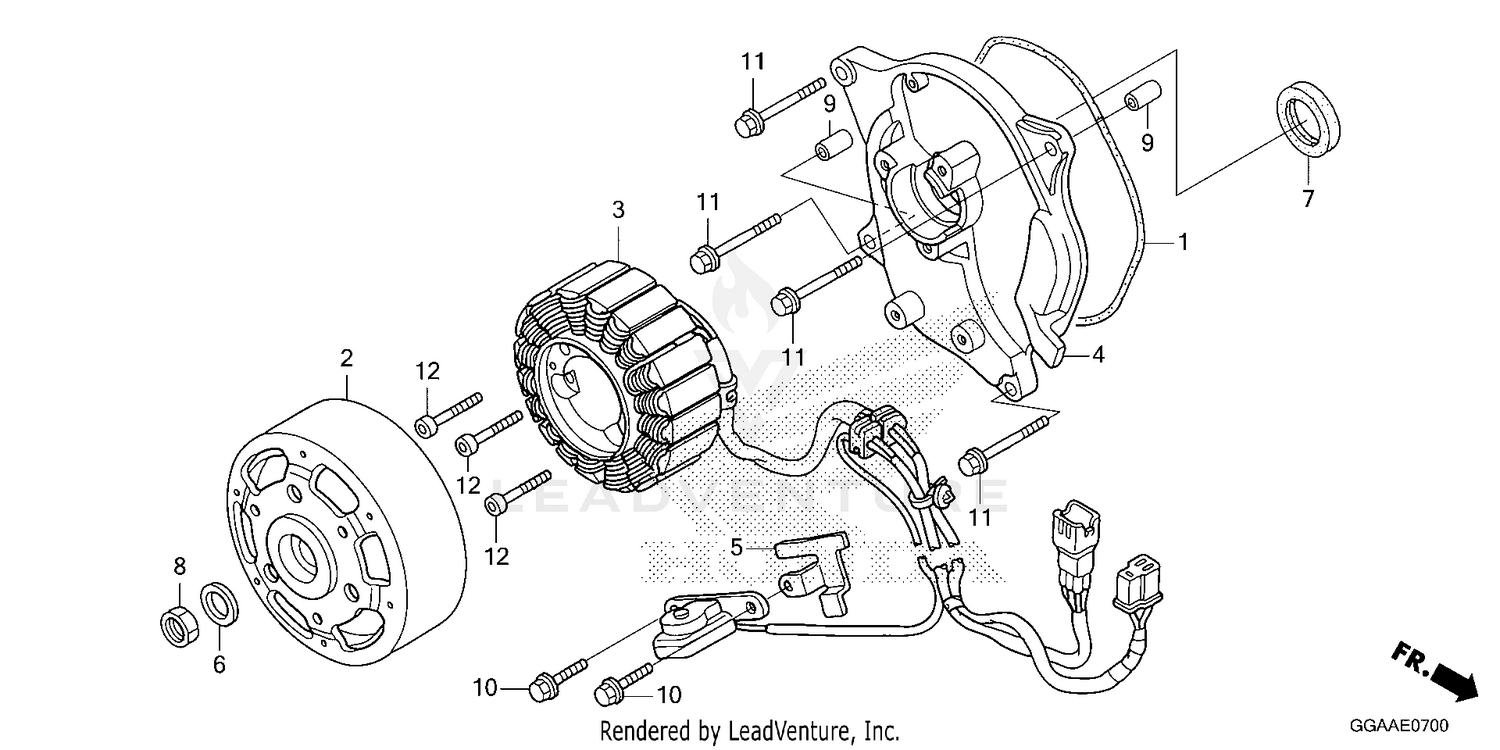

ALTERNATOR STATOR
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31135-GET-000 | GASKET, STATOR BASE Price: $10.65 |
| 2 | 31210-GET-003 | FLYWHEEL Price: $196.62 |
| 3 | 31220-GET-003 | STATOR Price: $342.58 |
| 4 | 31325-GET-A20 | STATOR BASE Price: $69.95 |
| 5 | 32907-GET-000 | CLAMP, ALTERNATOR WIRE Price: $4.62 |
| 6 | 90437-611-000 | WASHER, PLAIN (12MM) Price: $5.29 |
| 7 | 91202-KJ9-003 | OIL SEAL (20X32X6) Price: $5.98 |
| 8 | 94002-12200-0S | NUT, HEX. (12MM) Price: $1.47 |
| 9 | 94301-08100 | PIN A, DOWEL (8X10) Price: $2.35 |
| 10 | 96001-06014-00 | BOLT, FLANGE (6X14) Price: $1.88 |
| 11 | 96001-06025-00 | BOLT, FLANGE (6X25) Price: $2.20 |
