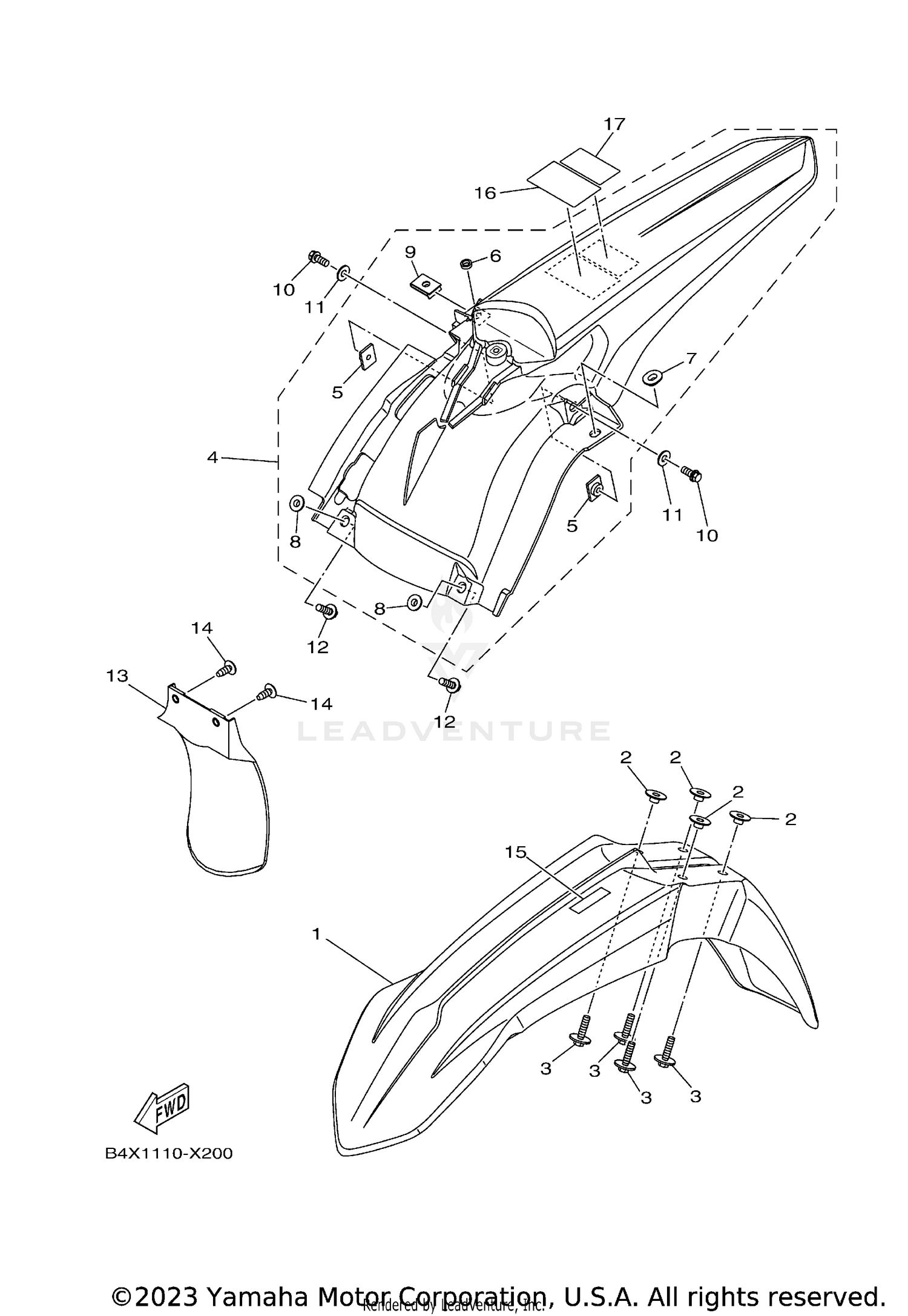

| Ref | Part Number | Description |
|---|
| 1 |
BR9-21511-00-00 |
FENDER, FRONT Price: $35.99 |
| 2 |
90387-06259-00 |
COLLAR Price: $9.49 |
| 3 |
90119-06268-00 |
BOLT, WITH WASHER Price: $2.45 |
| 4 |
B4X-21610-01-00 |
REAR FENDER COMP. This part replaces B4X-21610-00-00. Price: $44.99 |
| 5 |
5XE-21635-10-00 |
NUT, REAR FENDER Price: $14.49 |
| 6 |
90387-06069-00 |
COLLAR Price: $9.49 |
| 7 |
17D-14449-00-00 |
COLLAR Price: $8.49 |
| 8 |
90387-06009-00 |
COLLAR Price: $11.49 |
| 9 |
90183-060A7-00 |
NUT, SPRING Price: $9.49 |
| 10 |
90105-06100-00 |
BOLT, FLANGE This part replaces 90105-06099-00. Price: $8.49 |
| 11 |
90201-06032-00 |
WASHER, PLATE Price: $9.49 |
| 12 |
90119-06149-00 |
BOLT, WITH WASHER Price: $9.49 |
| 13 |
5TA-21642-00-00 |
GUARD, FLAP Price: $43.99 |
| 14 |
97702-60016-00 |
SCREW, TAPPING Price: $2.35 |
| 15 |
3XJ-2415E-A2-00 |
LABEL, CAUTION Price: $1.95 |
| 16 |
5PA-2118K-01-00 |
LABEL, CAUTION Price: $7.49 |
