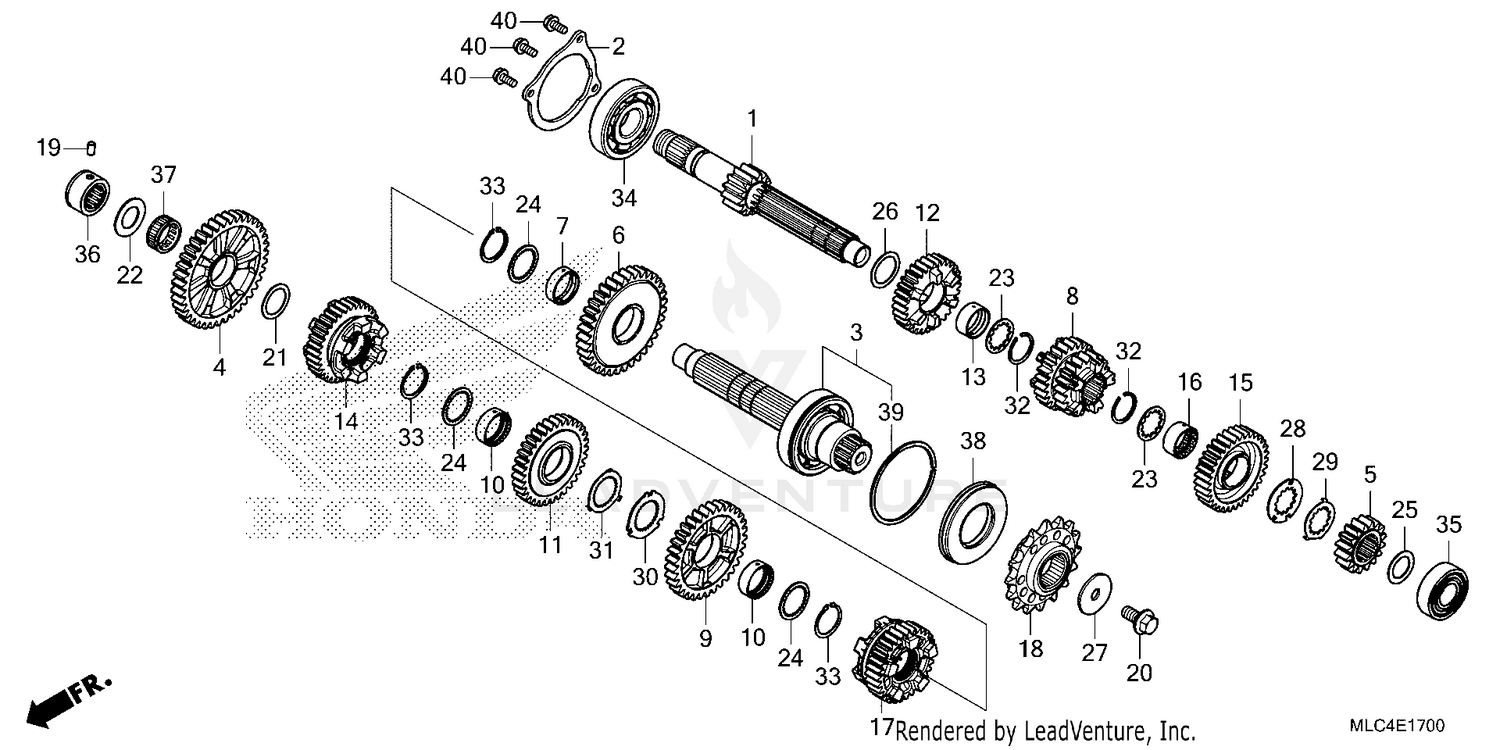

| Ref | Part Number | Description |
|---|
| 1 |
23211-MLB-D00 |
SHAFT, MAIN Price: $140.40 |
| 2 |
23212-MLB-D00 |
PLATE Price: $5.22 |
| 3 |
23220-MLB-D00 |
COUNTERSHAFT COMP Price: $159.16 |
| 4 |
23421-MLB-D00 |
GEAR (C-1) Price: $103.04 |
| 5 |
23431-MLB-D00 |
GEAR (M-2) Price: $50.18 |
| 6 |
23441-MLB-D00 |
GEAR (C-2) Price: $103.04 |
| 7 |
23442-MM4-000 |
COLLAR (28MM) Price: $26.98 |
| 8 |
23451-MLB-D00 |
GEAR (M-3) (M-4) Price: $121.73 |
| 9 |
23461-MLB-D00 |
GEAR (C-3) Price: $98.04 |
| 10 |
23462-MLB-D00 |
COLLAR (28X31X10) Price: $16.04 |
| 11 |
23481-MLB-D00 |
GEAR (C-4) Price: $98.04 |
| 12 |
23491-MLB-D00 |
GEAR (M-5) Price: $99.73 |
| 13 |
23492-MGZ-J00 |
COLLAR (25X28X12) Price: $15.29 |
| 14 |
23501-MLB-D00 |
GEAR (C-5) Price: $111.55 |
| 15 |
23511-MLB-D00 |
GEAR (M-6) Price: $99.73 |
| 16 |
23512-MV9-670 |
COLLAR, SPLINE (25X28X13) Price: $30.98 |
| 17 |
23521-MLB-D00 |
GEAR (C-6) Price: $111.55 |
| 18 |
23801-MLB-D00 |
SPROCKET (16T) Price: $41.11 |
| 19 |
24261-283-000 |
PIN, GEARSHIFT FORK GUIDE Price: $5.29 |
| 20 |
90037-422-003 |
BOLT, SPECIAL (10MM) Price: $9.20 |
| 21 |
90402-HA5-000 |
WASHER, THRUST (24MM) Price: $4.60 |
| 22 |
90451-MKW-D00 |
WASHER Price: $2.69 |
| 23 |
90451-KY2-000 |
WASHER, SPLINE (25X31X1.5) Price: $4.80 |
| 24 |
90452-MKR-D10 |
WASHER, SPLINE (28X27X1) Price: $3.87 |
| 25 |
90454-428-000 |
WASHER, THRUST (20X1.00) Price: $3.04 |
| 26 |
90456-MA6-000 |
WASHER, THRUST (25MM) Price: $3.04 |
| 27 |
90459-438-000 |
WASHER (10.2MM) Price: $7.33 |
| 28 |
90461-KY2-000 |
WASHER, SPLINE (25MM) Price: $6.11 |
| 29 |
90462-KAZ-000 |
WASHER, LOCK (25MM) Price: $10.64 |
| 30 |
90463-MLB-D00 |
WASHER (28MM) (M1.0) Price: $3.24 |
| 31 |
90464-MLB-D00 |
WASHER (28MM) (M1.0) Price: $3.24 |
| 32 |
90601-107-000 |
CIRCLIP (25MM) Price: $4.71 |
| 33 |
90603-MN4-000 |
CIRCLIP (28MM) Price: $4.71 |
| 34 |
91001-MLB-D01 |
BRG (63/28) Price: $37.96 |
| 35 |
91006-MGS-D31 |
BEARING, RADIAL BALL (6204U) Price: $19.80 |
| 36 |
91022-MJE-DB1 |
BEARING, NEEDLE (20MM) (NTN) Price: $49.93 |
| 37 |
91026-MEL-003 |
BEARING, NEEDLE (24X28X10) Price: $12.42 |
| 38 |
91207-MBB-013 |
OIL SEAL (39X72X8) Price: $15.53 |
| 39 |
94560-72200 |
RING, SNAP (72MM) Price: $3.92 |
