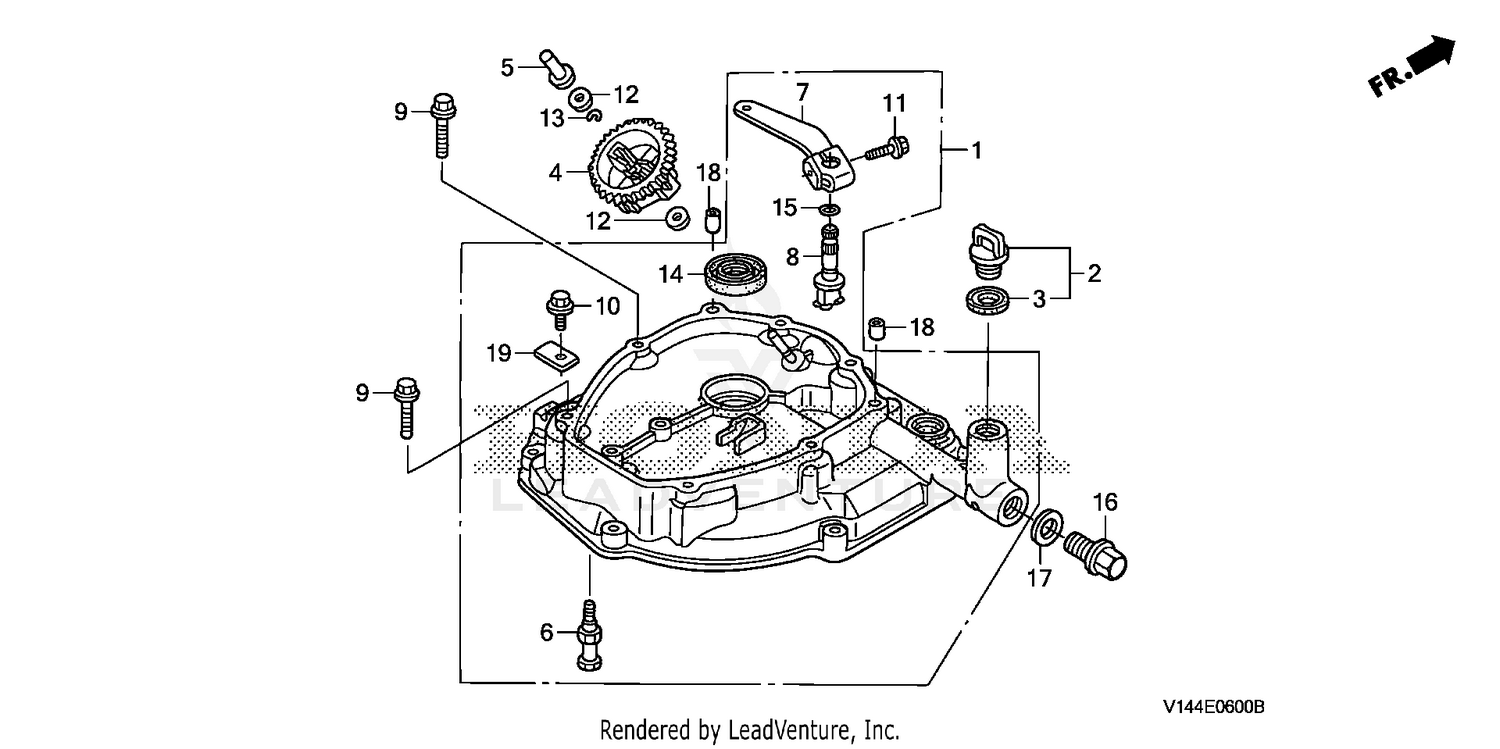

| Ref | Part Number | Description |
|---|
| 1 |
11340-Z0G-405 |
COVER, CRANKCASE Price: $161.54 |
| 2 |
15600-Z0T-820 |
CAP ASSY., OIL FILLER (Honda Code 7346570). Price: $1.08 |
| 3 |
15625-Z0T-800 |
GASKET, OIL FILLER CAP (Honda Code 7346588). Price: $4.92 |
| 4 |
16510-ZM7-000 |
GOVERNOR ASSY. Price: $17.04 |
| 5 |
16531-ZM7-000 |
SLIDER, GOVERNOR Price: $3.16 |
| 6 |
22533-729-000 |
PIN, ANCHOR Price: $14.88 |
| 7 |
22811-Z0G-000 |
ARM, CLUTCH Price: $15.38 |
| 8 |
22823-Z0G-000 |
CAM, CLUTCH Price: $20.84 |
| 9 |
90006-ZM7-000 |
BOLT, FLANGE (5X23) Price: $2.36 |
| 10 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 11 |
90112-187-010 |
BOLT, FLANGE (5X25) (Honda Code 4034500). Price: $3.00 |
| 12 |
90441-ZM7-000 |
WASHER (4.2X13) Price: $2.22 |
| 13 |
90602-ZM7-000 |
CLIP, GOVERNOR HOLDER Price: $1.82 |
| 14 |
91201-Z0G-003 |
OIL SEAL (19X30X5) Price: $7.04 |
| 15 |
91306-PJ4-000 |
SEE PART DETAILS - PRI; O-RING (6.8X1.9) Price: $4.54 |
| 16 |
92800-20000 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (20MM) (Honda Code 0209635). Price: $7.00 |
| 17 |
94109-20000 |
SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728). Price: $1.76 |
| 18 |
94301-06100 |
SEE PART DETAILS - PRI; PIN A, DOWEL (6X10) (Honda Code 0294256). Price: $2.82 |
