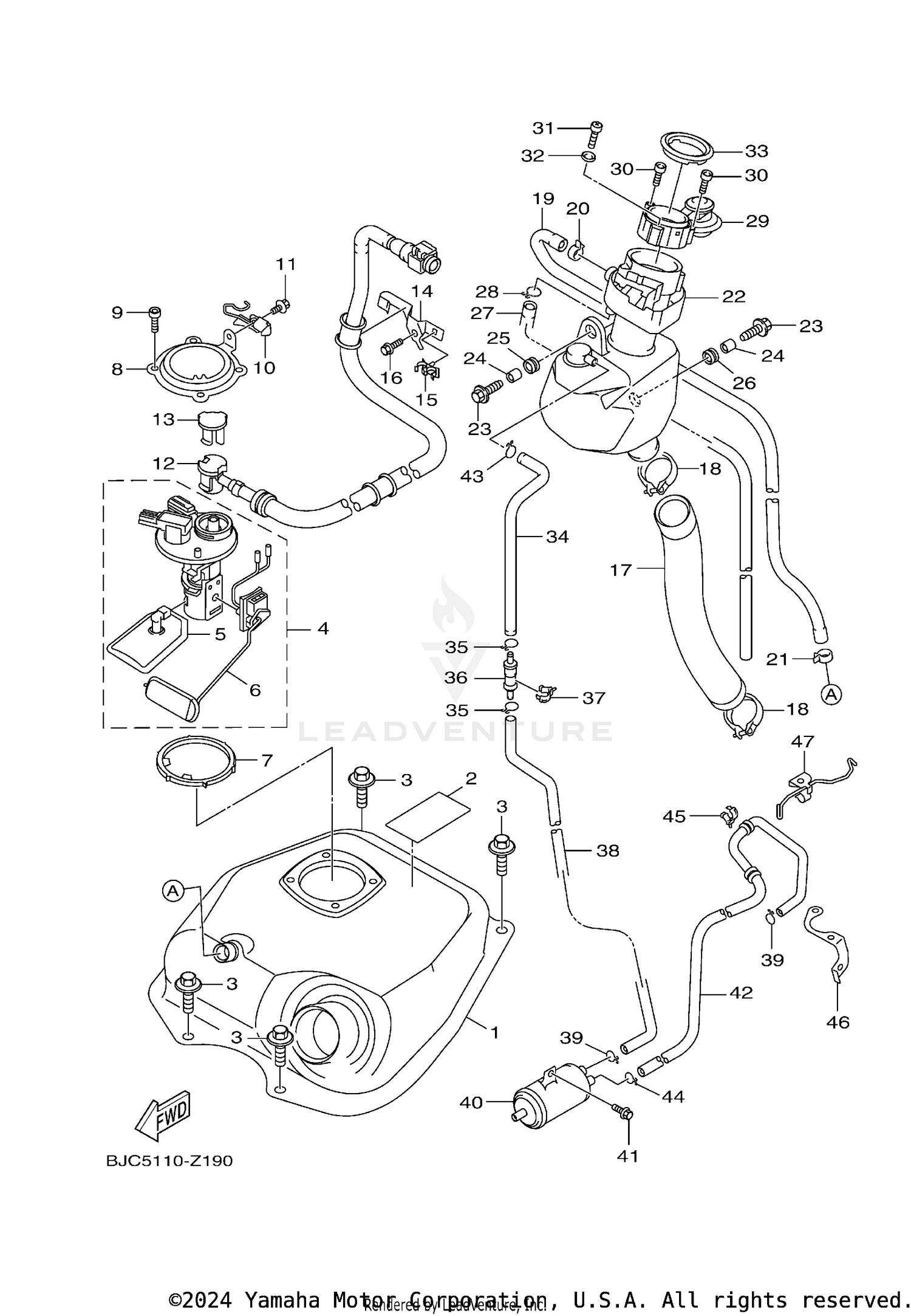

| Ref | Part Number | Description |
|---|
| 1 |
B8R-F4110-00-00 |
FUEL TANK COMP. Price: $62.99 |
| 2 |
5ML-F117G-00-00 |
PROTECTOR Price: $0.45 |
| 3 |
90119-068B4-00 |
BOLT, WITH WASHER Price: $1.65 |
| 4 |
B8R-E3907-01-00 |
FUEL PUMP COMP. Price: $198.99 |
| 7 |
1DB-F414G-01-00 |
SEAL Price: $9.49 |
| 8 |
B8R-F4491-00-00 |
BRACKET, FUEL PUMP Price: $6.49 |
| 9 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 10 |
B8R-F4491-10-00 |
BRACKET, FUEL PUMP Price: $7.49 |
| 11 |
95812-06010-00 |
BOLT, FLANGE This part replaces 95802-06010-00. Price: $3.20 |
| 12 |
B8R-E3971-00-00 |
PIPE, FUEL 1 Price: $83.99 |
| 13 |
B8R-F4135-00-00 |
CLAMP 1 Price: $0.85 |
| 14 |
B8R-F419A-00-00 |
HOLDER Price: $4.25 |
| 15 |
90464-16803-00 |
CLAMP Price: $0.85 |
| 16 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 17 |
BJC-F4316-00-00 |
PIPE 6 Price: $92.99 |
| 18 |
90450-55803-00 |
HOSE CLAMP ASSY Price: $3.50 |
| 19 |
BJC-F4317-00-00 |
PIPE 7 Price: $30.99 |
| 20 |
90467-18185-00 |
CLIP Price: $3.40 |
| 21 |
90467-14806-00 |
CLIP Price: $1.00 |
| 22 |
BJC-F4280-00-00 |
SUB FUEL TANK Price: $162.99 |
| 23 |
90119-06864-00 |
BOLT, WITH WASHER Price: $1.75 |
| 24 |
90387-07598-00 |
COLLAR Price: $6.49 |
| 25 |
90480-18290-00 |
GROMMET Price: $9.49 |
| 26 |
90480-01326-00 |
GROMMET Price: $0.80 |
| 27 |
B8R-F4318-00-00 |
PIPE, OVERFLOW Price: $4.25 |
| 28 |
90467-12052-00 |
CLIP Price: $10.49 |
| 29 |
BJC-F4602-00-00 |
CAP ASSY Price: $80.99 |
| 30 |
90155-04800-00 |
SCREW, FLAT FILLISTER Price: $1.40 |
| 31 |
98507-04010-00 |
SCREW, PAN HEAD Price: $3.55 |
| 32 |
92907-04600-00 |
WASHER Price: $1.85 |
| 33 |
B8R-F467E-00-00 |
CAP Price: $3.50 |
| 34 |
BJC-F4313-00-00 |
PIPE 3 Price: $7.49 |
| 35 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 36 |
5ML-F4180-20-00 |
ROLL OVER VALVE ASSY Price: $15.49 |
| 37 |
BF9-F4136-00-00 |
CLAMP 2 Price: $0.70 |
| 38 |
BJC-F4314-00-00 |
PIPE 4 Price: $9.49 |
| 39 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 40 |
B2T-F4170-00-00 |
CANISTER ASSY Price: $16.49 |
| 41 |
90109-06202-00 |
BOLT Price: $3.10 |
| 42 |
BJC-F4322-00-00 |
PIPE 11 Price: $18.49 |
| 43 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 44 |
90467-08021-00 |
CLIP This part replaces 90467-08075-00. Price: $9.49 |
| 45 |
90464-10800-00 |
CLAMP Price: $2.35 |
| 46 |
BJC-F637H-00-00 |
HOLDER, WIRE 2 Price: $3.00 |
