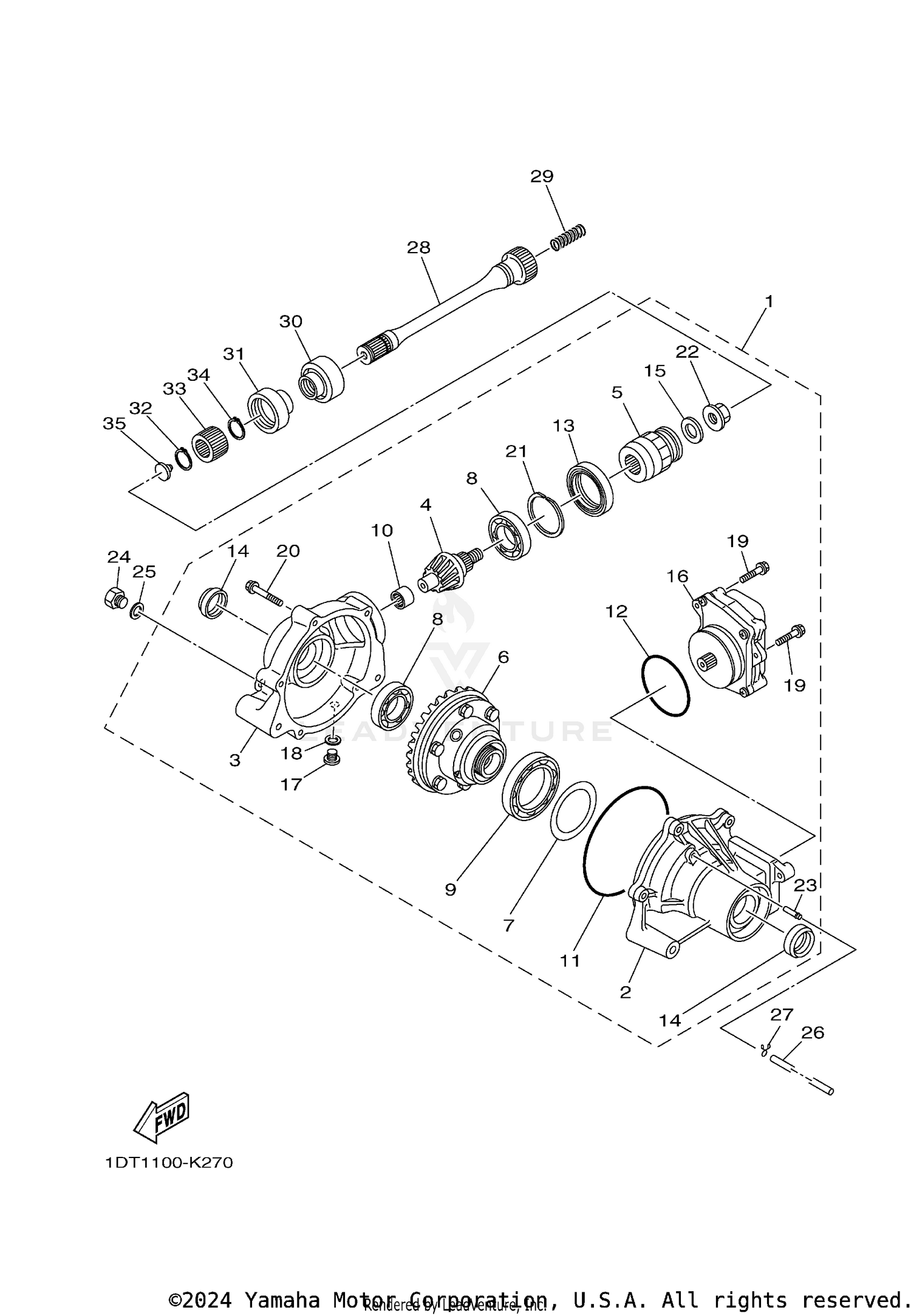

| Ref | Part Number | Description |
|---|
| 1 |
1HP-46160-01-00 |
FRONT AXLE GEAR CASE COMP. Price: $2,048.99 |
| 2 |
3B4-46162-01-00 |
HOUSING, BEARING 2 Price: $392.99 |
| 3 |
3B4-46161-00-00 |
HOUSING, SHAFT DRIVE 2 Price: $275.99 |
| 4 |
1XD-46141-00-00 |
PINION, DRIVE 2 This part replaces 3B4-46141-00-00. Price: $265.99 |
| 5 |
3B4-67839-10-00 |
CUPLING Price: $178.99 |
| 6 |
1XD-46470-01-00 |
LIMITED SLIP DIFF. ASSY This part replaces 3B4-46470-03-00. Price: $882.99 |
| 8 |
93306-00612-00 |
BEARING This part replaces 93306-00613-00. Price: $51.99 |
| 9 |
3B4-46164-00-00 |
BEARING 1 Price: $93.99 |
| 10 |
3B4-46166-00-00 |
BEARING 3 Price: $30.99 |
| 11 |
3B4-46134-00-00 |
O-RING 1 Price: $19.99 |
| 12 |
3B4-46135-00-00 |
O-RING 2 Price: $5.99 |
| 13 |
93105-46001-00 |
OIL SEAL Price: $23.99 |
| 14 |
3B4-46163-00-00 |
SEAL, OIL 1 Price: $19.99 |
| 15 |
3B4-47359-00-00 |
WASHER Price: $8.49 |
| 16 |
1HP-4616A-00-00 |
SERVO MOTOR COMP Price: $585.99 |
| 17 |
90340-10001-00 |
PLUG, STRAIGHT SCREW Price: $6.49 |
| 18 |
90430-10003-00 |
GASKET Price: $9.49 |
| 19 |
95812-06014-00 |
BOLT, FLANGE Price: $6.49 |
| 20 |
95817-08040-00 |
BOLT, FLANGE This part replaces 95812-08040-00. Price: $7.49 |
| 21 |
3B4-46142-00-00 |
RING, HOLE SNAP 1 Price: $11.99 |
| 22 |
4WV-46145-11-00 |
NUT 1 Price: $13.49 |
| 23 |
5GH-46293-00-00 |
TUBE Price: $7.49 |
| 24 |
90340-14029-00 |
PLUG, STRAIGHT SCREW Price: $4.60 |
| 25 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 26 |
90445-072G8-00 |
HOSE (L310) This part replaces 90445-070F1-00. Price: $32.99 |
| 27 |
90467-07029-00 |
CLIP Price: $2.60 |
| 28 |
1HP-G6173-00-00 |
SHAFT, DRIVE 2 Price: $130.99 |
| 29 |
90501-20361-00 |
SPRING, COMPRESSION Price: $14.49 |
| 30 |
5KM-46137-00-00 |
SEAL 2 Price: $17.99 |
| 31 |
5KM-46136-00-00 |
SEAL 1 Price: $9.49 |
| 32 |
99009-19400-00 |
CIRCLIP Price: $9.49 |
| 33 |
5KM-46126-00-00 |
COUPLING Price: $71.99 |
| 34 |
93410-22039-00 |
CIRCLIP Price: $9.49 |
