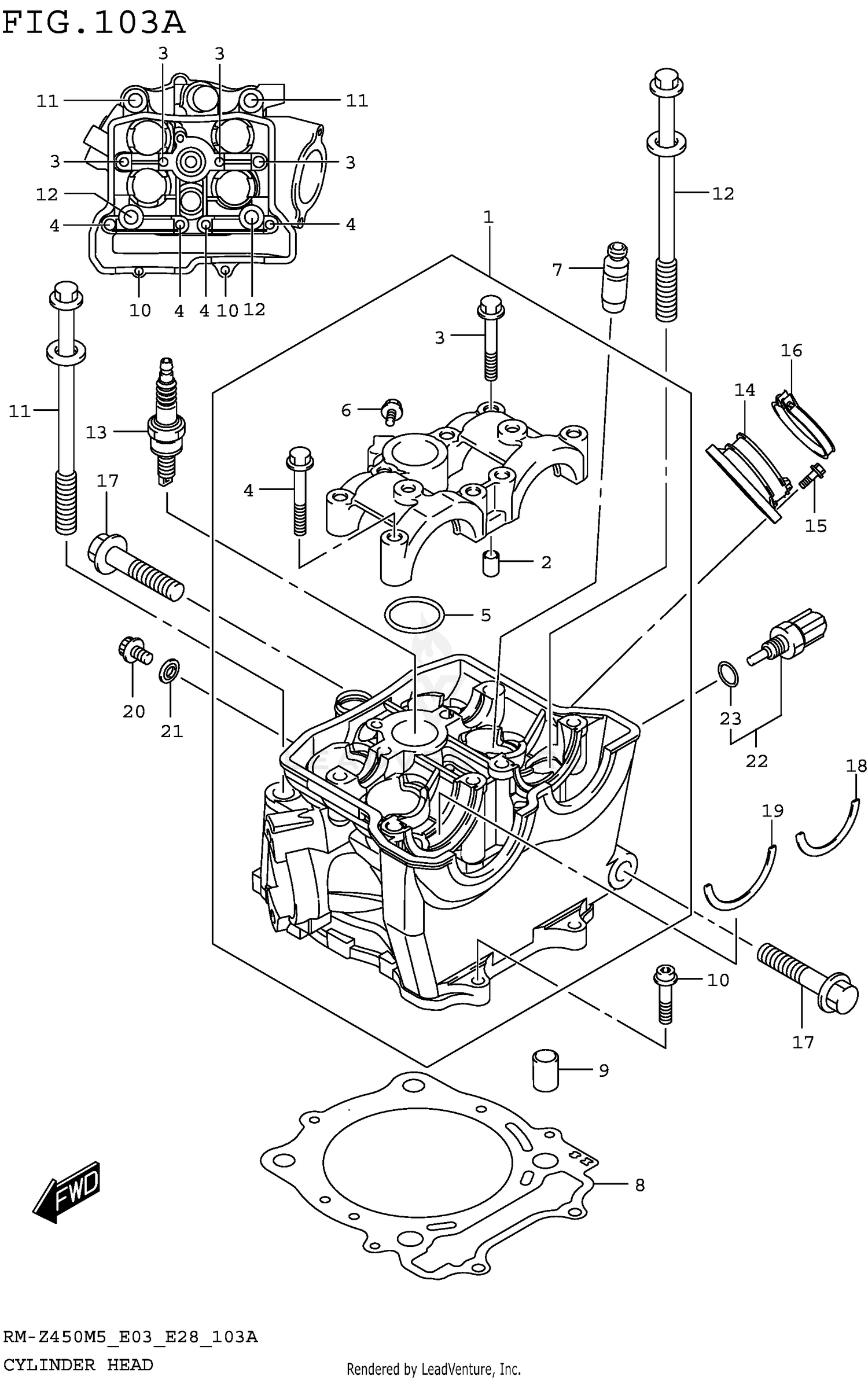

CYLINDER HEAD
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-37K00 | HEAD ASSY,CYLINDER Price: $849.65 |
| 6 | 09103-06188 | BOLT (6X10) Price: $3.06 |
| 9 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 10 | 07120-0625A | BOLT Price: $3.02 |
| 11 | 11117-28H00 | BOLT,CYLINDER HEAD (L:140) Price: $20.38 |
| 12 | 11161-45G00 | BOLT,CYLINDER HEAD (L:120) Price: $11.50 |
| 14 | 13101-37K01 | PIPE ASSY,INTAKE Price: $65.14 |
| 15 | 01547-0620A | BOLT Price: $2.45 |
| 16 | 13170-35G01 | CLAMP,INTAKE PIPE Price: $16.89 |
| 17 | 09103-10116 | BOLT (10X43) Price: $7.43 |
| 18 | 12749-49H00 | C-RING Price: $4.64 |
| 19 | 12749-49H10 | C-RING Price: $5.23 |
| 21 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 22 | 13650-14G00 | SENSOR,WATER TEMP Price: $66.10 |
