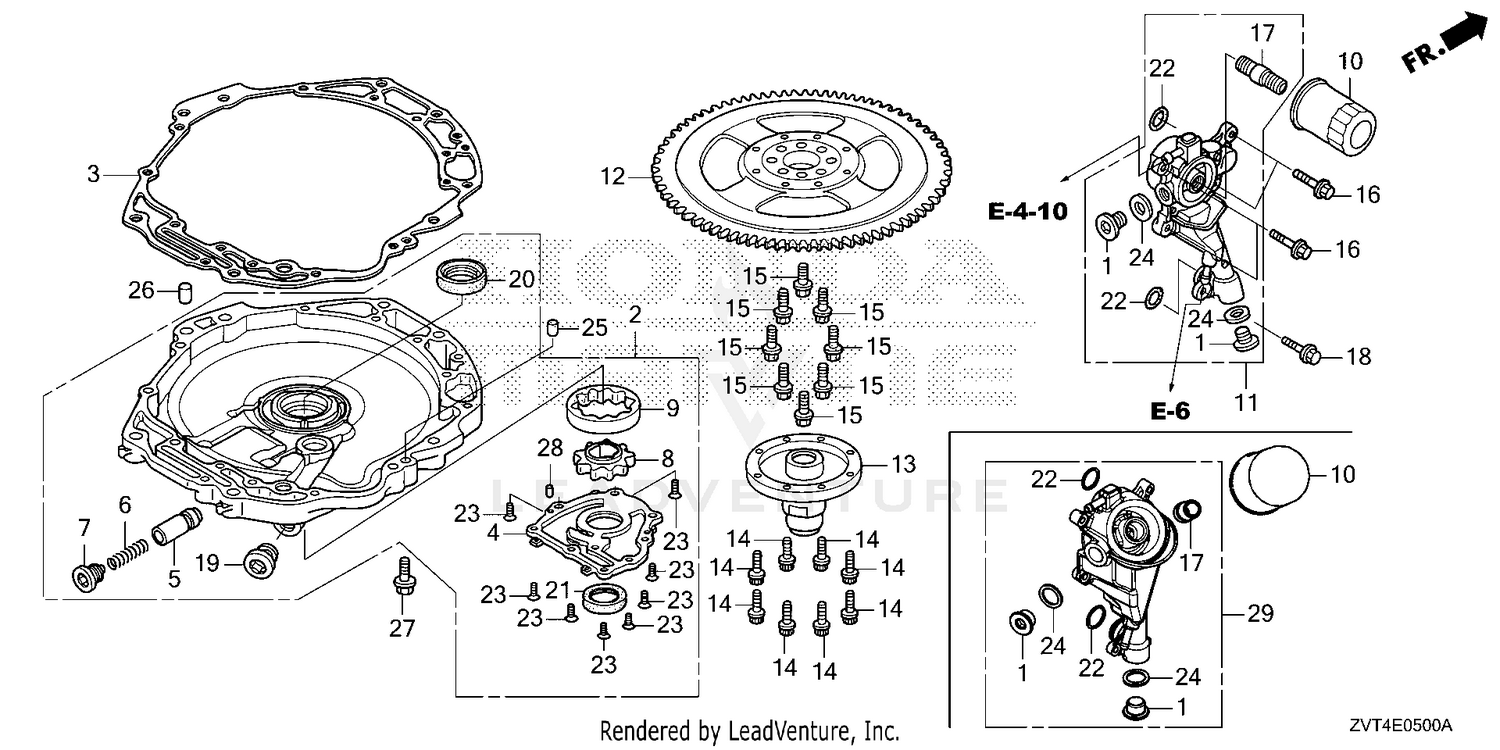

| Ref | Part Number | Description |
|---|
| 1 |
12217-ZY9-M01 |
BOLT, SEALING (20MM) Price: $4.14 |
| 2 |
15100-ZY6-030ZA |
PUMP, OIL *NH8* Price: $692.98 |
| 3 |
15112-ZVT-B13 |
GSKT, OIL PUMP BODY Price: $57.20 |
| 4 |
15121-ZY6-000 |
COVER, OIL PUMP Price: $82.48 |
| 5 |
15231-PE0-000 |
VALVE, RELIEF (Honda Code 1599497). Price: $19.34 |
| 6 |
15232-PG6-000 |
SPRING, RELIEF VALVE Price: $8.08 |
| 7 |
15233-PC6-000 |
BOLT, SEALING (18MM) (Honda Code 1460971). Price: $11.70 |
| 8 |
15331-ZW5-003 |
ROTOR, OIL PUMP (INNER) Price: $57.02 |
| 9 |
15341-ZW5-003 |
ROTOR, OIL PUMP (OUTER) Price: $47.62 |
| 10 |
15400-RTA-003 |
FILTER, OIL Price: $11.24 |
| 12 |
31110-ZVT-B10 |
FLYWHEEL Price: $660.92 |
| 13 |
31116-ZY3-020 |
BOSS, FLYWHEEL Price: $97.33 |
| 14 |
90002-ZW5-013 |
SEE PART DETAILS - PRI; BOLT, SPECIAL (8MM) Price: $3.28 |
| 15 |
90011-PH3-000 |
BOLT, FLANGE (12MM) Price: $12.46 |
| 16 |
90014-ZZ5-M01 |
BOLT, FLANGE (6X25) Price: $2.56 |
| 17 |
90015-PH1-013 |
HOLDER, OIL FILTER Price: $10.34 |
| 18 |
90014-ZZ5-M01 |
BOLT, FLANGE (6X25) Price: $2.56 |
| 19 |
90081-PH7-000 |
BOLT, SEALING (22MM) (NOT AVAILABLE) Price: $13.34 |
| 20 |
91201-ZW5-003 |
OIL SEAL (46X60X9) Price: $16.68 |
| 21 |
91212-P01-003 |
OIL SEAL (31X46X7) (NOK) Price: $15.20 |
| 22 |
91360-VD6-003 |
O-RING (22.5X2.4) Price: $1.80 |
| 23 |
93600-06016-0A |
SCREW, FLAT (6X16) (YAMADA) Price: $1.24 |
| 24 |
94109-20000 |
SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728). Price: $1.76 |
| 25 |
94301-10160 |
SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206). Price: $3.10 |
| 26 |
94301-14200 |
SEE PART DETAILS - PRI; PIN A, DOWEL (14X20) Price: $3.10 |
| 27 |
95701-08032-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) (Honda Code 2602241). Price: $2.78 |
| 28 |
96220-50080 |
ROLLER (5X8) Price: $0.64 |
