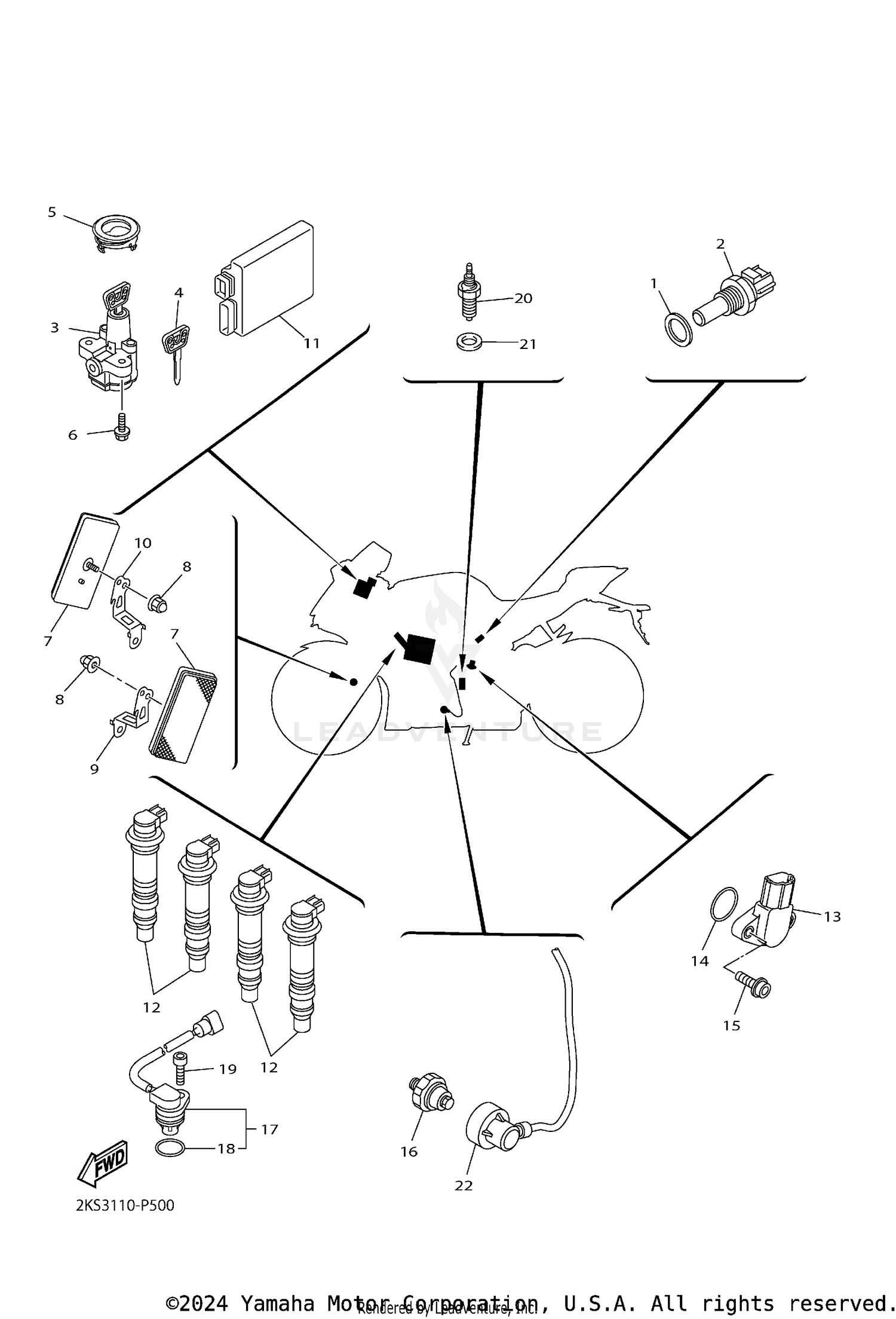

ELECTRICAL 1
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 90430-10004-00 | GASKET Price: $7.49 |
| 2 | 52B-H3591-00-00 | THERMO UNIT This part replaces 4P9-83591-00-00. Price: $37.99 |
| 3 | 2CR-82501-11-00 | MAIN SWITCH STEERING LOCK This part replaces 2CR-82501-10-00. Price: $187.99 |
| 5 | 36P-82552-00-00 | CAP, SWITCH Price: $16.49 |
| 6 | 90109-08196-00 | BOLT This part replaces 90109-08195-00. Price: $9.49 |
| 7 | 11H-85110-01-00 | REFLECTOR ASSY Price: $30.99 |
| 8 | 95702-05500-00 | NUT, WITH WASHER Price: $0.95 |
| 9 | 2CR-85112-00-00 | BRACKET, REFLECTOR 1 Price: $24.99 |
| 10 | 2CR-85122-00-00 | BRACKET, REFLECTOR 2 Price: $28.99 |
| 11 | BX4-8591A-41-00 | ENGINE CONTROL UNIT ASSY This part replaces BX4-8591A-40-00. Price: $1,556.99 |
| 12 | 2CR-82310-00-00 | IGNITION COIL ASSY Price: $149.99 |
| 13 | 2CR-85899-00-00 | SENSOR, GEAR POSITION Price: $103.99 |
| 14 | 93210-17008-00 | O-RING Price: $2.65 |
| 15 | 90110-05038-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 16 | 1WS-82504-01-00 | OIL PRESSURE SWITCH ASSY This part replaces 1WS-82504-00-00. Price: $76.99 |
| 17 | 5VY-85896-02-00 | SENSOR, CAM POSITION This part replaces 5VY-85896-01-00. Price: $155.99 |
| 18 | 4D9-81168-00-00 | O-RING Price: $7.49 |
| 19 | 91314-06020-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 20 | 3GB-82540-01-00 | NEUTRAL SWITCH ASSY Price: $63.99 |
| 21 | 90430-10148-00 | GASKET Price: $5.99 |
