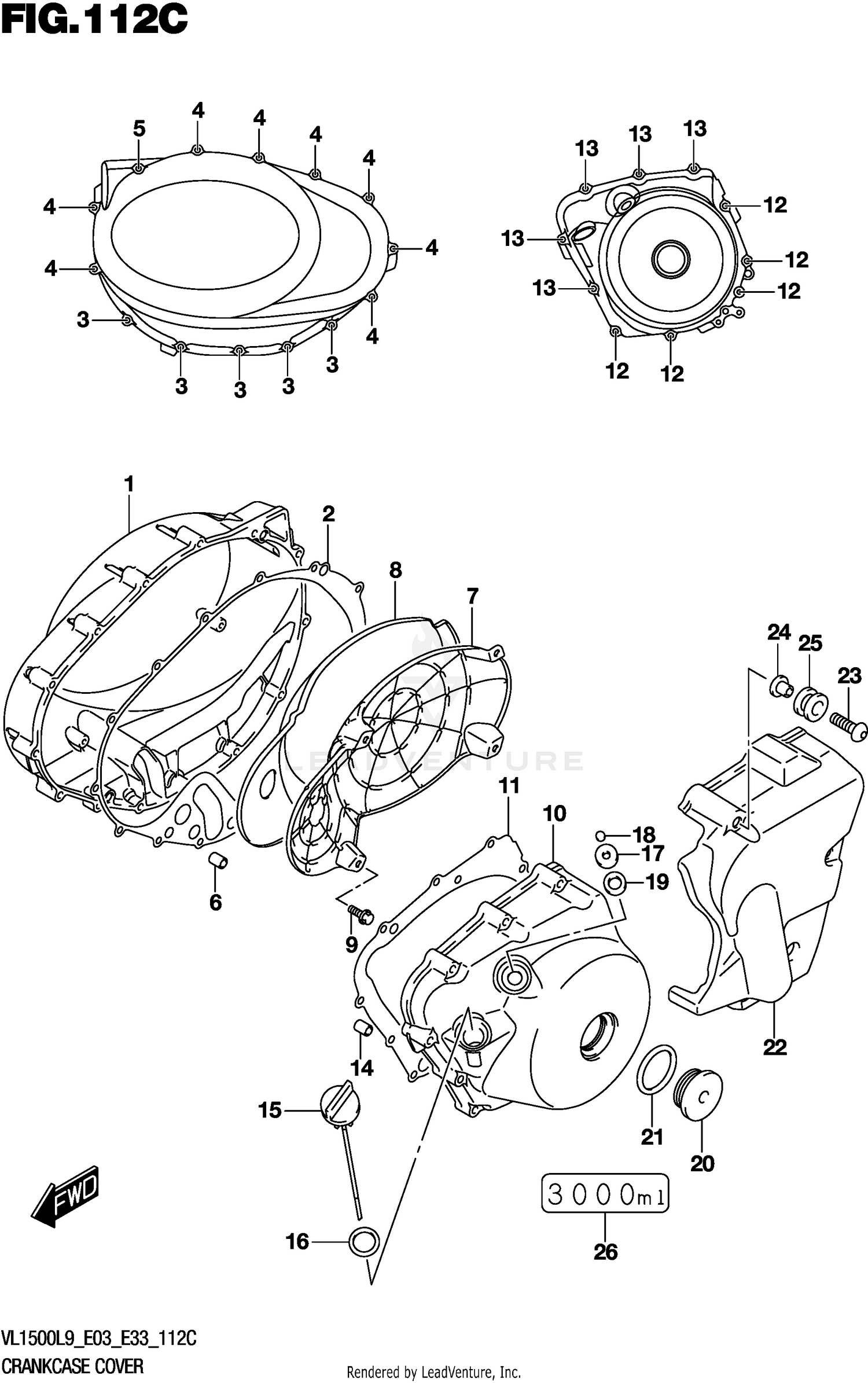

CRANKCASE COVER (VL1500TL9 E03)
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11341-40H01 | COVER Price: $821.15 |
| 3 | 09103-06213 | BOLT (6X30) Price: $2.87 |
| 4 | 09103-06215 | BOLT (6X40) Price: $3.27 |
| 5 | 09103-06238 | BOLT (6X50) Price: $3.21 |
| 6 | 04211-09189 | PIN Price: $1.99 |
| 7 | 11342-40H00 | PLATE Price: $36.16 |
| 8 | 11343-40H00 | DAMPER Price: $64.35 |
| 9 | 01547-0612A | BOLT Price: $2.45 |
| 10 | 11351-40H01 | COVER Price: $661.37 |
| 12 | 09103-06213 | BOLT (6X30) Price: $2.87 |
| 13 | 09103-06215 | BOLT (6X40) Price: $3.27 |
| 14 | 04211-09149 | PIN (8.5X18X2.3) Price: $1.99 |
| 15 | 11971-09403 | GAUGE, OIL LEVEL Price: $12.92 |
| 16 | 09280-17003 | O-RING (D:3.1,ID:16.8) Price: $1.99 |
| 17 | 09248-14011 | PLUG (14X12) Price: $3.68 |
| 18 | 09250-08012 | CAP (OD:12) Price: $2.27 |
| 19 | 09168-14002 | GASKET (13.8X18.8X4.8) Price: $2.75 |
| 20 | 09259-36008 | PLUG (36X10) Price: $9.95 |
| 22 | 11361-40H00 | COVER Price: $183.27 |
| 23 | 09139-06028 | SCREW (6X20) Price: $4.50 |
| 24 | 09169-06062 | WASHER (6.3X17X1.6) Price: $3.02 |
| 25 | 09320-09501 | CUSHION (9X18X10) Price: $2.48 |
