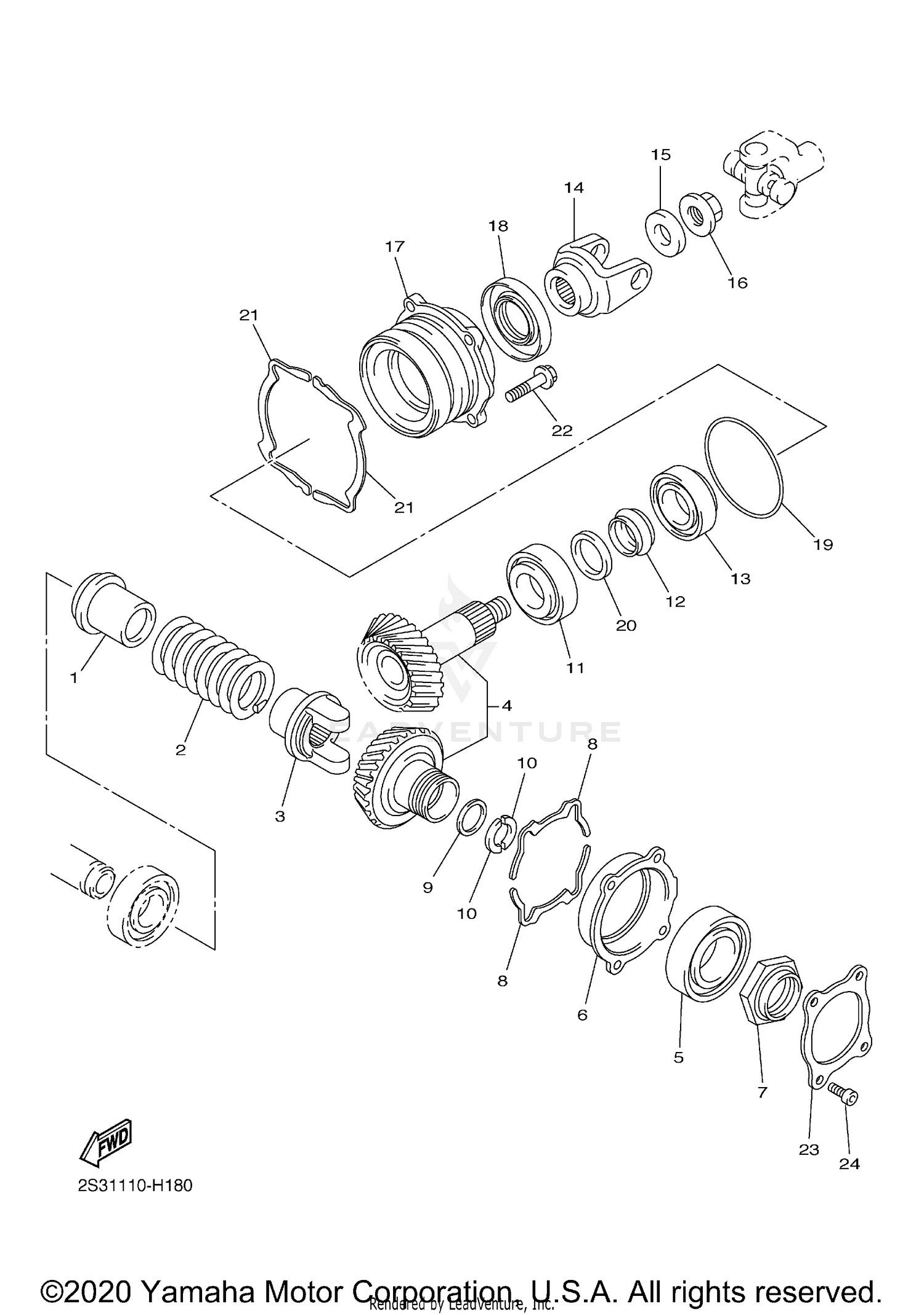

| Ref | Part Number | Description |
|---|
| 1 |
2S3-17524-00-00 |
HOLDER Price: $51.99 |
| 2 |
2S3-17528-00-00 |
SPRING, DAMPER Price: $48.99 |
| 3 |
2S3-17527-00-00 |
CAM, DRIVEN Price: $143.99 |
| 4 |
2S3-Y1754-00-00 |
MIDDLE GEAR COMP. Price: $674.99 |
| 5 |
93306-20903-00 |
BEARING Price: $79.99 |
| 6 |
2S3-15163-00-00 |
HOUSING, BEARING 1 Price: $141.99 |
| 7 |
90179-44001-00 |
NUT Price: $29.99 |
| 9 |
90201-27014-00 |
WASHER, PLATE Price: $36.99 |
| 10 |
2S3-17529-00-00 |
WASHER, THRUST Price: $59.99 |
| 11 |
93332-000A1-00 |
BEARING Price: $64.99 |
| 12 |
2S3-17571-00-00 |
SPACER, EXPANSION Price: $22.99 |
| 13 |
93332-000A0-00 |
BEARING Price: $71.99 |
| 14 |
2S3-17556-01-00 |
YOKE, JOINT Price: $172.99 |
| 15 |
90208-22004-00 |
WASHER, CONICAL SPRING Price: $25.99 |
| 16 |
90179-20015-00 |
NUT Price: $32.99 |
| 17 |
2S3-17551-00-00 |
HOUSING, BEARING Price: $88.99 |
| 18 |
93102-45009-00 |
OIL SEAL Price: $27.99 |
| 19 |
93210-94001-00 |
O-RING Price: $11.49 |
| 20 |
90201-35014-00 |
WASHER, PLATE Price: $28.99 |
| 22 |
95817-08035-00 |
BOLT, FLANGE This part replaces 90105-08108-00. Price: $10.49 |
| 23 |
2S3-17446-00-00 |
PLATE Price: $83.99 |
