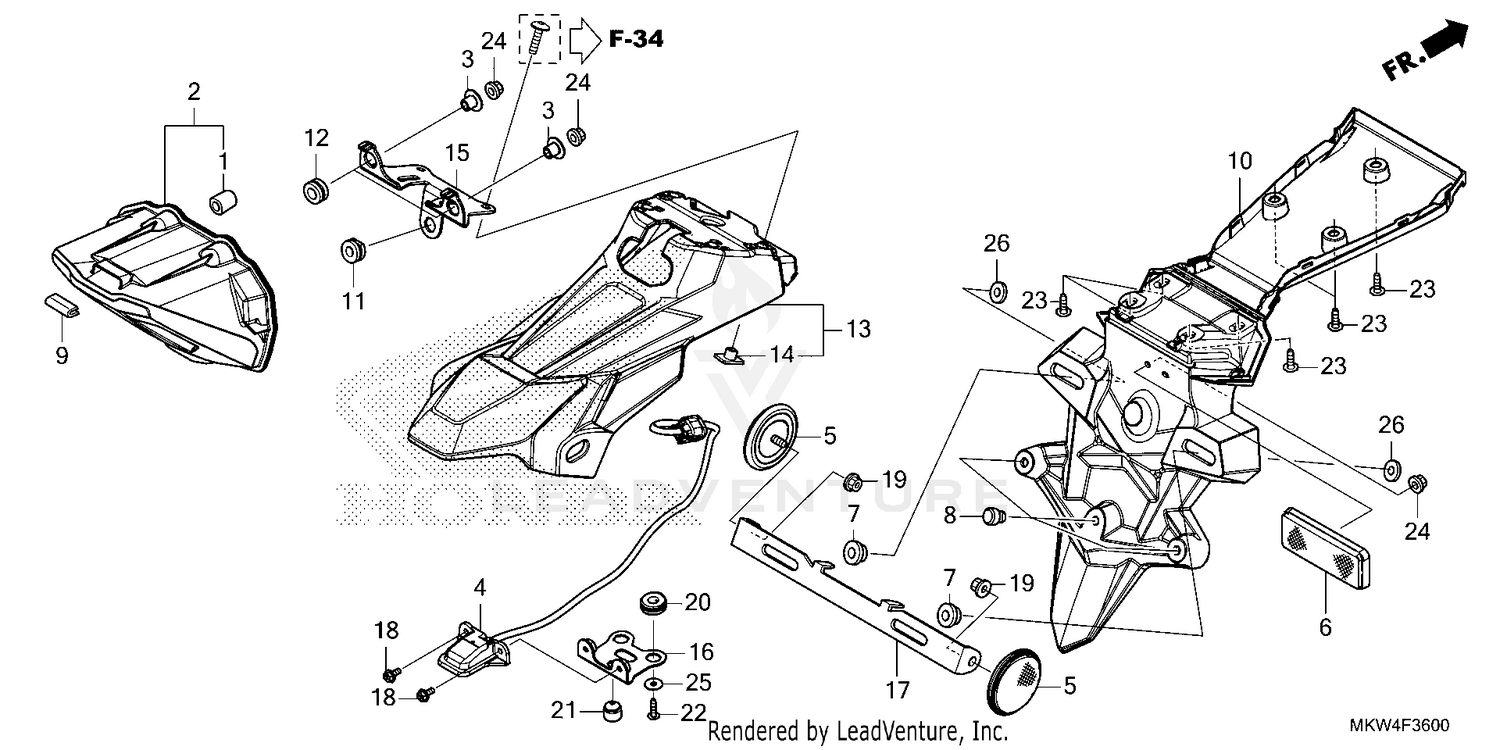

| Ref | Part Number | Description |
|---|
| 1 |
33113-K07-M51 |
PIPE CP Price: $3.45 |
| 2 |
33701-MKV-D03 |
TAILLIGHT UNIT Price: $246.53 |
| 3 |
33705-MKK-D00 |
COLLAR, TAILLIGHT Price: $3.73 |
| 4 |
33720-MKW-D01 |
LIGHT ASSY., LICENSE Price: $106.56 |
| 5 |
33741-HB9-641 |
REFLECTOR, RR. REFLEX (RED) Price: $16.07 |
| 6 |
33741-MS6-921 |
REFLECTOR, REFLEX (STANLEY) Price: $18.36 |
| 7 |
44125-MN5-000 |
COLLAR, FR. WHEEL COVER (FOR RR.) Price: $6.42 |
| 8 |
47117-196-000 |
RUBBER, STOPPER Price: $3.20 |
| 9 |
64121-MER-D00 |
RUBBER, PROTECTOR Price: $1.98 |
| 10 |
80100-MKW-C01 |
FENDER A, RR. This part replaces 80100-MKW-C00. Price: $54.71 |
| 11 |
80101-283-000 |
RUBBER, RR. FENDER CUSHION Price: $6.17 |
| 12 |
80101-310-000 |
RUBBER, RR. FENDER CUSHION Price: $2.33 |
| 13 |
80101-MKW-D00 |
STAY, FENDER A Price: $107.58 |
| 14 |
80104-KJ2-000 |
NUT, RR. FENDER Price: $5.13 |
| 15 |
80106-MKW-D00 |
STAY, TAILLIGHT Price: $14.58 |
| 16 |
80116-MKW-D00 |
BRACKET, LICENSE LIGHT Price: $8.07 |
| 17 |
84700-MKW-C00 |
STAY, REFLECTOR Price: $38.60 |
| 18 |
90008-ZM7-000 |
BOLT (4X10) Price: $2.20 |
| 19 |
90301-473-003 |
NUT, U (6MM) NUT, FLANGE (6MM) Price: $5.11 |
| 20 |
90505-MC4-000 |
GROMMET A, AIR CLEANER HOUSING Price: $3.84 |
| 21 |
90899-MB2-000 |
RUBBER, NUMBER BRACKET CUSHION Price: $4.35 |
| 22 |
93903-24480 |
SCREW, TAPPING (4X16) Price: $0.95 |
| 23 |
93903-25280 |
SCREW, TAPPING (5X12) Price: $1.42 |
| 24 |
94050-05080 |
NUT, FLANGE (5MM) Price: $0.38 |
| 25 |
94103-04700 |
WASHER, PLAIN (4MM) Price: $0.98 |
